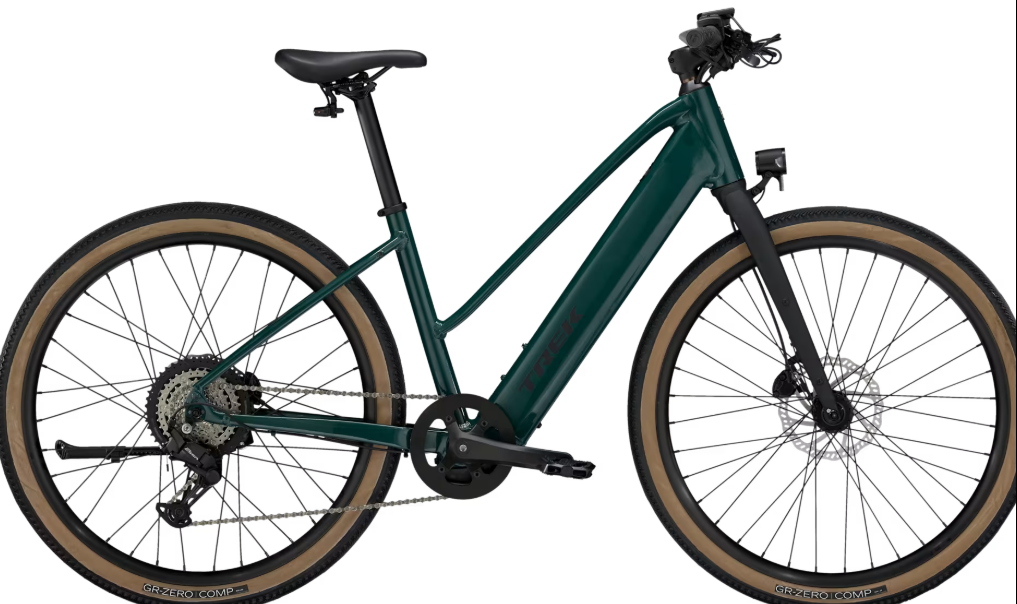

2025 Trek FX+ 1S Midstep – Electric Hybrid Bike
Specifications
|
Specification |
Details |
|
Model |
FX+ 1S Midstep |
|
Vehicle Category |
Electric Hybrid Bike |
|
Application |
City commuting, leisurely rides, urban exploration |
|
Starting Price (2025) |
$2,099.99 USD |
|
Color Options |
Juniper, Dark Star, White |
|
Sizes |
S, M, L |
Frame & Drivetrain
|
Specification |
Details |
|

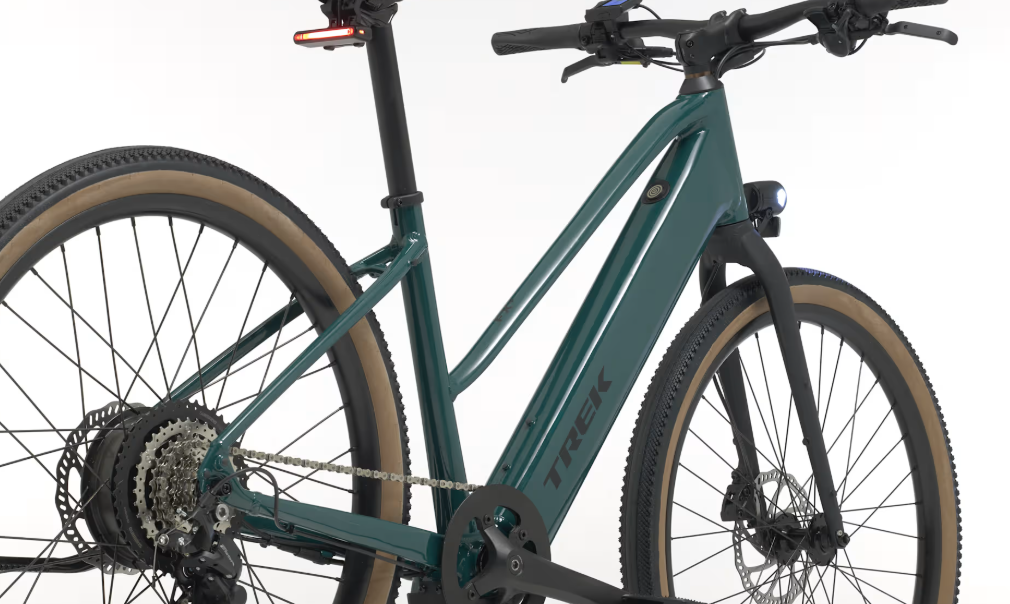

Frame |
Alpha Gold Aluminum, internal cable routing, internal battery, rack & fender mounts, flat mount disc brake, kickstand mount, 144.5mm OLD hub motor spacing |
|
Fork |
Alloy, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm bolt-on skewer |
|
Drivetrain Compatibility |
Shimano, 1x8-speed |
|
Dropouts |
132x5mm QR (F), 144.5mm OLD hub motor spacing (R) |
|

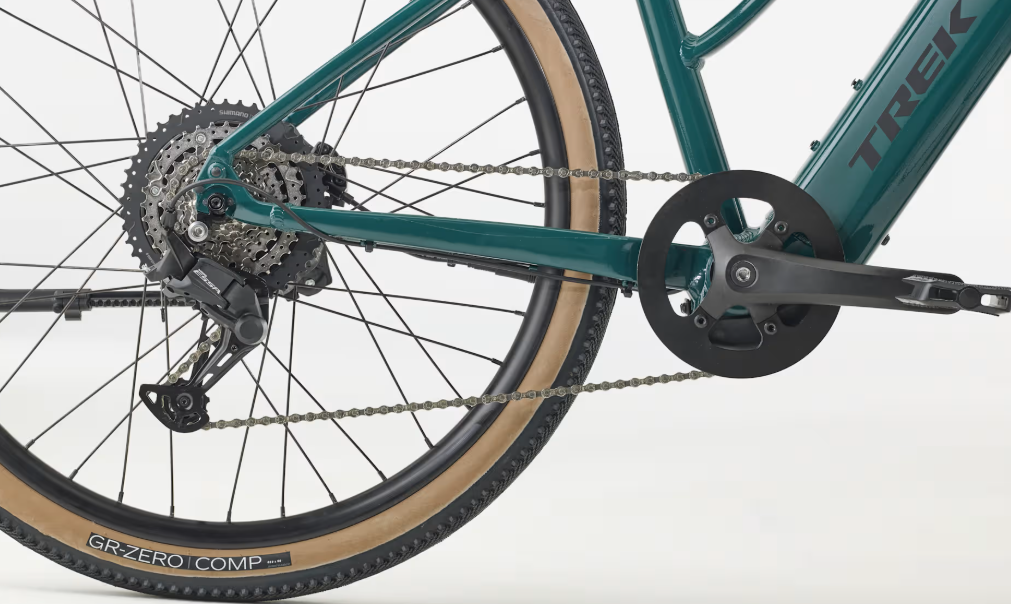

Crank |
Alloy, 40T steel chainring, 170mm length |
|
Chain |
KMC Z8.3 |
|
Rear Derailleur |
Shimano ESSA U2000 |
|
Shifters |
Shimano M315, 8-speed |
|
Cassette |
Shimano HG400, 11-45, 8-speed |
Components & Features
|
Specification |
Details |
|
Seating |
Bontrager Sport |
|
Fuel Type |
Electric (540Wh battery) |
|
Cargo Capacity |
Rack & fender mounts |
|
Wheels/Tyres |
Bontrager GR0 Comp, wire bead, 60 tpi, 650x50mm |
|
Wheel Size |
27.5" in |
|
Brakes |
Rush BH-286 hydraulic disc, 180mm rotor |
|
Brake Levers |
Rush BH-286 hydraulic disc |
|

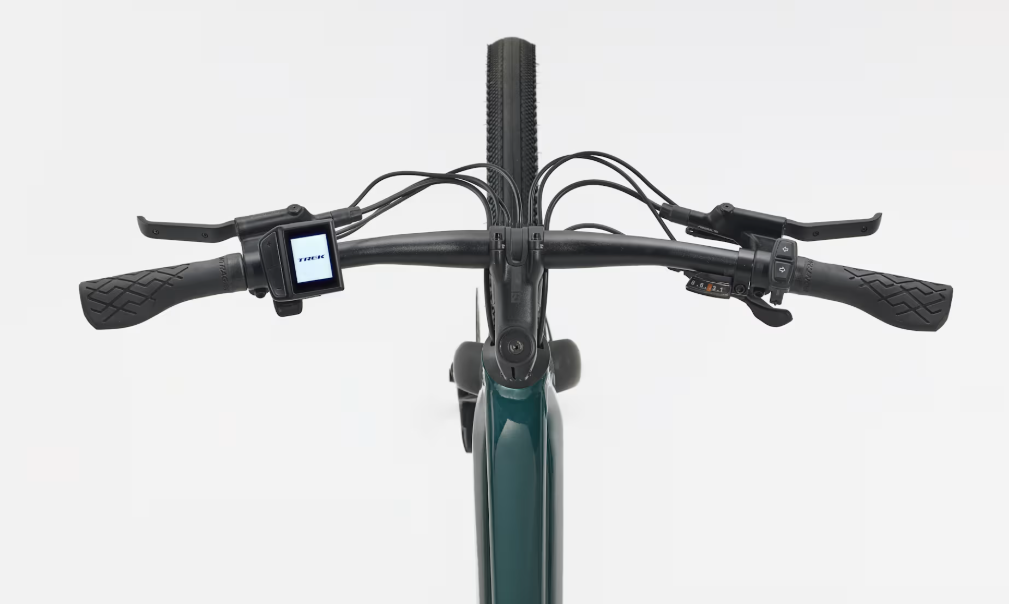

Handlebar |
Bontrager alloy, 31.8mm, 15mm rise, 690mm width (S, M), 720mm width (L) |
|
Stem |
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length (S, M), 90mm length (L) |
|
Headset |
Integrated |
|
Saddle |
Bontrager Sport |
|
Seatpost |
Bontrager alloy, 31.6mm, 12mm offset, 330mm length (S, M), 400mm length (L) |
|
Seatpost Clamp |
Integrated |
|
Grips |
Bontrager XR Endurance Comp, lock-on |
|
Front Hub |
Alloy low-flange w/6-bolt disc, 36h, w/QR |
|
Rear Hub |
Hub drive motor, 36H |
|
Rims |
Alloy double wall, 36h |
|
Pedals |
Bontrager City pedals |
|
Exterior Features |

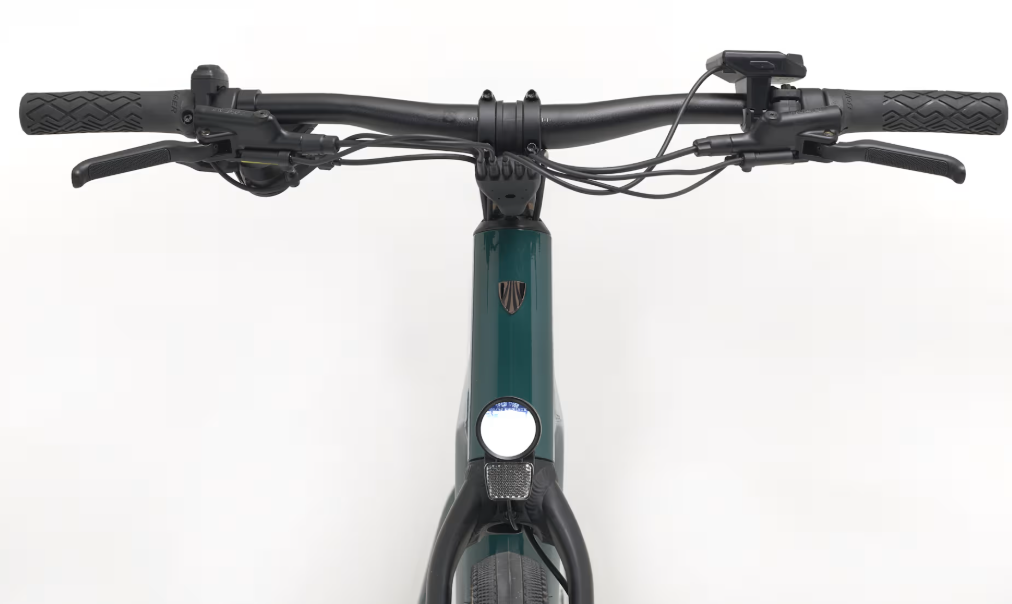

Herrmans MR8 LED headlight (180 lumen, 60 lux), Sate-Lite M-15 rear light with turn signal and brake light function, adjustable length alloy kickstand, rack & fender mounts |
|
Drive Unit |
Hub drive motor, 60 Nm, 500W |
|
Battery |
540Wh, integrated in down tube |
|
Charger |
Trek Easy Mag charger, 2.7A, 54.9V output, 100V-240V AC input |
|
Display |
LCD display |
|
Certifications |
UL2849 compliant |
