Specification

Details

Model

FX+ 1S

Vehicle Category

Electric Hybrid Bike

Application

City commuting, leisurely rides, urban exploration

Starting Price (2025)

$2,099.99 USD

Color Options

Dark Star, Black

Sizes

S, M, L, XL

Specification

Details

Frame

Alpha Gold Aluminum, internal cable routing, internal battery, rack & fender mounts, flat mount disc brake, kickstand mount, 144.5mm OLD hub motor spacing

Fork

Alloy, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm bolt-on skewer

Drivetrain Compatibility

Shimano, 1x8-speed

Dropouts

132x5mm QR (F), 144.5mm OLD hub motor spacing (R)

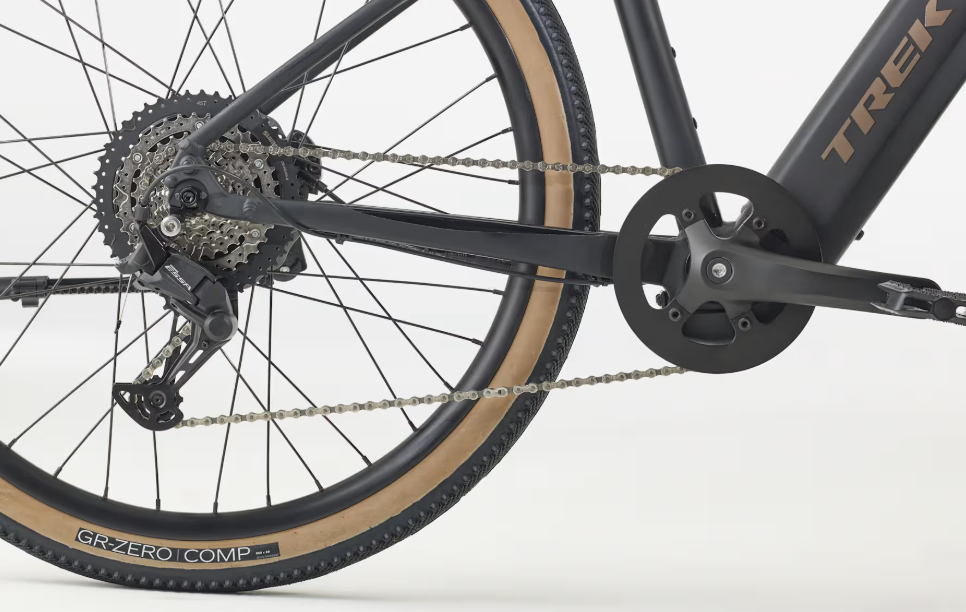

Crank

Alloy, 40T steel chainring, 170mm length

Chain

KMC Z8.3

Rear Derailleur

Shimano ESSA U2000

Shifters

Shimano M315, 8-speed

Cassette

Shimano HG400, 11-45, 8-speed

Specification

Details

Seating

Bontrager Sport

Fuel Type

Electric (540Wh battery)

Cargo Capacity

Rack & fender mounts

Wheels/Tyres

Bontrager GR0 Comp, wire bead, 60 tpi, 650x50mm

Wheel Size

27.5" in

Brakes

Rush BH-286 hydraulic disc, 180mm rotor

Brake Levers

Rush BH-286 hydraulic disc

Handlebar

Bontrager alloy, 31.8mm, 15mm rise, 690mm width (S, M), 720mm width (L, XL)

Stem

Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length (S, M), 90mm length (L, XL)

Headset

Integrated

Saddle

Bontrager Sport

Seatpost

Bontrager alloy, 31.6mm, 12mm offset, 330mm length (S, M), 400mm length (L, XL)

Seatpost Clamp

Integrated

Grips

Bontrager XR Endurance Comp, lock-on

Front Hub

Alloy low-flange w/6-bolt disc, 36h, w/QR

Rear Hub

Hub drive motor, 36H

Rims

Alloy double wall, 36h

Pedals

Bontrager City pedals

Exterior Features

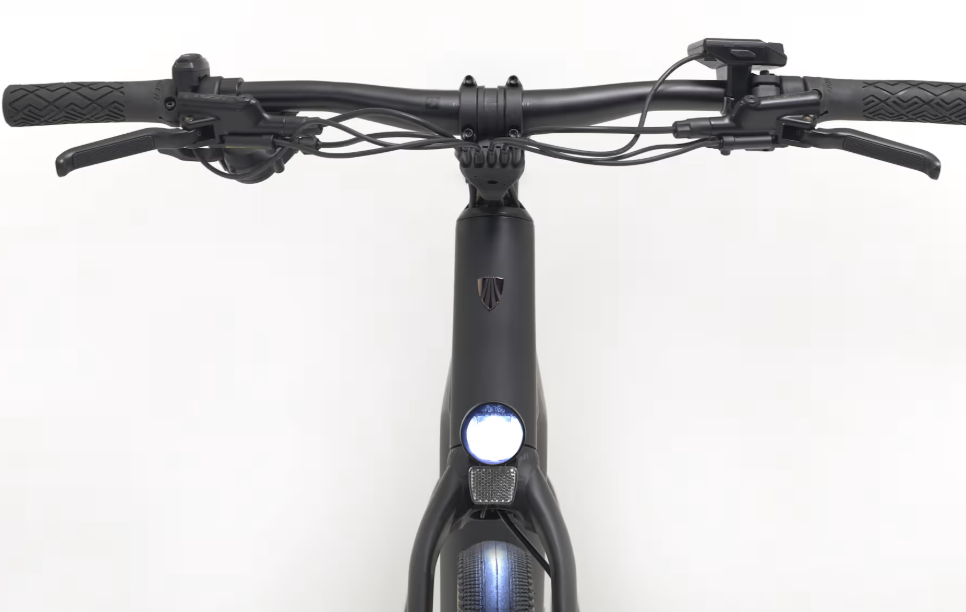

Herrmans MR8 LED headlight (180 lumen, 60 lux), Sate-Lite M-15 rear light with turn signal and brake light function, adjustable length alloy kickstand, rack & fender mounts

Drive Unit

Hub drive motor, 60 Nm, 500W

Battery

540Wh, integrated in down tube

Charger

Trek Easy Mag charger, 2.7A, 54.9V output, 100V-240V AC input

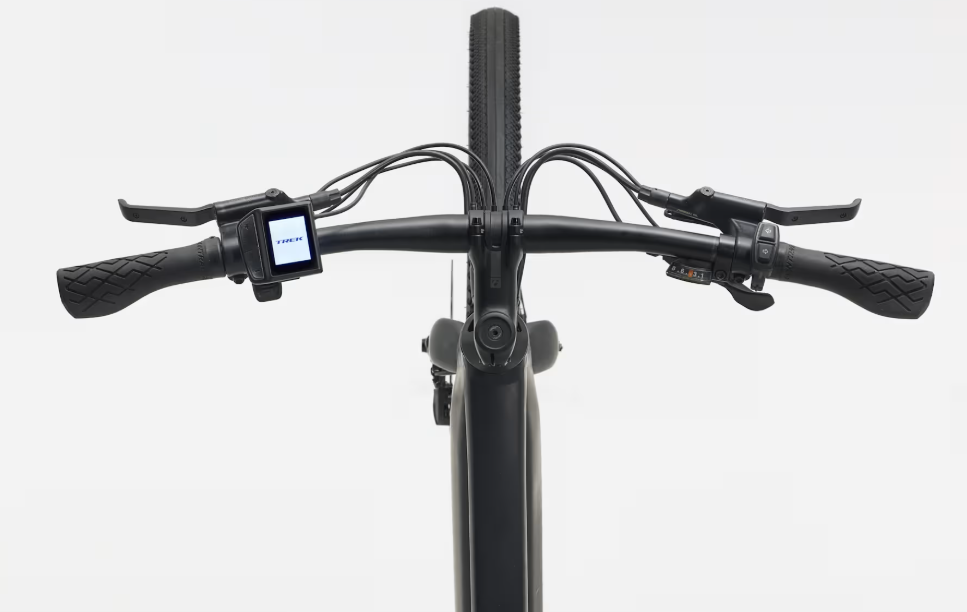

Display

LCD display

Certifications

UL2849 compliant
