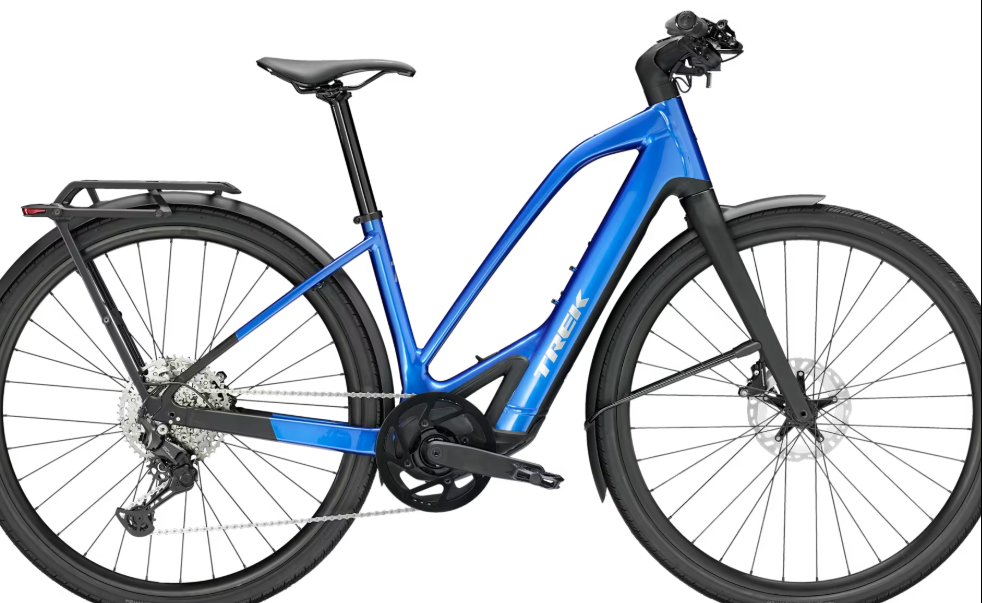

2025 Trek FX+ 7S Midstep – Electric Hybrid Bike
Specifications
|
Specification |
Details |
|
Model |
FX+ 7S Midstep |
|
Vehicle Category |
Electric Hybrid Bike |
|
Application |
Commuting, recreational riding, urban adventures |
|
Starting Price (2025) |
$3,999.99 USD |
|
Color Options |
Alpine Blue - Gloss, Viper Green |
|
Sizes |
XS, S, M, L |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Alpha Gold Aluminum, midstep, internal cable routing, rack and mudguard mounts, flat mount disc, 135x5mm QR, TQ motor integration |
|
Fork |
FX+ carbon, internal brake routing, rack mounts, flat mount disc, 100x12mm thru axle |
|
Drivetrain Compatibility |
Shimano CUES U6000, 10-speed |
|
Dropouts |
135x5mm QR (R), 100x12mm thru axle (F) |
|
Crank |
Prowheel, 40T, narrow-wide, 170mm (XS, S, M), 175mm (L) |
|
Chain |
Shimano LG500, 10-speed |
|
Rear Derailleur |
Shimano CUES U6000, long cage, 36T max cog |
|
Shifters |
Shimano CUES U6000, 10-speed |
|
Cassette |
Shimano CUES LG400, 11-36, 10-speed |
Components & Features
|
Specification |
Details |
|
Seating |
Bontrager Sport, 155mm width |
|
Fuel Type |
Electric |
|
Wheels/Tyres |
Bontrager H2 Comp, tubeless ready, 30 tpi, 700x35c |
|
Wheel Size |
700c |
|
Brakes |
Shimano MT200 hydraulic disc, flat mount, 160mm rotors |
|
Brake Levers |
Shimano MT200 |
|
Handlebar |
Bontrager Satellite Plus IsoZone, alloy, 31.8mm, 15mm rise, 600mm (XS, S), 620mm (M, L) |
|
Stem |
Bontrager Elite, 31.8mm, Blendr compatible, Quad Lock mount, 7 degree, 90mm (XS, S), 100mm (M), 110mm (L) |
|
Headset |
1-1/8in threadless, sealed cartridge bearings |
|
Saddle |
Bontrager Sport, 155mm width |
|
Seatpost |
Bontrager alloy, 27.2mm, 12mm offset, 330mm length |
|
Grips |
Bontrager Satellite IsoZone Plus, lock-on, ergonomic |
|
Front Hub |
Formula DC-20, alloy, 6-bolt, 100x12mm thru axle |
|
Rear Hub |
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR |
|
Rims |
Bontrager Paradigm, tubeless ready, 24mm width, Presta valve |
|
Spokes |
14g stainless steel, black |
|
Pedals |
Wellgo nylon body, alloy cage |
|
Exterior Features |
Rack and mudguard mounts, integrated front and rear lights, DuoTrap S-compatible, internal cable routing, Quad Lock mount with wireless phone charger |
|
Weight |
17.50 kg / 38.58 lbs (size M) |
|
Drive Unit |
TQ-HPR50 mid-drive motor, 50Nm, 250W, Class 1 (20 mph / 32 km/h max assist) |
|
Battery |
360Wh, integrated, removable |
|
Charger |
TQ 4A charger |
