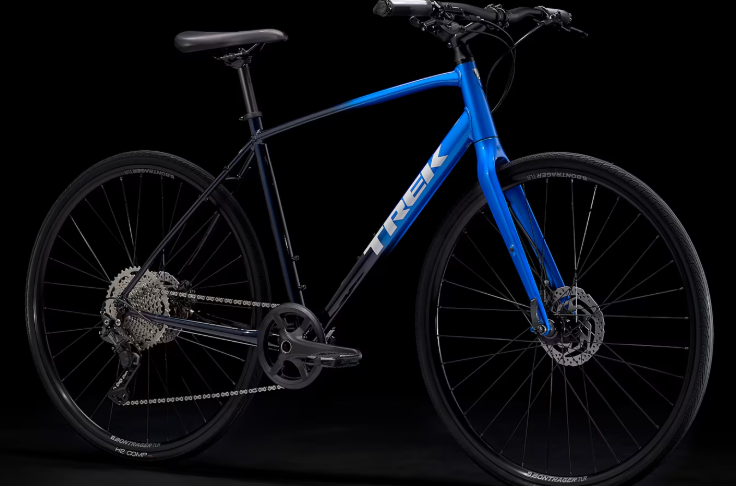

2025 Trek FX 3 Disc Gen 3 – Hybrid Bike
Specifications
|
Specification |
Details |
|
Model |
FX 3 Disc Gen 3 |
|
Vehicle Category |
Hybrid Bike |
|
Application |
Commuting, fitness, pavement and rail trails |
|
Starting Price (2025) |
$599.93 USD (Sale from $1,049.99) |
|
Color Options |
Alpine Blue to Deep Dark Blue Fade, Quicksilver |
|
Sizes |
XS, S, M, L, XL, XXL |
Frame & Drivetrain
|
Specification |
Details |
|

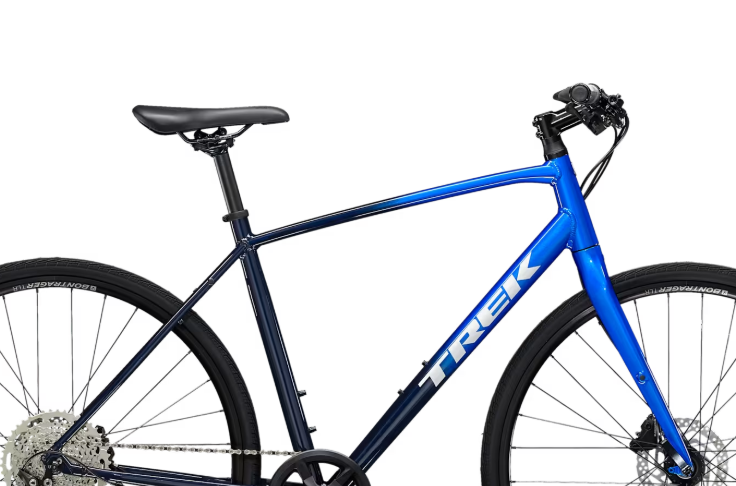

Frame |
Alpha Gold Aluminum, internal cable routing, rack and mudguard mounts, flat mount disc, 142x12mm thru axle, DuoTrap S-compatible |
|
Fork |
FX carbon, internal brake routing, rack and mudguard mounts, flat mount disc, 12x100mm thru axle |
|
Drivetrain Compatibility |
Shimano Deore M5120, 1x10-speed |
|
Dropouts |
142x12mm thru axle (R), 12x100mm thru axle (F) |
|
Crank |
Prowheel, 40T, narrow-wide, 170mm (XS, S, M), 175mm (L, XL, XXL) |
|
Chain |
KMC X10, 10-speed |
|
Rear Derailleur |
Shimano Deore M5120, long cage, 42T max cog |
|
Shifters |
Shimano Deore M4100, 10-speed |
|
Cassette |
Shimano Deore M4100, 11-42, 10-speed |
Components & Features
|
Specification |
Details |
|
Seating |
Bontrager H1, 145mm width |
|
Cargo Capacity |
Rack and mudguard mounts |
|
Wheels/Tyres |
Bontrager H2 Comp, wire bead, 30 tpi, 700x32c |
|
Wheel Size |
700c |
|
Brakes |
Shimano MT201 hydraulic disc, flat mount, 160mm rotors |
|
Brake Levers |
Shimano MT201 |
|

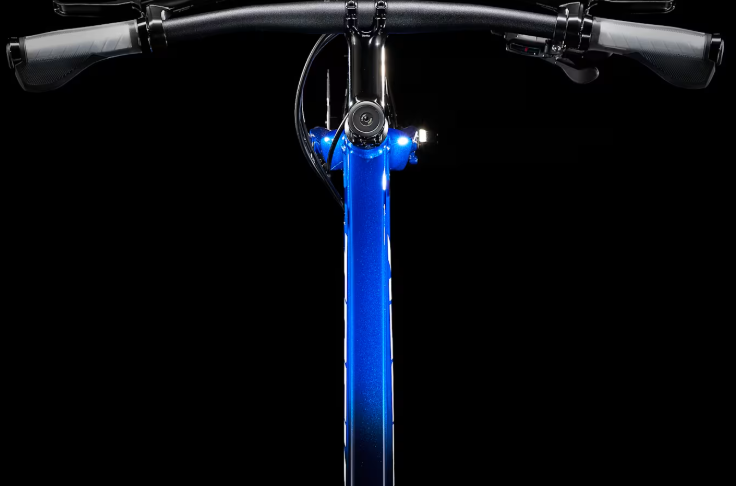

Handlebar |
Bontrager Satellite Plus IsoZone, alloy, 31.8mm, 15mm rise, 600mm (XS, S), 620mm (M, L, XL, XXL) |
|
Stem |
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm (XS, S), 100mm (M), 110mm (L, XL, XXL) |
|
Headset |
1-1/8" threadless, sealed cartridge bearings |
|

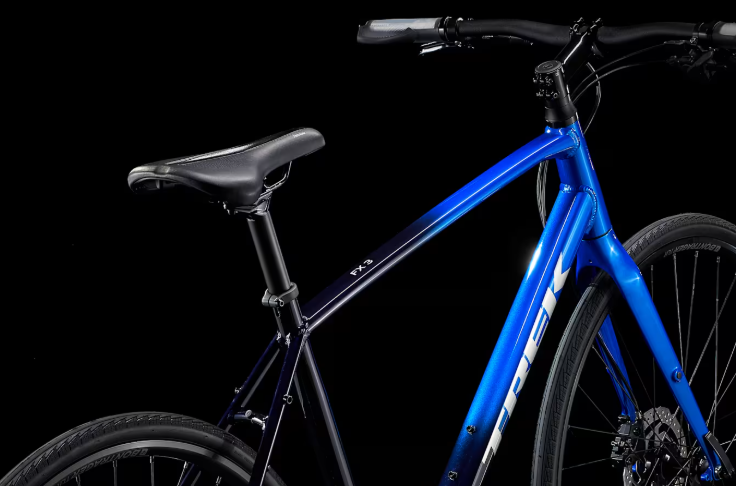

Saddle |
Bontrager H1, 145mm width |
|
Seatpost |
Bontrager alloy, 27.2mm, 12mm offset, 330mm length |
|

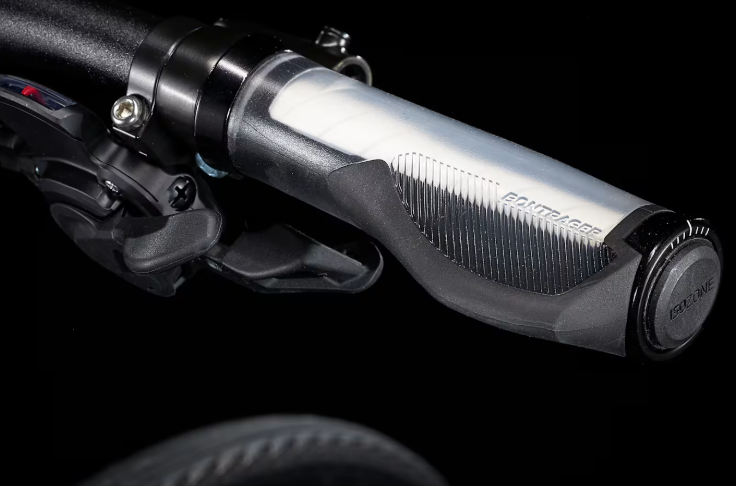

Grips |
Bontrager Satellite IsoZone Plus, lock-on, ergonomic |
|
Front Hub |
Formula DC-20, alloy, 6-bolt, 100x12mm thru axle |
|
Rear Hub |
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 142x12mm thru axle |
|
Rims |
Bontrager Connection, alloy, double-wall, 32-hole, 21mm width, Schrader valve |
|
Spokes |
14g stainless steel, black |
|
Pedals |
Wellgo nylon body, alloy cage |
|
Exterior Features |
Rack and mudguard mounts, DuoTrap S-compatible, internal cable routing |
|
Weight |
11.74 kg / 25.88 lbs (size M) |
