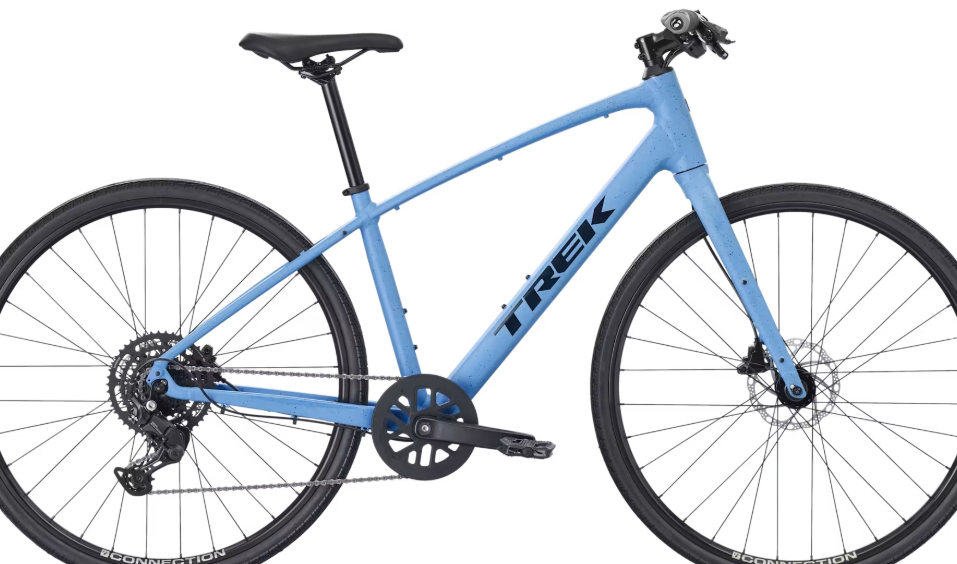

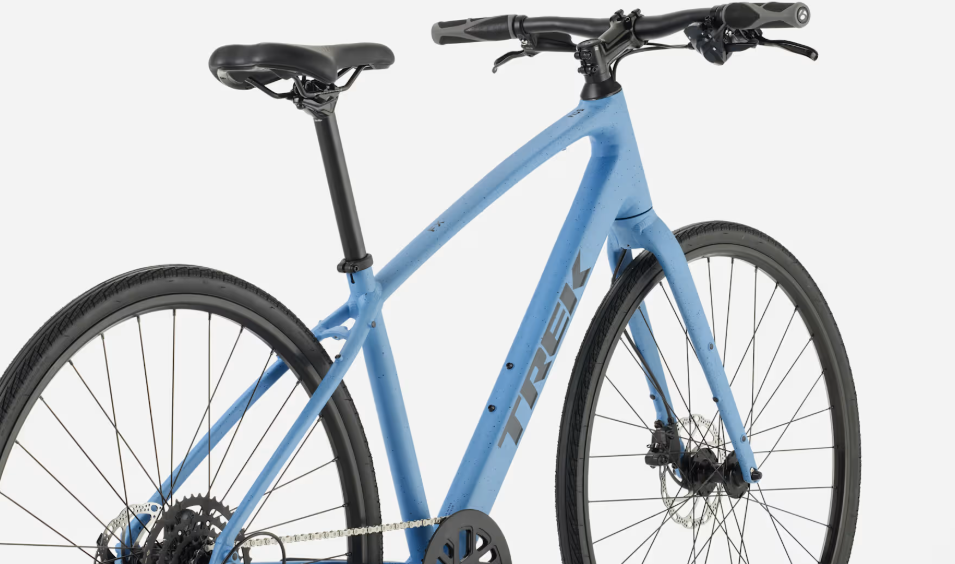

2025 Trek FX 2 Stepover Gen 4 – Hybrid Bike
Specifications
|
Specification |
Details |
|
Model |
FX 2 Stepover Gen 4 |
|
Vehicle Category |
Hybrid Bike |
|
Application |
Commuting, fitness, recreational riding |
|
Starting Price (2025) |
$899.99 USD |
|
Color Options |
Fjord Blue, Viper Red, Lithium Grey |
|
Sizes |
XS, S, M, L, XL |

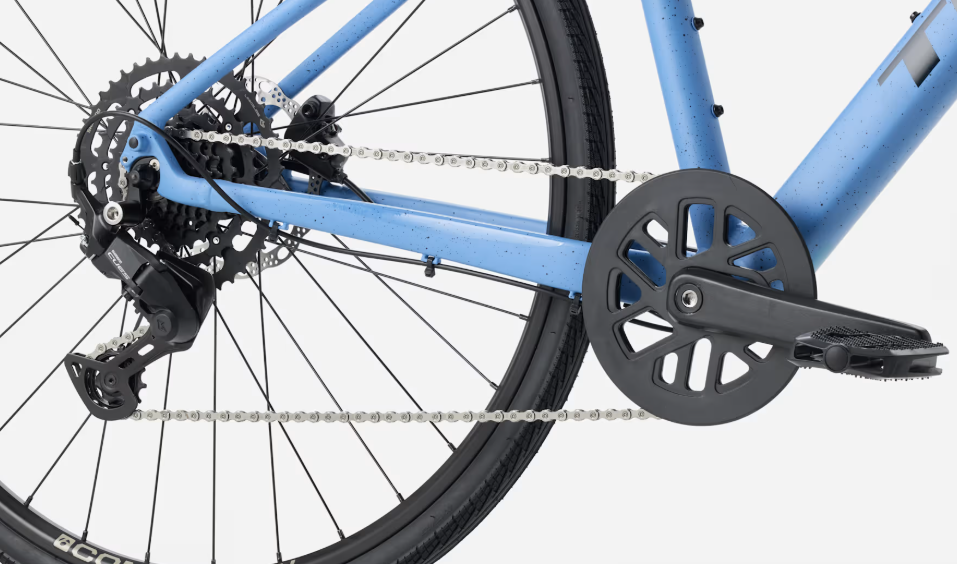

Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Alpha Gold Aluminum, internal cable routing, rack and mudguard mounts, flat mount disc, 135x5mm QR |
|
Fork |
FX Alloy, flat mount disc, rack mounts, 100x5mm QR |
|
Drivetrain Compatibility |
Shimano CUES, 9-speed |
|
Dropouts |
135x5mm QR (R), 100x5mm QR (F) |
|
Crank |
Prowheel, 40T, narrow-wide, 170mm (XS, S, M), 175mm (L, XL) |
|
Chain |
Shimano LG500, 9-speed |
|
Rear Derailleur |
Shimano CUES U6020, long cage, 36T max cog |
|
Shifters |
Shimano CUES U6000, 9-speed |
|
Cassette |
Shimano CUES LG300, 11-36, 9-speed |
Components & Features
|
Specification |
Details |
|
Seating |
Bontrager Sport, 155mm width |
|
Cargo Capacity |
Rack and mudguard mounts |
|
Wheels/Tyres |
Bontrager H2 Comp, wire bead, 30 tpi, 700x35c |
|
Wheel Size |
700c |
|

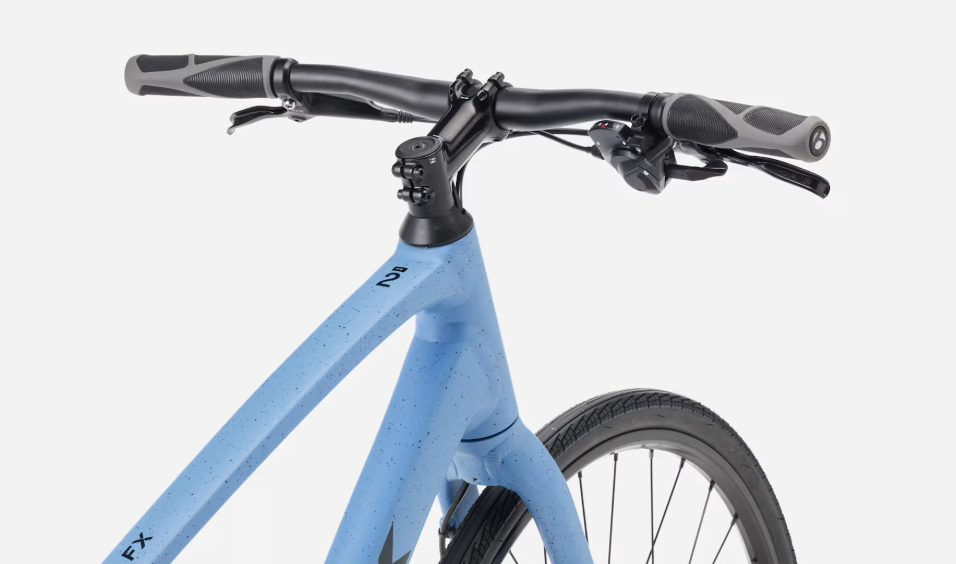

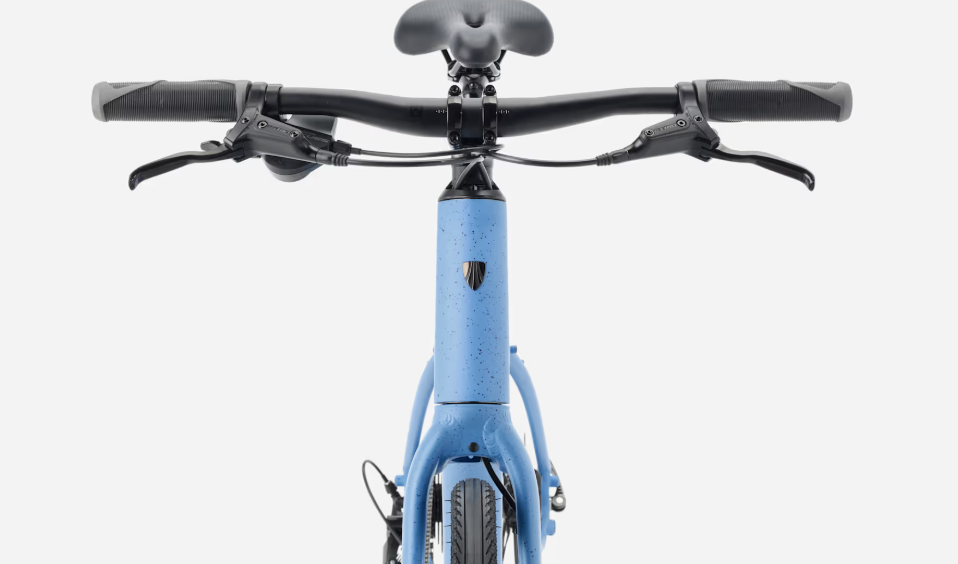

Handlebar |
Bontrager Satellite Plus IsoZone, alloy, 31.8mm, 15mm rise, 600mm (XS, S), 620mm (M, L, XL) |
|
Stem |
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm (XS, S), 100mm (M), 110mm (L, XL) |
|
Headset |
1-1/8in threadless, sealed cartridge bearings |
|
Saddle |
Bontrager Sport, 155mm width |
|
Seatpost |
Bontrager alloy, 27.2mm, 12mm offset, 330mm length |
|
Grips |
Bontrager Satellite IsoZone Plus, lock-on, ergonomic |
|
Front Hub |
Formula DC-20, alloy, 6-bolt, 100x5mm QR |
|
Rear Hub |
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR |
|
Rims |
Bontrager Connection, alloy, double-wall, 32-hole, 21mm width, Schrader valve |
|
Spokes |
14g stainless steel, black |
|
Pedals |
Wellgo nylon body, alloy cage |
|
Exterior Features |
Rack and mudguard mounts, DuoTrap S-compatible, internal cable routing |
|
Weight |
11.95 kg / 26.35 lbs (size M) |
