Specification

Details

Model

FX 2 Disc Gen 3

Vehicle Category

Hybrid Bike

Application

Commuting, fitness, recreational riding

Starting Price (2025)

$499.93 USD (original $799.99)

Color Options

Satin Viper Red, Satin Lithium Grey

Sizes

XS, S, M, L, XL, XXL

Specification

Details

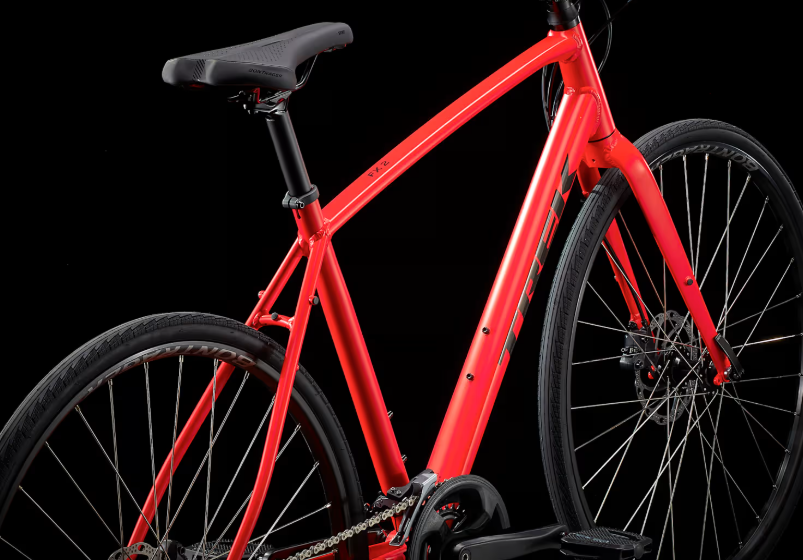

Frame

Alpha Gold Aluminum, DuoTrap S compatible, internal cable routing, rack and fender mounts, 135x5mm QR

Fork

FX Alloy, flat mount disc, rack and fender mounts, 100x5mm QR

Drivetrain Compatibility

Shimano Altus/Acera, 9-speed

Dropouts

100x5mm QR (F), 135x5mm QR (R)

Crank

Forged alloy, 46/30T, 170mm (XS, S, M), 175mm (L, XL, XXL)

Chain

KMC X9, 9-speed

Rear Derailleur

Shimano Acera M3000, Shadow

Front Derailleur

Shimano Altus M2020

Shifters

Shimano Altus M2010, 9-speed

Cassette

Shimano HG200, 11-36, 9-speed

Specification

Details

Seating

Bontrager Sport, 155mm width

Cargo Capacity

Rack and fender mounts, maximum cargo capacity 25kg / 55 lbs

Wheels/Tyres

Bontrager H2 Comp, 700x35c

Wheel Size

700c

Brakes

Tektro HD-R280 hydraulic disc, flat mount, 160mm rotors

Brake Levers

Tektro HD-R280

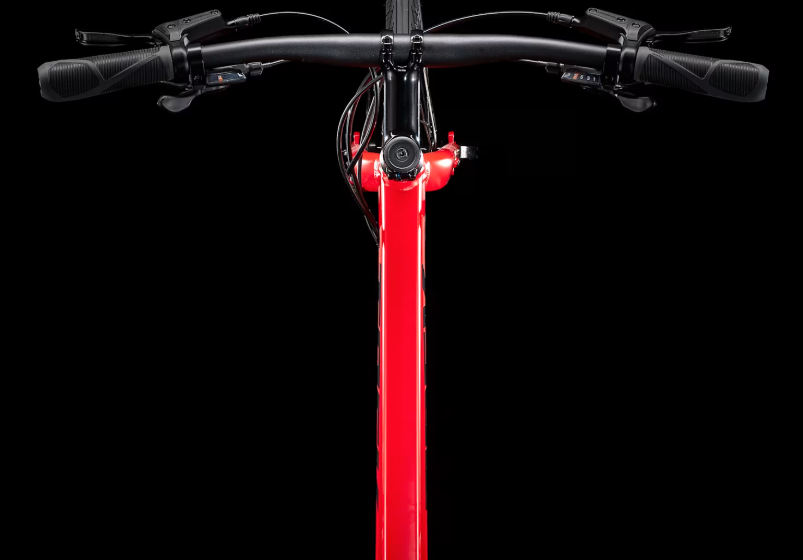

Handlebar

Bontrager alloy, 31.8mm, 15mm rise, 660mm (XS, S), 690mm (M, L, XL, XXL)

Stem

Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm (XS, S), 80mm (M), 90mm (L), 100mm (XL, XXL)

Headset

1-1/8in threadless, sealed cartridge bearings

Saddle

Bontrager Sport, 155mm width

Seatpost

Bontrager alloy, 31.6mm, 12mm offset, 330mm length

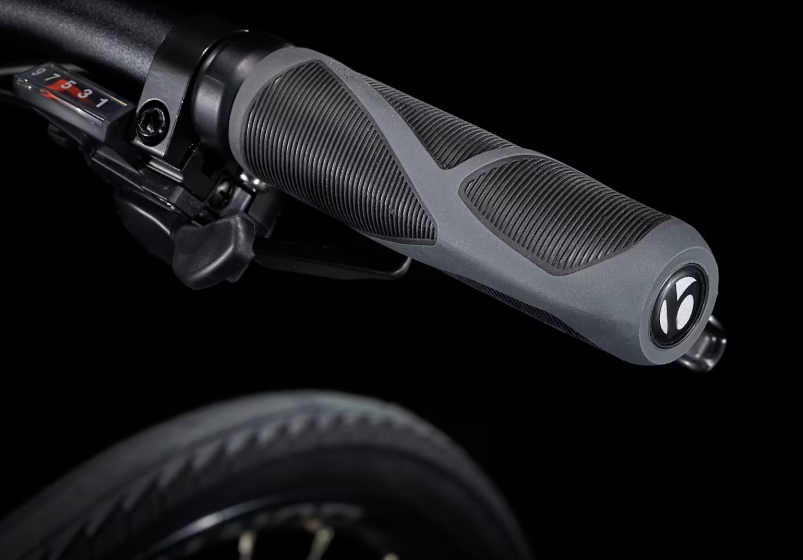

Grips

Bontrager Satellite

Front Hub

Formula DC-20, alloy, 6-bolt, 100x5mm QR

Rear Hub

Formula DC-22, alloy, 6-bolt, 135x5mm QR

Rims

Bontrager Connection, alloy, double-wall, 32-hole, Schrader valve

Spokes

14g stainless steel

Pedals

Wellgo nylon platform

Exterior Features

DuoTrap S compatible, internal cable routing, rack and fender mounts

Weight

12.68 kg / 27.95 lbs (size M)
