Specification

Details

Model

FX 1 Disc Midstep Gen 3

Vehicle Category

Hybrid Bike

Application

Commuting, recreational riding, fitness

Starting Price (2025)

$449.93 USD (original $699.99)

Color Options

Metallic Gunmetal

Sizes

S, M, L

Specification

Details

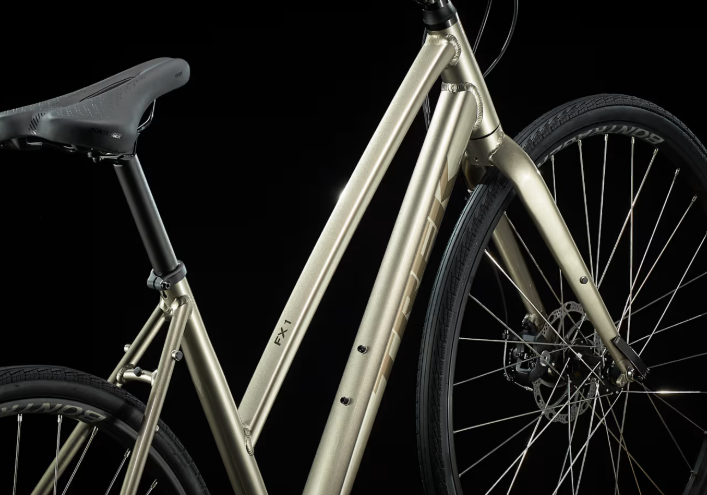

Frame

Alpha Gold Aluminum, midstep, internal cable routing, rack and fender mounts, 135x5mm QR

Fork

FX steel, flat mount disc, 100x5mm QR

Drivetrain Compatibility

Shimano Altus, 3x7-speed

Dropouts

100x5mm QR (F), 135x5mm QR (R)

Crank

Forged alloy, 46/30T, 170mm (S, M), 175mm (L)

Chain

KMC Z7, 7-speed

Rear Derailleur

Shimano Altus M310

Front Derailleur

Shimano Tourney TY510, top-swing

Shifters

Shimano EF500, 7-speed

Cassette

Shimano HG200, 12-32T, 7-speed

Specification

Details

Seating

Bontrager Sport, 155mm width

Cargo Capacity

Rear rack and fender mounts

Wheels/Tyres

Bontrager H2 Comp, 700x35c

Wheel Size

700c

Brakes

Tektro MD-M280, mechanical disc, 160mm rotor (F, R)

Brake Levers

Tektro, mechanical

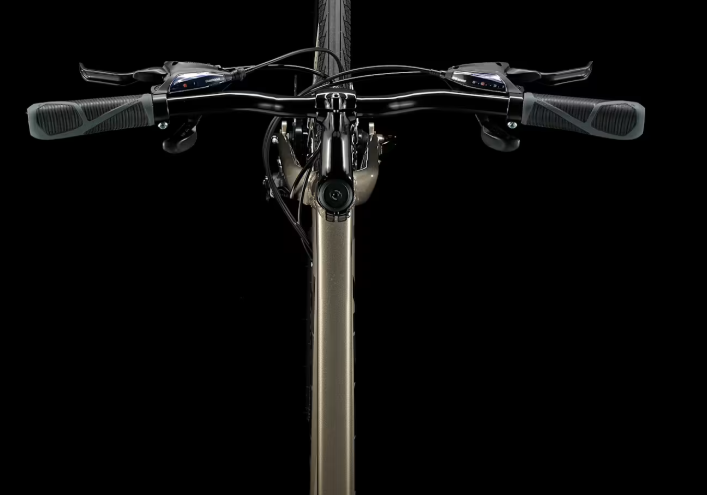

Handlebar

Bontrager alloy, 31.8mm, 15mm rise, 660mm width (S, M), 690mm width (L)

Stem

Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90mm (S, M), 100mm (L)

Headset

1-1/8" threadless, sealed cartridge bearings

Saddle

Bontrager Sport, 155mm width

Seatpost

Bontrager alloy, 31.6mm, 12mm offset, 330mm length (S, M), 400mm length (L)

Seatpost Clamp

Integrated, internal

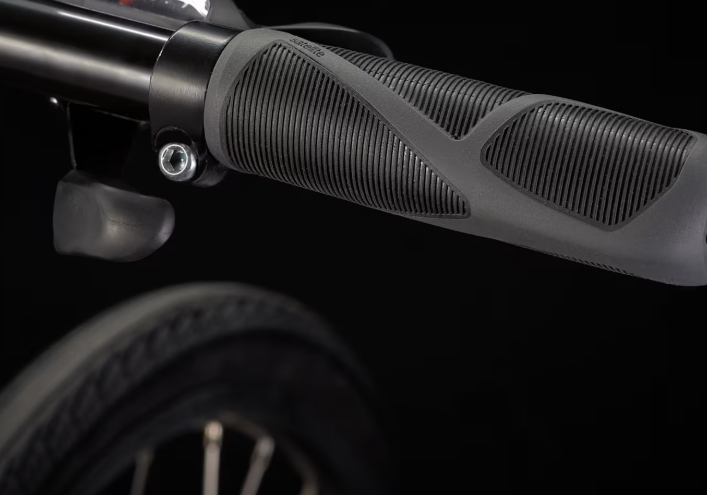

Grips

Bontrager Satellite, ergonomic

Front Hub

Formula DC-20, alloy, 6-bolt, 100x5mm QR

Rear Hub

Formula DC-22, alloy, 6-bolt, Shimano 7-speed freehub, 135x5mm QR

Rims

Bontrager Connection, double-wall, 32-hole, 20mm width, Schrader valve

Spokes

14g stainless steel

Pedals

Wellgo nylon platform

Exterior Features

Midstep frame, rack and fender mounts, kickstand mount
