Specification

Details

Model

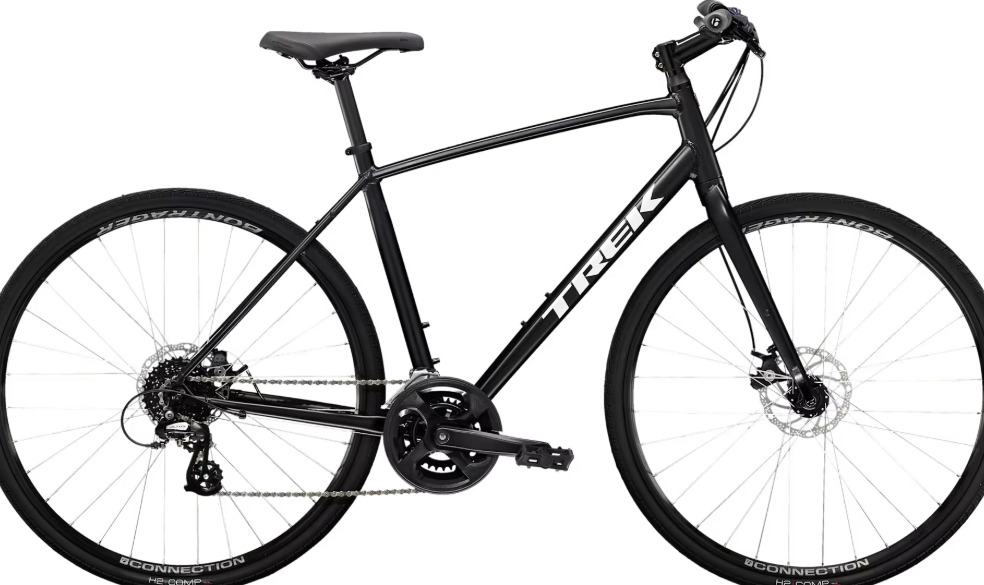

FX 1 Disc Gen 3

Vehicle Category

Hybrid Bike

Application

Commuting, recreational riding, fitness

Starting Price (2025)

$449.93 USD (original $699.99)

Color Options

Satin Trek Black, Viper Red

Sizes

XS, S, M, L, XL, XXL

Specification

Details

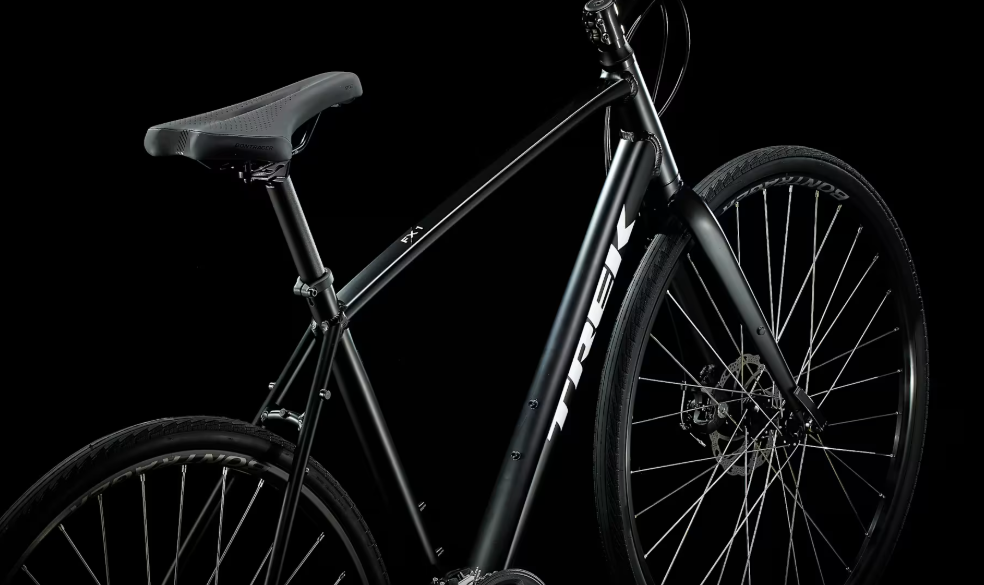

Frame

Alpha Gold Aluminum, DuoTrap S compatible, internal cable routing, rack and fender mounts, 135x5mm QR

Fork

FX steel, threadless steerer, 100x5mm QR

Drivetrain Compatibility

Shimano Altus, 8-speed

Dropouts

5x100mm QR (F), 5x135mm QR (R)

Crank

Forged alloy, 46/30T, 170mm (XS, S, M), 175mm (L, XL, XXL)

Chain

KMC X8, 8-speed

Rear Derailleur

Shimano Altus M310

Front Derailleur

Shimano Tourney TY710

Shifters

Shimano EF500, 8-speed

Cassette

Shimano HG31, 11-34, 8-speed

Specification

Details

Seating

Bontrager Sport, 155mm width

Cargo Capacity

Rack and fender mounts, maximum cargo capacity not specified

Wheels/Tyres

Bontrager Connection, alloy, double-wall, 32-hole, Bontrager H2 Comp, 700x35c

Wheel Size

700c

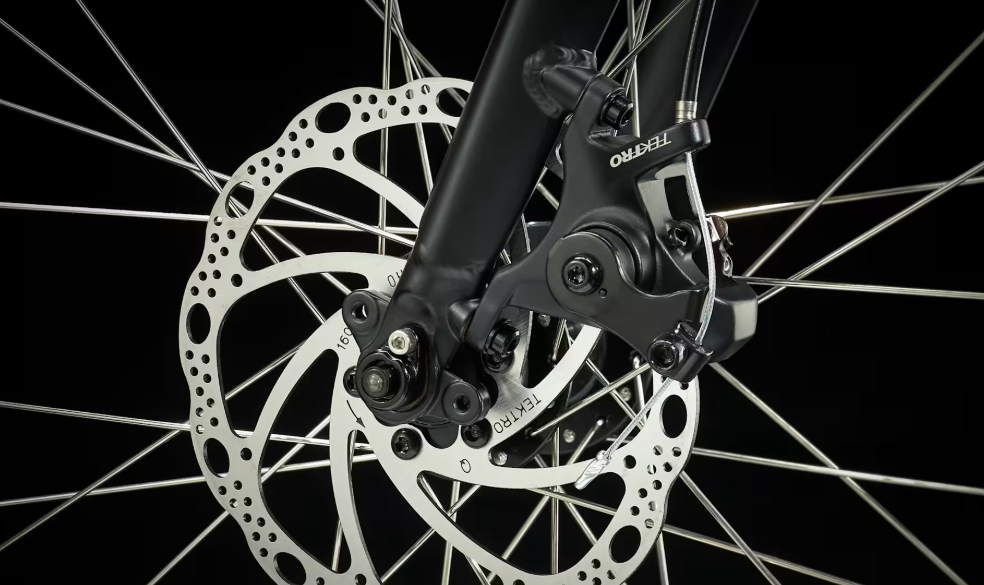

Brakes

Tektro HD-R280, hydraulic disc, 160mm rotors

Brake Levers

Tektro HD-R280

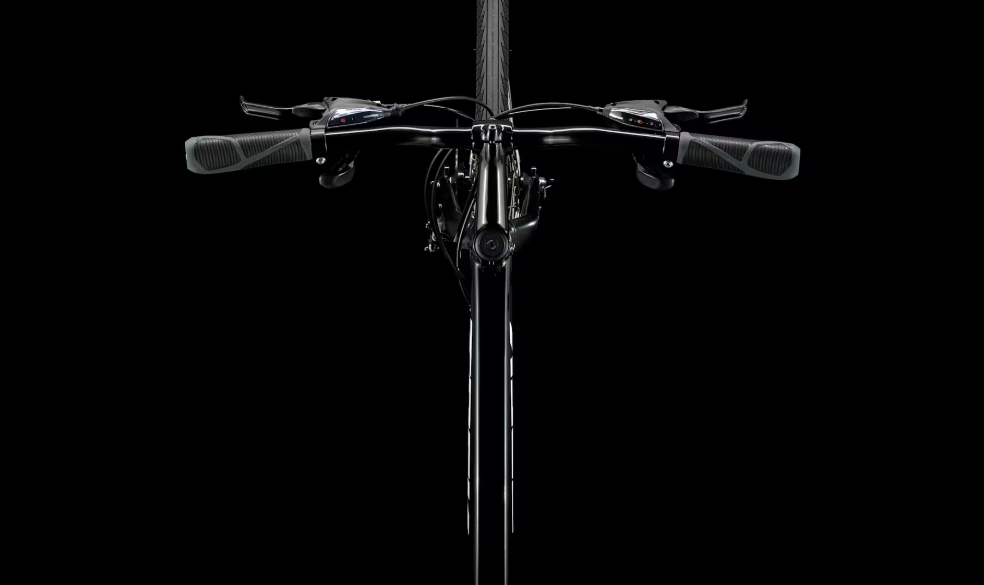

Handlebar

Bontrager alloy, 31.8mm clamp, 15mm rise, 660mm (XS, S, M), 690mm (L, XL, XXL)

Stem

Bontrager alloy, 31.8mm clamp, Blendr compatible, 7 degree rise, 90mm (XS, S), 100mm (M), 110mm (L, XL, XXL)

Headset

1-1/8" threadless, sealed cartridge bearing

Saddle

Bontrager Sport, 155mm width

Seatpost

Bontrager alloy, 31.6mm, 12mm offset, 330mm (XS, S, M), 400mm (L, XL, XXL)

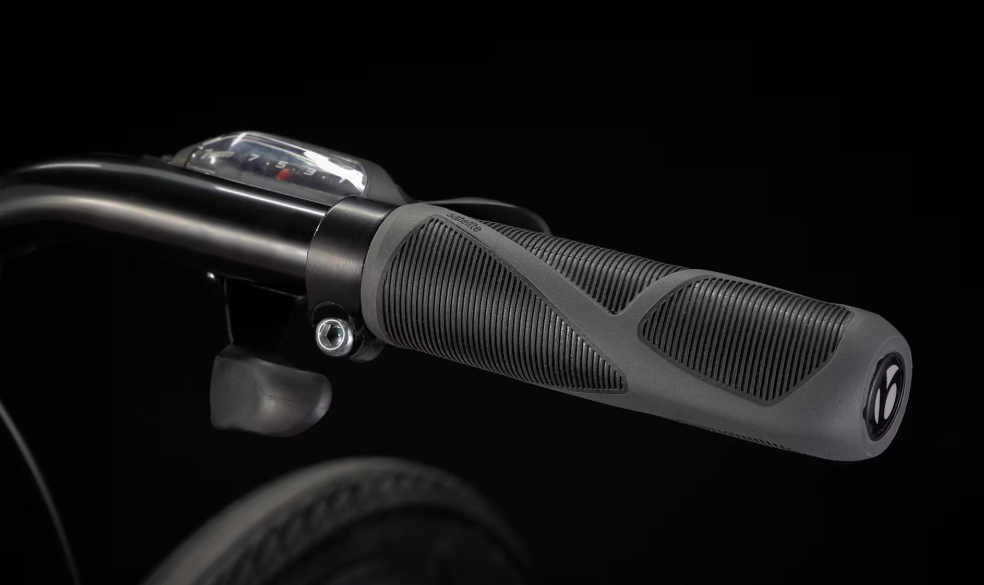

Grips

Bontrager Satellite

Front Hub

Formula DC-20, alloy, 6-bolt, 100x5mm QR

Rear Hub

Formula DC-22, alloy, 6-bolt, 135x5mm QR

Rims

Bontrager Connection, alloy, double-wall, 32-hole

Spokes

14g stainless steel

Pedals

Wellgo nylon platform

Exterior Features

Internal cable routing, rack and fender mounts, DuoTrap S compatible, kickstand mount

Weight

12.7 kg / 27.93 lbs (size M)
