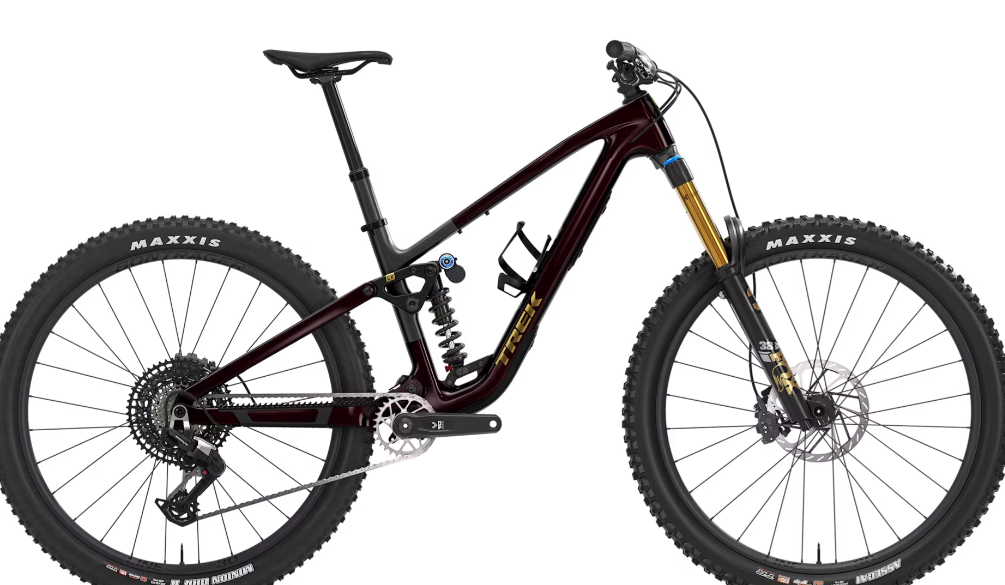

2025 Trek Fuel+ LX 9.8 Eagle 90 Gen 2 – Electric Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Fuel+ LX 9.8 Eagle 90 Gen 2 |
|
Vehicle Category |
Electric Mountain Bike |
|
Application |
Trail riding, enduro, descending |
|
Starting Price (2025) |
$10,399.99 USD |
|
Color Options |
Carbon Smoke/Lithium Grey Marble, Gloss Navy Smoke/Matte Trek Black, Lichen Green/Keswick Green Splatter |
|
Sizes |
S, M, L, XL, XXL |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
OCLV Mountain Carbon, 160mm travel, internal storage, adjustable geometry, guided internal routing, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148 |
|
Fork |
Fox Factory 38, Float EVOL air spring, GRIP2 damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 170mm travel |
|

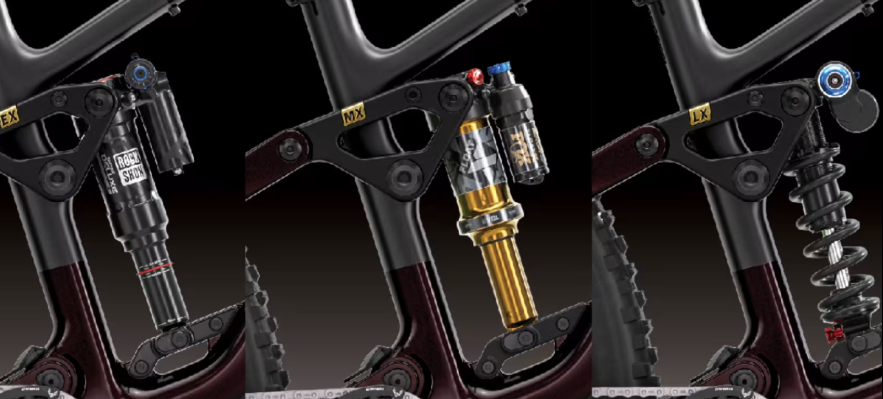

Rear Shock |
Fox DHX2, coil, 230x60mm |
|
Drivetrain Compatibility |
SRAM Eagle 90, 12-speed |
|
Dropouts |
15x110mm thru axle (F), 148x12mm thru axle (R) |
|
Crank |
SRAM GX Eagle, DUB, 32T, 165mm (S), 170mm (M, L, XL, XXL) |
|
Chain |
SRAM GX Eagle, 12-speed |
|
Rear Derailleur |
SRAM GX Eagle |
|
Shifters |
SRAM GX Eagle, 12-speed |
|
Cassette |
SRAM XG-1275, 10-52, 12-speed |
Components & Features
|
Specification |
Details |
|
Seating |
Bontrager Arvada, hollow chromoly rails, 138mm width |
|
Fuel Type |
Electric (TQ HPR60 motor) |
|
Cargo Capacity |

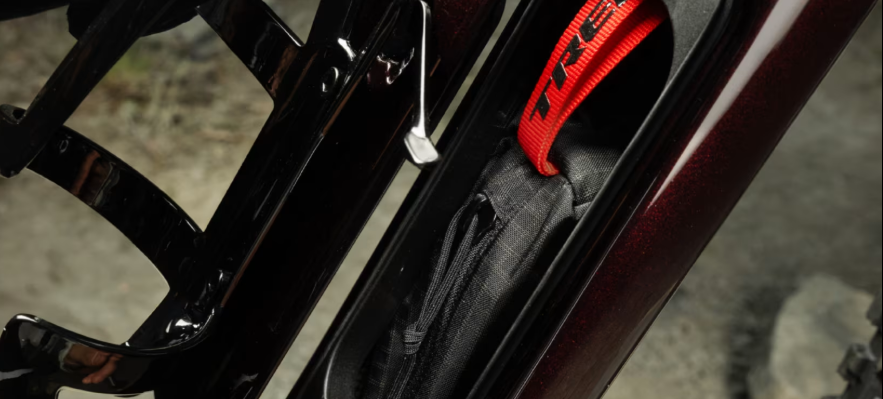

Internal storage, maximum cargo capacity not specified |
|
Wheels/Tyres |
Bontrager Line Comp 30, alloy, Tubeless Ready, 29x2.6" |
|
Wheel Size |
29" in |
|
Brakes |
SRAM Maven Bronze, 4-piston hydraulic disc, 200mm rotors |
|
Brake Levers |
SRAM Maven Bronze |
|
Handlebar |
Bontrager Line, alloy, 35mm, 27.5mm rise, 780mm width |
|
Stem |
Bontrager Line, 35mm, 0 degree, 35mm (S), 45mm (M, L, XL, XXL) |
|
Headset |
Knock Block Integrated, sealed cartridge bearing |
|
Saddle |
Bontrager Arvada, hollow chromoly rails, 138mm width |
|
Seatpost |
Bontrager Line Dropper, 100mm (S), 150mm (M), 170mm (L, XL, XXL), internal routing, 31.6mm |
|
Grips |
Bontrager XR Trail Pro, nylon lock-on |
|
Front Hub |
Bontrager alloy, sealed bearing, 6-bolt, 15x110mm thru axle |
|
Rear Hub |
Bontrager alloy, sealed bearing, 6-bolt, SRAM XD freehub, 148x12mm thru axle |
|
Rims |
Bontrager Line Comp 30, alloy, Tubeless Ready, 30mm width |
|
Spokes |
14g stainless steel, black |
|
Exterior Features |
Internal storage, adjustable geometry, guided internal routing, downtube guard, shuttle guard, ISCG 05, ABP, UDH |
|
Weight |
20.5 kg / 45.19 lbs (size M) |
|
Drive Unit |
TQ HPR60, mid-drive, 60Nm torque |
|
Battery |
580Wh, integrated, removable |
|
Charger |
TQ 4A charger |
|
Display |
TQ LED display, Bluetooth connectivity |
|
Certifications |
UL 2849 (e-bike system) |
