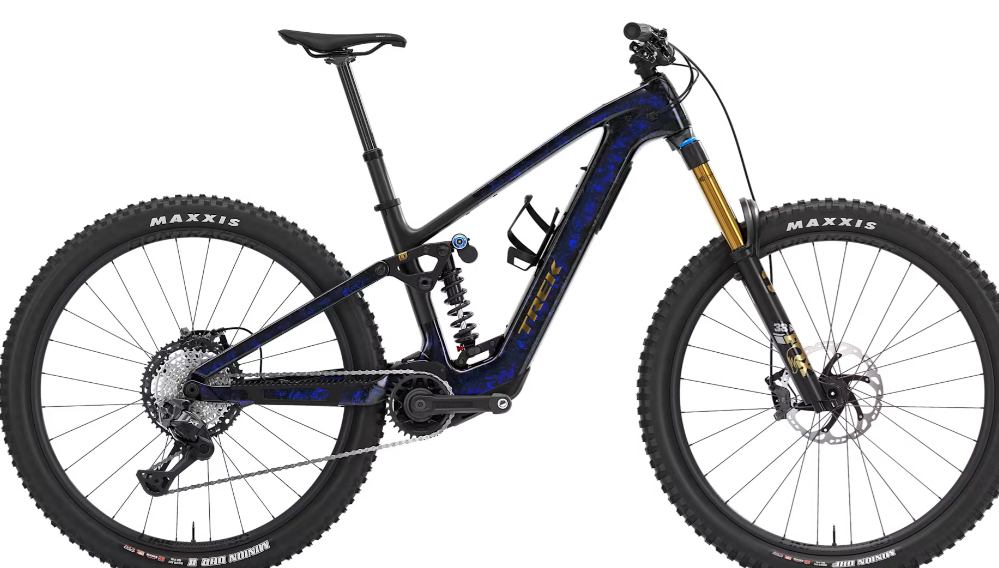

2025 Trek Fuel+ LX 9.8 XT Di2 Gen 2 – Electric Enduro Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Fuel+ LX 9.8 XT Di2 Gen 2 |
|
Vehicle Category |
Electric Enduro Mountain Bike |
|
Application |
Enduro, trail riding, big descents |
|
Starting Price (2025) |
$10,899.99 USD |
|
Color Options |
Gloss Navy Smoke/Matte Trek Black, Bluedark-Black, Greenlight-Green, Grey-Greydark |
|
Sizes |
S, M, L, XL, XXL |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
OCLV Mountain Carbon, internal storage, Mino Link adjustable geometry, Active Braking Pivot (ABP), 160mm travel, 148x12mm thru axle |
|
Fork |
Fox Factory 38, GRIP2 damper, 170mm travel, 44mm offset, 15x110mm thru axle |
|
Rear Shock |
Fox DHX2, coil, 230x62.5mm, 160mm travel |
|
Drivetrain Compatibility |
Shimano XT Di2, 1x12-speed, wireless |
|
Dropouts |
15x110mm thru axle (F), 148x12mm thru axle (R) |
|
Crank |
Shimano XT M8100, 32T, 165mm (S, M, L, XL, XXL) |
|
Chain |
Shimano XT M8100, 12-speed |
|
Rear Derailleur |
Shimano XT M8150 Di2, 12-speed, wireless |
|
Shifters |
Shimano XT M8150 Di2, 12-speed, wireless |
|
Cassette |
Shimano XT M8100, 10-51T, 12-speed |
Components & Features
|
Specification |
Details |
|
Seating |
Bontrager Arvada Pro, 138mm width |
|
Fuel Type |
Electric (TQ HPR60 motor) |
|
Cargo Capacity |
Internal storage (Bontrager BITS bag included), downtube water bottle mounts |
|
Wheels/Tyres |
Bontrager Line Comp 30, tubeless ready, 29x2.50" |
|
Wheel Size |
29" in |
|
Brakes |
Shimano XT M8200, 4-piston hydraulic disc, 200mm rotor (F, R) |
|
Brake Levers |
Shimano XT M8200, hydraulic |
|
Handlebar |
Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 820mm width |
|
Stem |
Bontrager Line Pro, 35mm, 0 degree, 45mm length |
|
Headset |
Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom |
|
Saddle |
Bontrager Arvada Pro, 138mm width |
|
Seatpost |
Fox Transfer Neo, 100mm travel (S), 150mm travel (M), 170mm travel (L), 200mm travel (XL, XXL), 34.9mm, wireless |
|
Seatpost Clamp |
Integrated, internal |
|
Grips |
Bontrager XR Trail Pro, nylon lock-on |
|
Front Hub |
Bontrager alloy, sealed bearing, 6-bolt, 15x110mm thru axle |
|
Rear Hub |
Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano MicroSpline freehub, 148x12mm thru axle |
|
Rims |
Bontrager Line Comp 30, tubeless ready, 29mm width |
|
Spokes |
14g stainless steel |
|
Exterior Features |
Internal storage (Bontrager BITS bag included), Mino Link adjustable geometry, Active Braking Pivot (ABP), Knock Block, downtube water bottle mounts |
|

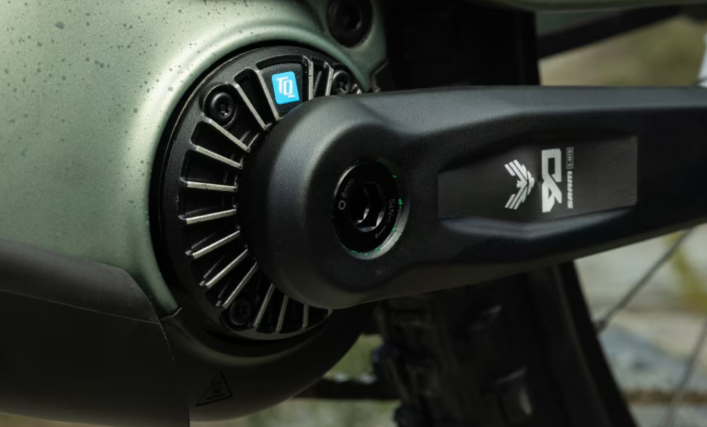

Motor |
TQ HPR60, 60Nm, 300W peak power, 20mph/32kph max assist (Class 1) |
|
Battery |
TQ 580Wh, fully integrated |
|
Controller |
TQ LED display, 3 assist modes (Eco, Mid, High), walk assist |
|
Charger |
TQ 4A charger |
