Specification

Details

Model

Fuel+ LX 9.8  Di2 Gen 2

Vehicle Category

Electric Enduro Mountain Bike

Application

Enduro, trail riding, big descents

Starting Price (2025)

$10,899.99 USD

Color Options

Gloss Navy Smoke/Matte Trek Black, Bluedark-Black, Greenlight-Green, Grey-Greydark

Sizes

S, M, L, XL, XXL

Specification

Details

Frame

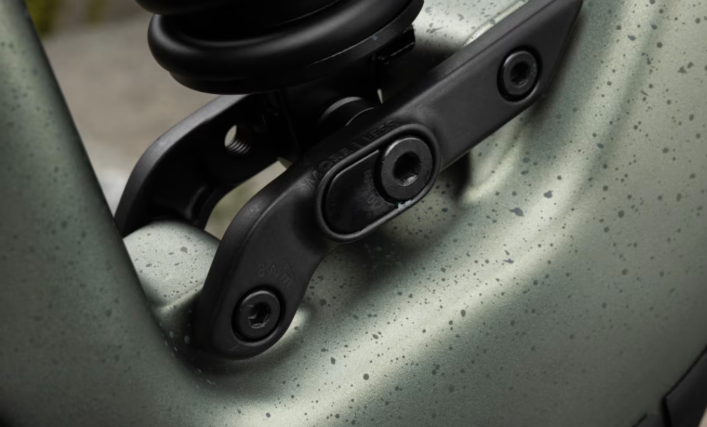

OCLV Mountain Carbon, internal storage, Mino Link adjustable geometry, Active Braking Pivot (ABP), 160mm travel, 148x12mm thru axle

Fork

Fox Factory 38, GRIP2 damper, 170mm travel, 44mm offset, 15x110mm thru axle

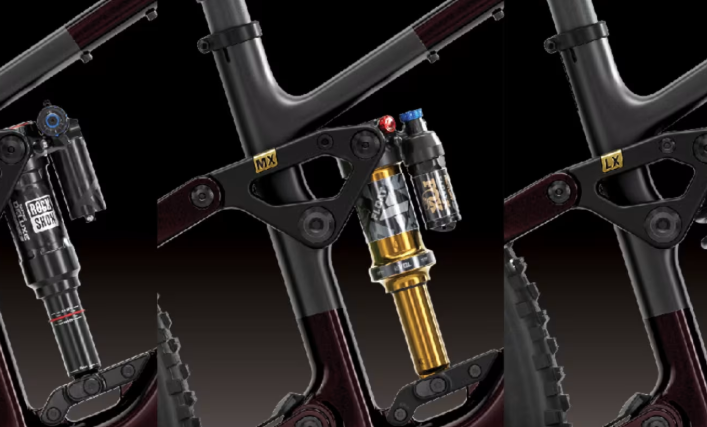

Rear Shock

Fox DHX2, coil, 230x62.5mm, 160mm travel

Drivetrain Compatibility

Shimano  Di2, 1x12-speed, wireless

Dropouts

15x110mm thru axle (F), 148x12mm thru axle (R)

Crank

Shimano  M8100, 32T, 165mm (S, M, L, XL, XXL)

Chain

Shimano  M8100, 12-speed

Rear Derailleur

Shimano  M8150 Di2, 12-speed, wireless

Shifters

Shimano  M8150 Di2, 12-speed, wireless

Cassette

Shimano  M8100, 10-51T, 12-speed

Specification

Details

Seating

Bontrager Arvada Pro, 138mm width

Fuel Type

Electric (TQ HPR60 motor)

Cargo Capacity

Internal storage (Bontrager BITS bag included), downtube water bottle mounts

Wheels/Tyres

Bontrager Line Comp 30, tubeless ready, 29x2.50"

Wheel Size

29" in

Brakes

Shimano  M8200, 4-piston hydraulic disc, 200mm rotor (F, R)

Brake Levers

Shimano  M8200, hydraulic

Handlebar

Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 820mm width

Stem

Bontrager Line Pro, 35mm, 0 degree, 45mm length

Headset

Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom

Saddle

Bontrager Arvada Pro, 138mm width

Seatpost

Fox Transfer Neo, 100mm travel (S), 150mm travel (M), 170mm travel (L), 200mm travel (XL, XXL), 34.9mm, wireless

Seatpost Clamp

Integrated, internal

Grips

Bontrager XR Trail Pro, nylon lock-on

Front Hub

Bontrager alloy, sealed bearing, 6-bolt, 15x110mm thru axle

Rear Hub

Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano MicroSpline freehub, 148x12mm thru axle

Rims

Bontrager Line Comp 30, tubeless ready, 29mm width

Spokes

14g stainless steel

Eerior Features

Internal storage (Bontrager BITS bag included), Mino Link adjustable geometry, Active Braking Pivot (ABP), Knock Block, downtube water bottle mounts

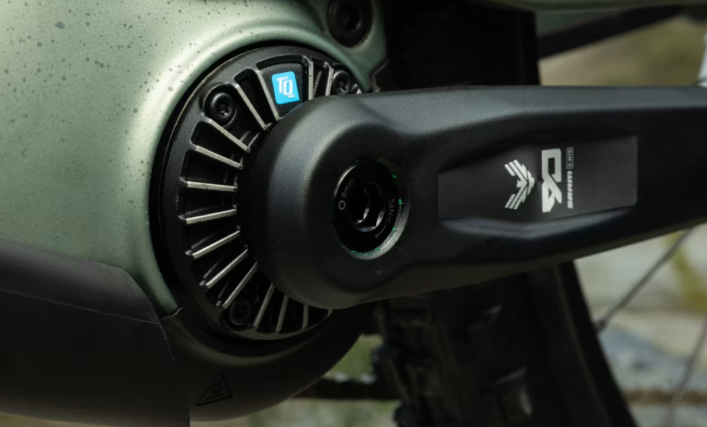

Motor

TQ HPR60, 60Nm, 300W peak power, 20mph/32kph max assist (Class 1)

Battery

TQ 580Wh, fully integrated

Controller

TQ LED display, 3 assist modes (Eco, Mid, High), walk assist

Charger

TQ 4A charger
