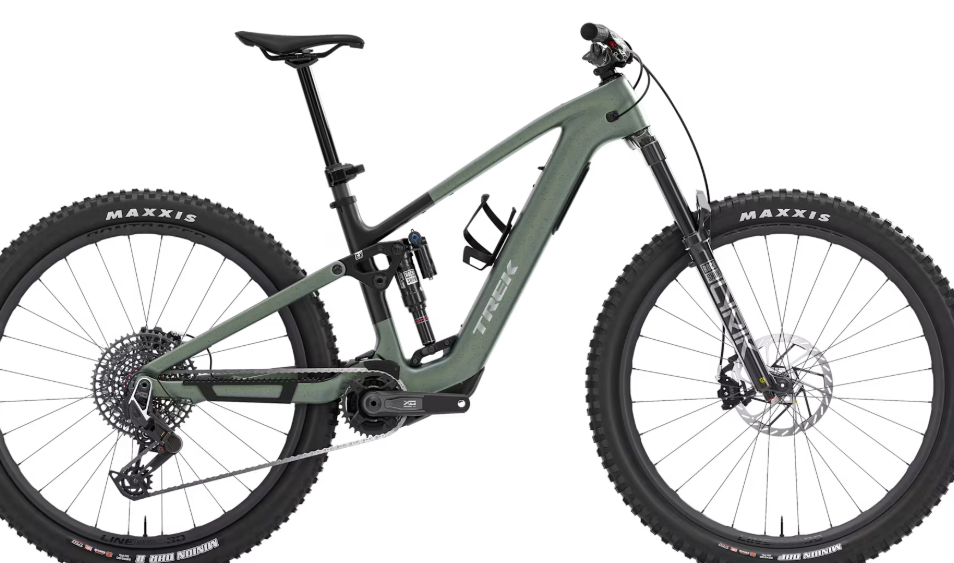

2025 Trek Fuel+ EX 9.9 X0 AXS Gen 2 – Electric Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Fuel+ EX 9.9 X0 AXS Gen 2 |
|
Vehicle Category |
Electric Mountain Bike |
|
Application |
Trail riding, enduro, all-mountain |
|
Starting Price (2025) |
$11,499.99 USD |
|
Color Options |
Lichen Green/Keswick Green Splatter, Gloss Navy Smoke/Matte Trek Black |
|
Sizes |
S, M, L, XL, XXL |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
OCLV Mountain Carbon, 145mm travel, internal routing, adjustable geometry, BSA 73, UDH, Boost148 |
|
Fork |
RockShox Lyrik Ultimate, Charger 3 RC2 damper, DebonAir+ spring, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 150mm travel |
|

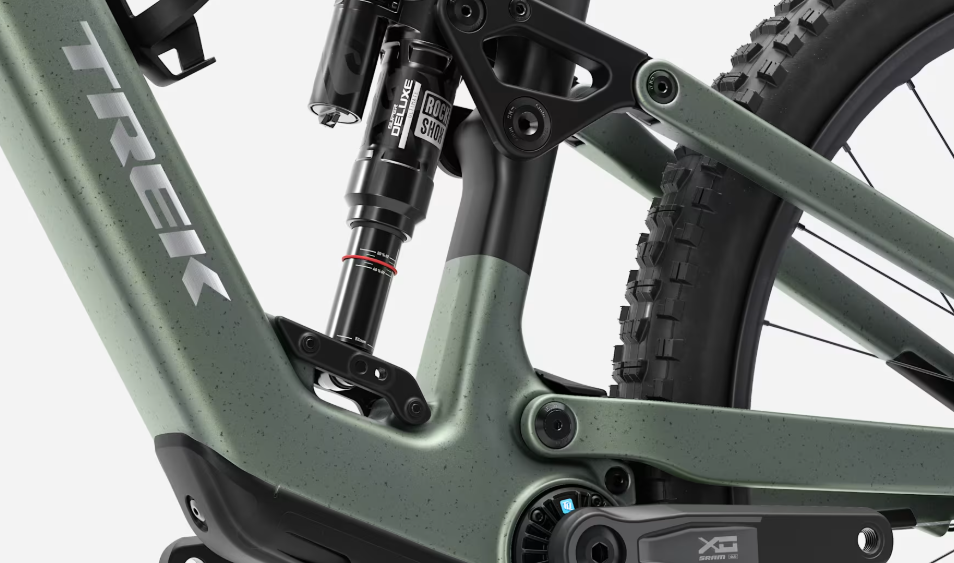

Rear Shock |
RockShox Deluxe Ultimate RC2T, 230x57.5mm |
|
Drivetrain Compatibility |
SRAM X0 AXS T-Type, 12-speed |
|
Dropouts |
15x110mm thru axle (F), 148x12mm thru axle (R) |
|
Crank |
SRAM X0 Eagle, DUB, 32T, 165mm (S), 170mm (M, L), 175mm (XL, XXL) |
|
Chain |
SRAM X0 T-Type, 12-speed |
|

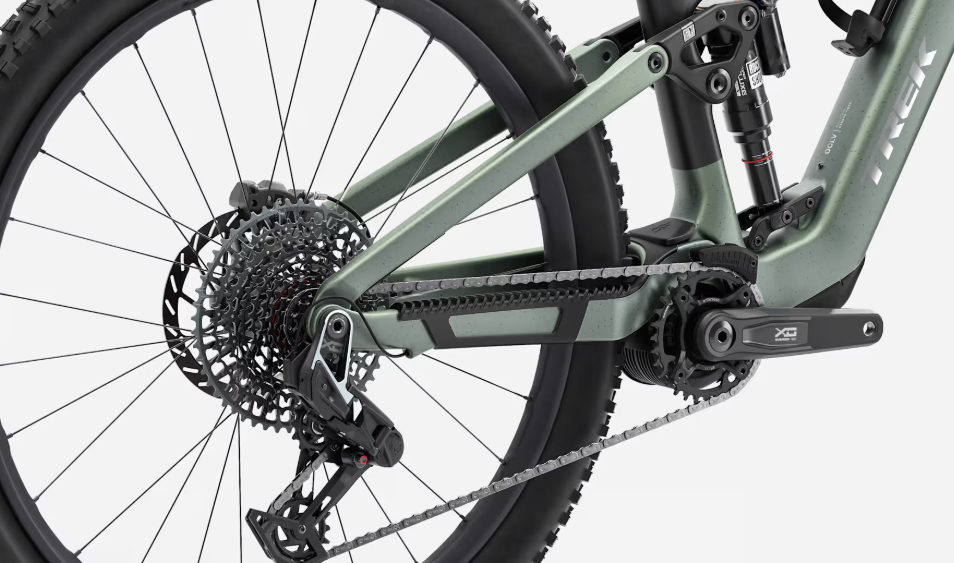

Rear Derailleur |
SRAM X0 Eagle AXS T-Type |
|
Shifters |
SRAM AXS Pod Ultimate, 12-speed |
|
Cassette |
SRAM XS-1295 T-Type, 10-52, 12-speed |
Components & Features
|
Specification |
Details |
|
Seating |
Bontrager Arvada, stainless steel rails, 138mm width |
|
Fuel Type |
Electric (TQ HPR60 motor) |
|
Wheels/Tyres |
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 29x2.5" |
|
Wheel Size |
29" in |
|
Brakes |
SRAM Code Silver, 4-piston hydraulic disc, 200mm front/180mm rear rotors |
|
Brake Levers |
SRAM Code Silver |
|
Handlebar |
Bontrager Line, OCLV Carbon, 35mm, 27.5mm rise, 750mm width |
|
Stem |
Bontrager Line Pro, 35mm, 0 degree, 35mm (S), 45mm (M, L, XL, XXL) |
|
Headset |
Knock Block Integrated, sealed cartridge bearing |
|
Saddle |
Bontrager Arvada, stainless steel rails, 138mm width |
|
Seatpost |
RockShox Reverb AXS, wireless, 100mm (S), 150mm (M, L), 170mm (XL, XXL), 31.6mm |
|
Grips |
Bontrager XR Trail Elite, nylon lock-on |
|
Front Hub |
Bontrager alloy, sealed bearing, 6-bolt, 15x110mm thru axle |
|
Rear Hub |
Bontrager alloy, sealed bearing, 6-bolt, SRAM XD freehub, 148x12mm thru axle |
|
Rims |
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 29mm width |
|
Spokes |
14g stainless steel, black |
|
Exterior Features |
Internal routing, adjustable geometry, UDH, Knock Block, Mino Link |
|
Drive Unit |
TQ HPR60, 60Nm torque, Class 1 (20 mph max assist) |
|
Battery |
TQ 580Wh, integrated |
|
Charger |
TQ 4A charger |
|
Display |
TQ LED display with Bluetooth and ANT+ connectivity |
|
Certifications |
UL 2849 (system certification for e-bike safety) |
