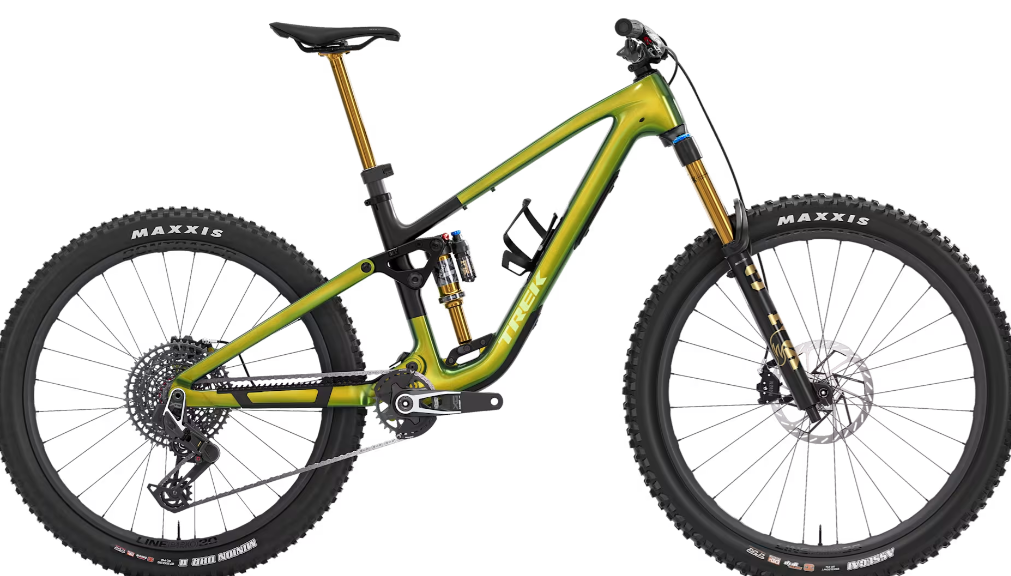

2025 Trek Fuel+ EX 8 Gen 2 – Electric Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Fuel+ EX 8 Gen 2 |
|
Vehicle Category |
Electric Mountain Bike |
|
Application |
Trail riding, enduro, all-mountain |
|
Starting Price (2025) |
$7,699.99 USD |
|
Color Options |
Matte Olive Grey/Trek Black, Trek Black/Purple Flip Splatter |
|
Sizes |
S, M, L, XL |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Alpha NEXT Platinum Aluminum, 145mm travel, internal routing, adjustable geometry, BSA 73, UDH, Boost148 |
|
Fork |
Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 150mm travel |
|
Rear Shock |
Fox Performance Float X, 230x57.5mm |
|
Drivetrain Compatibility |
SRAM Eagle 70 T-Type, 12-speed |
|
Dropouts |
15x110mm thru axle (F), 148x12mm thru axle (R) |
|
Crank |
SRAM NX Eagle, DUB, 32T, 165mm (S), 170mm (M, L), 175mm (XL) |
|
Chain |
SRAM NX Eagle, 12-speed |
|
Rear Derailleur |
SRAM NX Eagle |
|
Shifters |
SRAM NX Eagle, 12-speed |
|
Cassette |
SRAM PG-1230 Eagle, 11-50, 12-speed |
Components & Features
|
Specification |
Details |
|
Seating |
Bontrager Arvada, steel rails, 138mm width |
|
Fuel Type |
Electric (TQ HPR60 motor) |
|
Wheels/Tyres |
Bontrager Line TLR 30, Tubeless Ready, 29x2.5" |
|
Wheel Size |
29" in |
|
Brakes |
SRAM DB 8, 4-piston hydraulic disc, 200mm front/180mm rear rotors |
|
Brake Levers |
SRAM DB 8 |
|
Handlebar |
Bontrager Line, alloy, 35mm, 27.5mm rise, 750mm width |
|
Stem |
Bontrager Elite, 35mm, 0 degree, 35mm (S), 45mm (M, L, XL) |
|
Headset |
Knock Block Integrated, sealed cartridge bearing |
|
Saddle |
Bontrager Arvada, steel rails, 138mm width |
|
Seatpost |
Bontrager Line, 100mm (S), 150mm (M, L), 170mm (XL), 31.6mm |
|
Grips |
Bontrager XR Trail Comp, nylon lock-on |
|
Front Hub |
Bontrager alloy, sealed bearing, 6-bolt, 15x110mm thru axle |
|
Rear Hub |
Bontrager alloy, sealed bearing, 6-bolt, SRAM XD freehub, 148x12mm thru axle |
|
Rims |
Bontrager Line TLR 30, Tubeless Ready, 29mm width |
|
Spokes |
14g stainless steel, black |
|
Exterior Features |
Internal routing, adjustable geometry, UDH, Knock Block, Mino Link |
|
Weight |
15.2 kg / 33.51 lbs (size M) |
|
Drive Unit |
TQ HPR60, 60Nm torque, Class 1 (20 mph max assist) |
|
Battery |
TQ 580Wh, integrated |
|
Charger |
TQ 4A charger |
|
Display |
TQ LED display with Bluetooth and ANT+ connectivity |
|
Certifications |
UL 2849 (system certification for e-bike safety) |
