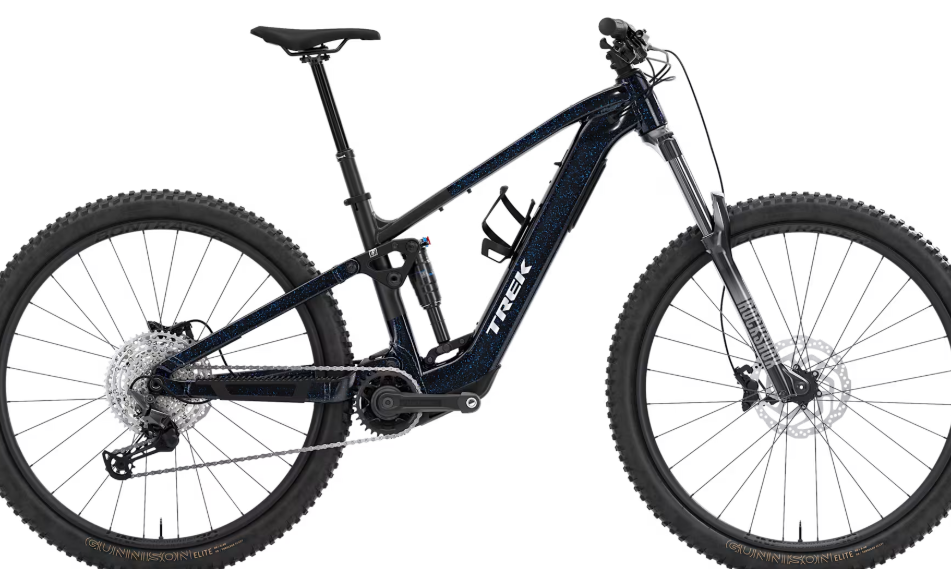

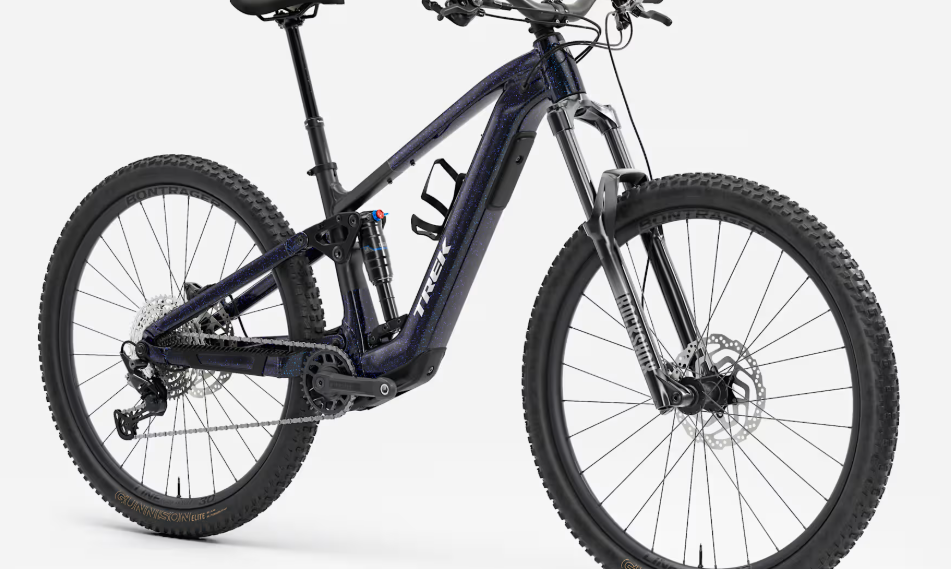

2025 Trek Fuel+ EX 5 Gen 2 – Electric Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Fuel+ EX 5 Gen 2 |
|
Vehicle Category |
Electric Mountain Bike |
|
Application |
Trail riding, enduro, all-mountain |
|
Starting Price (2025) |
$6,099.99 USD |
|
Color Options |
Trek Black/Purple Flip Splatter, Matte Olive Grey/Trek Black |
|
Sizes |
S, M, L, XL |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Alpha NEXT Platinum Aluminum, 145mm travel, internal routing, adjustable geometry, BSA 73, UDH, Boost148 |
|
Fork |
RockShox Recon Silver, Solo Air spring, Motion Control damper, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 150mm travel |
|

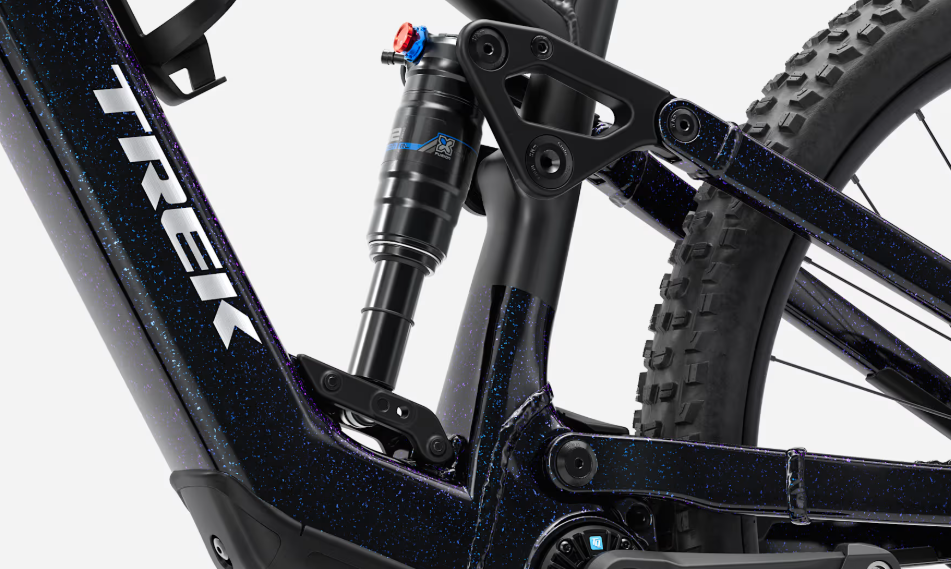

Rear Shock |
X-Fusion Pro 2, 230x57.5mm |
|

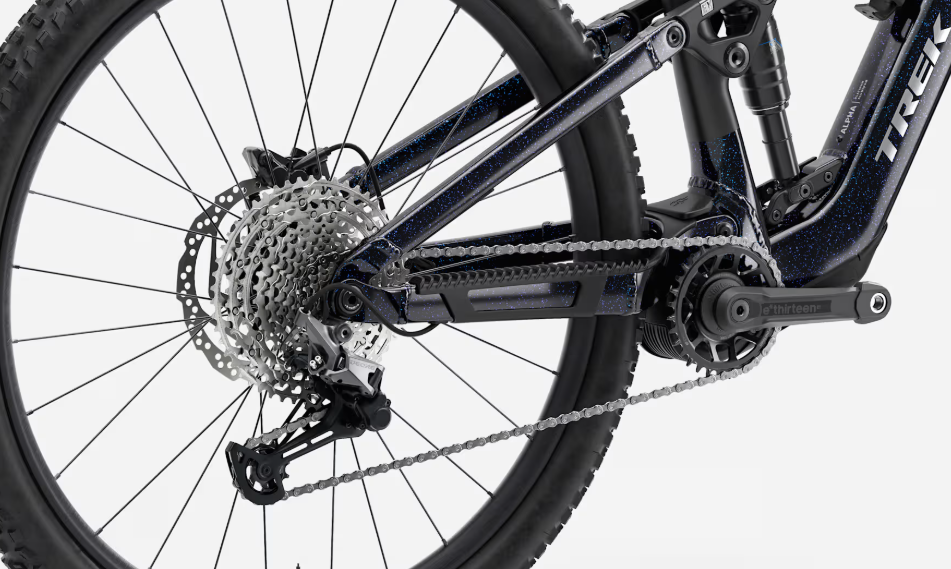

Drivetrain Compatibility |
Shimano Deore, 12-speed |
|
Dropouts |
15x110mm thru axle (F), 148x12mm thru axle (R) |
|
Crank |
Shimano Deore M6100, 30T, 165mm (S), 170mm (M, L), 175mm (XL) |
|
Chain |
Shimano Deore M6100, 12-speed |
|
Rear Derailleur |
Shimano Deore M6100 |
|
Shifters |
Shimano Deore M6100, 12-speed |
|
Cassette |
Shimano Deore M6100, 10-51, 12-speed |
Components & Features
|
Specification |
Details |
|
Seating |
Bontrager Arvada, steel rails, 138mm width |
|
Fuel Type |
Electric (TQ HPR60 motor) |
|
Wheels/Tyres |
Bontrager Line TLR 30, Tubeless Ready, 29x2.5" |
|
Wheel Size |
29" in |
|
Brakes |
Shimano M4100, 4-piston hydraulic disc, 203mm front/180mm rear rotors |
|
Brake Levers |
Shimano M4100 |
|
Handlebar |
Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 750mm width |
|
Stem |
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 35mm (S), 45mm (M, L, XL) |
|
Headset |
Knock Block Integrated, sealed cartridge bearing |
|
Saddle |
Bontrager Arvada, steel rails, 138mm width |
|
Seatpost |
TranzX JD-YSI-22PLQ, 100mm (S), 150mm (M, L), 170mm (XL), 31.6mm |
|
Grips |
Bontrager XR Trail Comp, nylon lock-on |
|
Front Hub |
Bontrager alloy, sealed bearing, 6-bolt, 15x110mm thru axle |
|
Rear Hub |
Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, 148x12mm thru axle |
|
Rims |
Bontrager Line TLR 30, Tubeless Ready, 29mm width |
|
Spokes |
14g stainless steel, black |
|
Exterior Features |

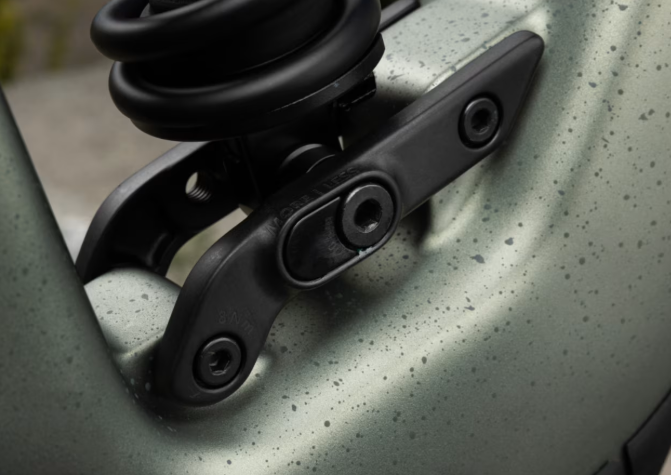

Internal routing, adjustable geometry, UDH, Knock Block, Mino Link |
|
Weight |
15.5 kg / 34.17 lbs (size M) |
|
Drive Unit |
TQ HPR60, 60Nm torque, Class 1 (20 mph max assist) |
|
Battery |
TQ 580Wh, integrated |
|
Charger |
TQ 4A charger |
|
Display |
TQ LED display with Bluetooth and ANT+ connectivity |
|
Certifications |
UL 2849 (system certification for e-bike safety) |
