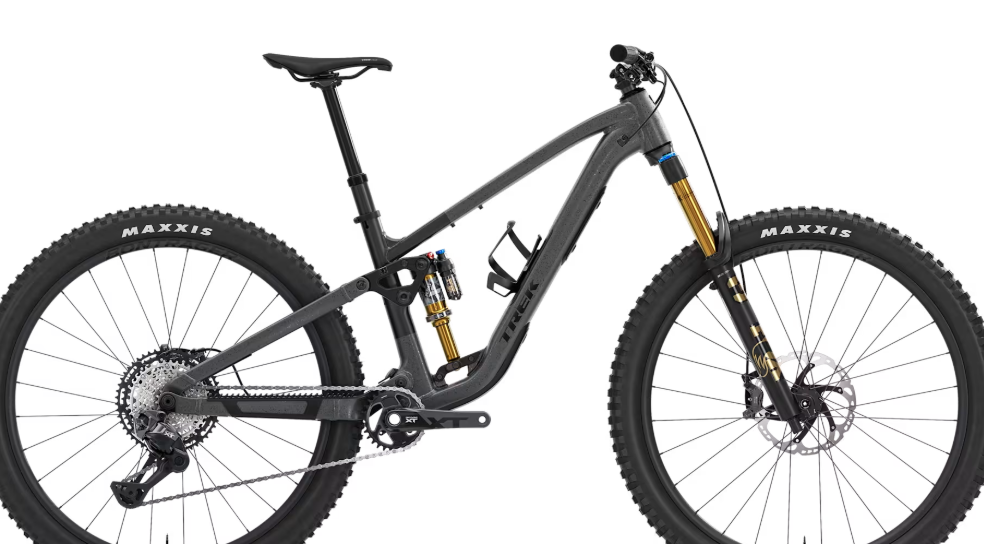

2025 Trek Fuel MX 9 XT Di2 Gen 7 – All-Mountain Full Suspension Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Fuel MX 9 XT Di2 Gen 7 |
|
Vehicle Category |
All-Mountain Full Suspension Mountain Bike |
|
Application |
Trail riding, enduro, aggressive all-mountain |
|
Starting Price (2025) |
$5,499.99 USD |
|
Color Options |
Matte Juniper/Blue Sage Splatter, Matte Sedona Red/Pennyflake Splatter, Lithium Grey/Trek Black Splatter |
|
Sizes |
S, M, L, XL |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Alpha NEXT Platinum Aluminum, adjustable geometry (Mino Link), internal storage, tapered head tube, internal cable routing, BSA 73mm threaded BB, ISCG 05 mount, 150mm travel, 148x12mm thru axle |
|
Fork |
Fox Factory 36, Float EVOL air spring, GRIP2 damper, 160mm travel, 44mm offset, 15x110mm thru axle |
|

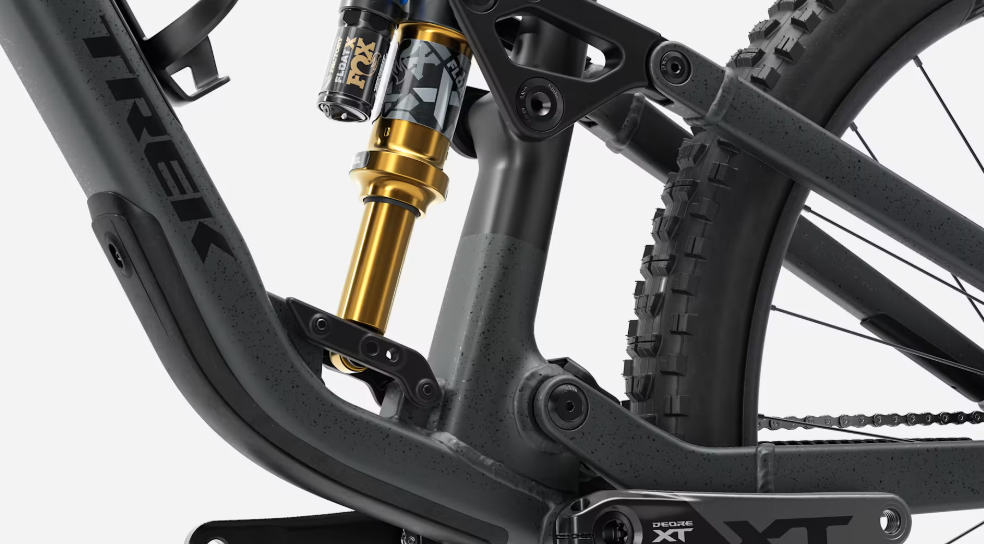

Rear Shock |
Fox Factory Float X, 2-position damper, 230x57.5mm, 150mm travel |
|
Drivetrain Compatibility |
Shimano XT Di2, 1x12-speed, wireless |
|
Dropouts |
148x12mm thru axle (R), 15x110mm thru axle (F) |
|
Crank |
Shimano XT M8150, 32T, 170mm length (S, M), 175mm length (L, XL) |
|
Chain |
Shimano XT M8100, 12-speed |
|

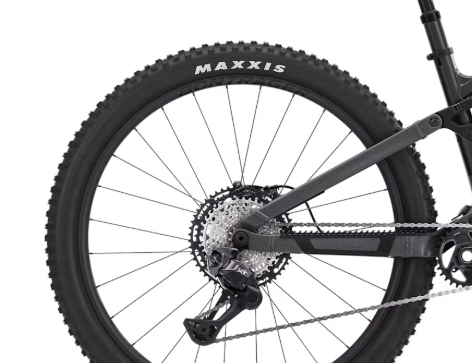

Rear Derailleur |
Shimano XT M8150 Di2, Shadow+, wireless |
|
Shifters |
Shimano XT M8150 Di2, wireless, 12-speed |
|
Cassette |
Shimano XT M8100, 10-51T, 12-speed |
Components & Features
|
Specification |
Details |
|
Seating |
Bontrager Arvada, 138mm width |
|
Cargo Capacity |
Internal storage (Bontrager BITS bag included), downtube water bottle mounts |
|
Wheels/Tyres |
Bontrager Line Comp 30, tubeless ready, 29x2.50" (F), 27.5x2.50" (R) |
|
Wheel Size |
29" (F), 27.5" (R) |
|
Brakes |
Shimano XT M8120, 4-piston hydraulic disc, 180mm rotor (F, R) |
|
Brake Levers |
Shimano XT M8100, hydraulic |
|
Handlebar |
Bontrager Line, alloy, 35mm, 27.5mm rise, 780mm width |
|
Stem |
Bontrager Line, 35mm, 0 degree, 40mm length |
|
Headset |
Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom |
|
Saddle |
Bontrager Arvada, 138mm width |
|
Seatpost |
Bontrager Line Elite Dropper, 100mm travel (S), 150mm travel (M), 170mm travel (L, XL), 34.9mm, internal routing |
|
Seatpost Clamp |
Integrated, internal |
|
Grips |
Bontrager XR Trail Pro, alloy lock-on |
|
Front Hub |
Bontrager alloy, sealed bearing, 6-bolt, 15x110mm thru axle |
|
Rear Hub |
Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano MicroSpline freehub, 148x12mm thru axle |
|
Rims |
Bontrager Line Comp 30, tubeless ready, 28-hole, 29mm width (F), 27.5mm width (R), Presta valve |
|
Spokes |
14g stainless steel |
|
Exterior Features |
Adjustable geometry (Mino Link), internal storage (Bontrager BITS bag included), Knock Block, ISCG 05 mount, tubeless ready wheels, downtube water bottle mounts |
