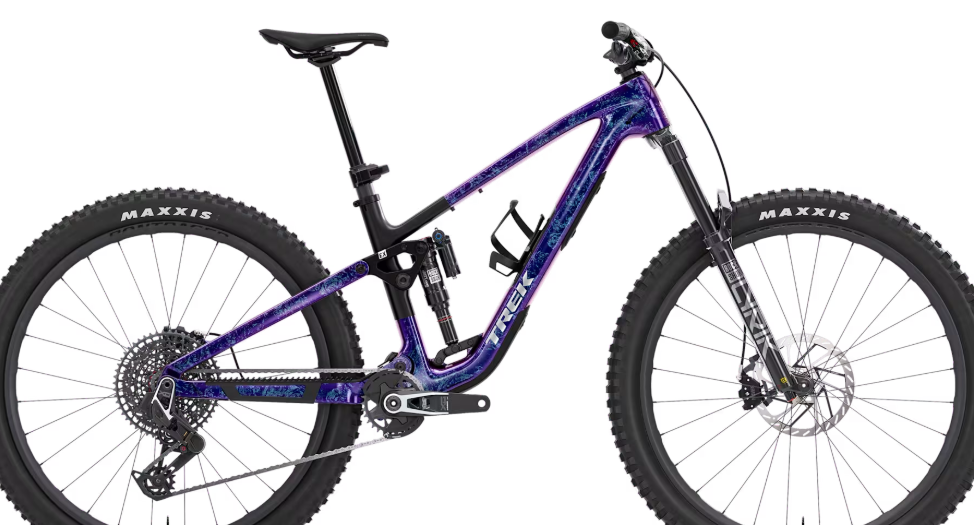

2025 Trek Fuel LX 9.8 XT Di2 Gen 7 – Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Fuel LX 9.8 XT Di2 Gen 7 |
|
Vehicle Category |
Mountain Bike |
|
Application |
Enduro, all-mountain, trail riding |
|
Starting Price (2025) |
$6,699.99 USD |
|
Color Options |
Gloss Chameleon Green/Matte Black |
|
Sizes |
S, M, L, XL, XXL |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
OCLV Mountain Carbon, 160mm travel, internal routing, adjustable geometry, BSA 73, UDH, Boost148 |
|
Fork |
Fox Factory 38, Float EVOL air spring, GRIP2 damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 170mm travel |
|
Rear Shock |
Fox DHX2, coil, 230x60mm |
|
Drivetrain Compatibility |
Shimano XT Di2, 12-speed |
|
Dropouts |
15x110mm thru axle (F), 148x12mm thru axle (R) |
|
Crank |
Shimano XT M8100, 32T, 165mm (S), 170mm (M, L), 175mm (XL, XXL) |
|
Chain |
Shimano XT M8100, 12-speed |
|
Rear Derailleur |
Shimano XT Di2 M8150 |
|
Shifters |
Shimano XT Di2 M8150, 12-speed |
|
Cassette |
Shimano XT M8100, 10-51, 12-speed |
Components & Features
|
Specification |
Details |
|
Seating |
Bontrager Arvada, carbon rails, 138mm width |
|
Wheels/Tyres |
Bontrager Line Comp 30, Tubeless Ready, 29x2.5" |
|
Wheel Size |
29" in |
|
Brakes |
Shimano XT M8120, 4-piston hydraulic disc, 203mm front/180mm rear rotors |
|
Brake Levers |
Shimano XT M8120 |
|
Handlebar |
Bontrager Line, alloy, 35mm, 27.5mm rise, 750mm width |
|
Stem |
Bontrager Line Pro, 35mm, 0 degree, 35mm (S), 45mm (M, L, XL, XXL) |
|
Headset |
Knock Block Integrated, sealed cartridge bearing |
|
Saddle |
Bontrager Arvada, carbon rails, 138mm width |
|
Seatpost |
Bontrager Line, 100mm (S), 150mm (M, L), 170mm (XL, XXL), 31.6mm |
|
Grips |
Bontrager XR Trail Elite, nylon lock-on |
|
Front Hub |
Bontrager alloy, sealed bearing, 6-bolt, 15x110mm thru axle |
|
Rear Hub |
Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, 148x12mm thru axle |
|
Rims |
Bontrager Line Comp 30, Tubeless Ready, 29mm width |
|
Spokes |
14g stainless steel, black |
|
Exterior Features |
Internal routing, adjustable geometry, UDH, Knock Block, Mino Link |
|
Weight |
13.8 kg / 30.42 lbs (size M) |
