2025 Trek Fuel LX 9 XT Gen 7 – All-Mountain Full Suspension Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Fuel LX 9 XT Gen 7 |
|
Vehicle Category |
All-Mountain Full Suspension Mountain Bike |
|
Application |
Enduro, trail riding, aggressive all-mountain |
|
Starting Price (2025) |
$5,199.99 USD |
|
Color Options |
Matte Sedona Red/Pennyflake Splatter, Lithium Grey/Trek Black Splatter, Matte Juniper/Blue Sage Splatter |
|
Sizes |
S, M, L, XL |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |

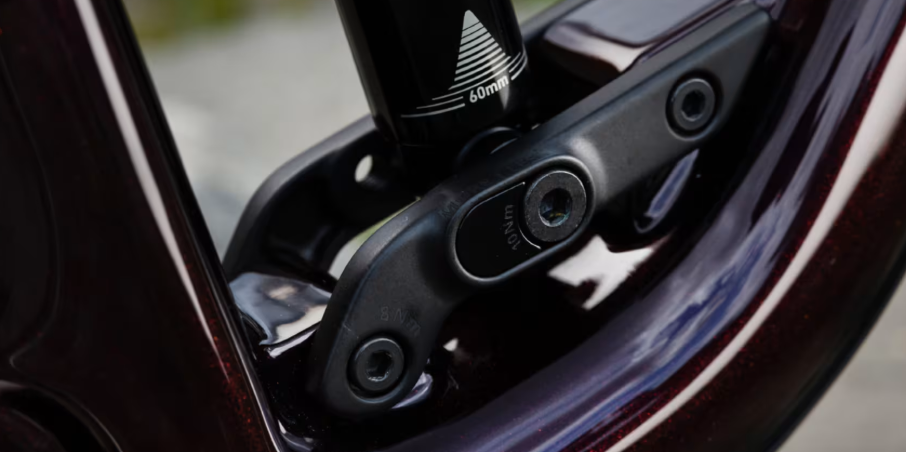

Alpha NEXT Platinum Aluminum, adjustable geometry (Mino Link), internal storage, tapered head tube, internal cable routing, BSA 73mm threaded BB, ISCG 05 mount, 160mm travel, 148x12mm thru axle |
|
Fork |
Fox Factory 38, GRIP2 damper, 170mm travel, 44mm offset, 15x110mm thru axle |
|
Rear Shock |
Fox DHX2, coil, 230x62.5mm, 160mm travel |
|
Drivetrain Compatibility |
Shimano XT, 1x12-speed |
|
Dropouts |
148x12mm thru axle (R), 15x110mm thru axle (F) |
|
Crank |
Shimano XT M8100, 32T, 170mm length (S, M), 175mm length (L, XL) |
|
Chain |
Shimano XT M8100, 12-speed |
|
Rear Derailleur |
Shimano XT M8100, Shadow+ |
|
Shifters |
Shimano XT M8100, 12-speed |
|
Cassette |
Shimano XT M8100, 10-51T, 12-speed |
Components & Features
|
Specification |
Details |
|
Seating |
Bontrager Arvada, 138mm width |
|
Cargo Capacity |

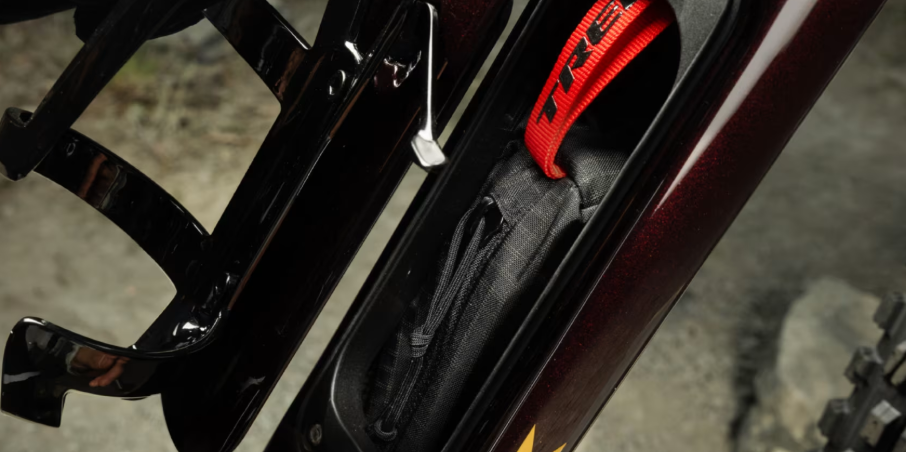

Internal storage (Bontrager BITS bag included), downtube water bottle mounts |
|
Wheels/Tyres |
Bontrager Line Comp 30, tubeless ready, 29x2.50" |
|
Wheel Size |
29" in |
|
Brakes |
Shimano XT M8120, 4-piston hydraulic disc, 180mm rotor (F, R) |
|
Brake Levers |
Shimano XT M8100, hydraulic |
|
Handlebar |
Bontrager Line, alloy, 35mm, 27.5mm rise, 780mm width |
|
Stem |
Bontrager Line, 35mm, 0 degree, 40mm length |
|
Headset |
Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom |
|
Saddle |
Bontrager Arvada, 138mm width |
|
Seatpost |
Bontrager Line Elite Dropper, 100mm travel (S), 150mm travel (M), 170mm travel (L, XL), 34.9mm, internal routing |
|
Seatpost Clamp |
Integrated, internal |
|
Grips |
Bontrager XR Trail Pro, alloy lock-on |
|
Front Hub |
Bontrager alloy, sealed bearing, 6-bolt, 15x110mm thru axle |
|
Rear Hub |
Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano MicroSpline freehub, 148x12mm thru axle |
|
Rims |
Bontrager Line Comp 30, tubeless ready, 28-hole, 29mm width, Presta valve |
|
Spokes |
14g stainless steel |
|
Exterior Features |
Adjustable geometry (Mino Link), internal storage (Bontrager BITS bag included), Knock Block, ISCG 05 mount, tubeless ready wheels, downtube water bottle mounts |
