Specification

Details

Model

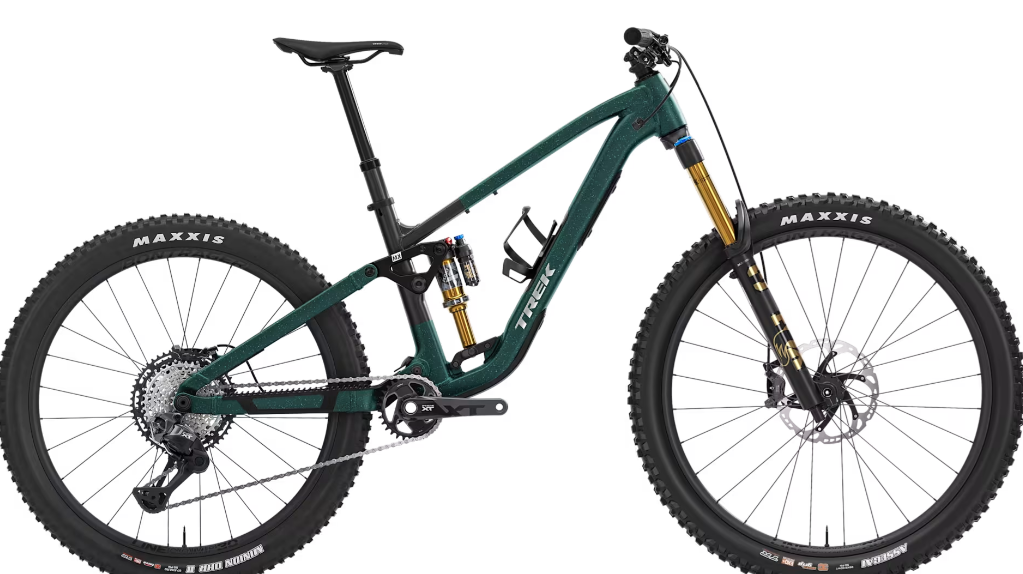

Fuel LX 9 XT Di2 Gen 7

Vehicle Category

Mountain Bike

Application

Enduro riding, descending, trail riding

Starting Price (2025)

$5,699.99 USD

Color Options

Matte Sedona Red/Pennyflake Splatter, Lithium Grey/Trek Black Splatter

Sizes

S, M, L, XL

Specification

Details

Frame

Alpha NEXT Platinum Aluminum, 160mm travel, internal cable routing, adjustable geometry, 148x12mm thru axle

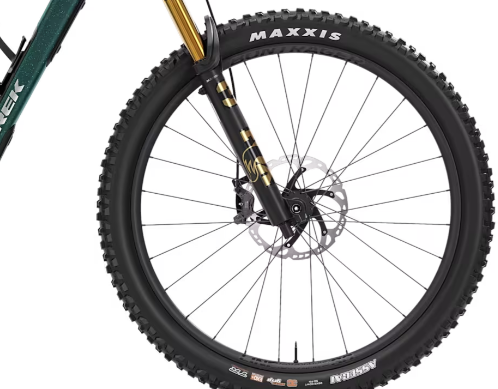

Fork

Fox Factory 38, Float EVOL air spring, GRIP2 damper, 170mm travel

Rear Shock

Fox DHX2, coil, 160mm travel

Drivetrain Compatibility

Shimano XT Di2, 12-speed

Dropouts

15x110mm thru axle (F), 148x12mm thru axle (R)

Crank

Shimano XT M8150, 30T, 170mm (S, M), 175mm (L, XL)

Chain

Shimano XT M8100, 12-speed

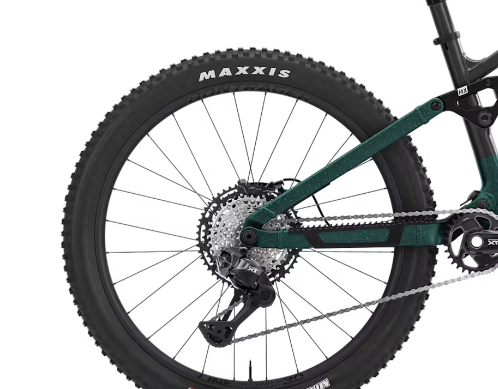

Rear Derailleur

Shimano XT M8150 Di2, Shadow SGS

Shifters

Shimano XT M8150 Di2, 12-speed

Cassette

Shimano XT M8100, 10-51, 12-speed

Specification

Details

Seating

Bontrager Arvada, hollow chromoly rails, 138mm width

Wheels/Tyres

Bontrager Line Comp 30, tubeless ready, 29x2.50"

Wheel Size

29" in

Brakes

Shimano XT M8120, 4-piston hydraulic disc, 200mm rotors

Brake Levers

Shimano XT M8100

Handlebar

Bontrager Line, alloy, 35mm, 27.5mm rise, 820mm width

Stem

Bontrager Line, 35mm, 0 degree, 40mm (S, M), 50mm (L, XL)

Headset

Knock Block Integrated, 1-1/8in top, 1.5in bottom, sealed cartridge bearing

Saddle

Bontrager Arvada, hollow chromoly rails, 138mm width

Seatpost

Bontrager Line Dropper, 100mm (S), 150mm (M, L), 170mm (XL)

Grips

Bontrager XR Trail Elite, nylon lock-on

Front Hub

Bontrager alloy, sealed bearing, 6-bolt, 15x110mm thru axle

Rear Hub

Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, 148x12mm thru axle

Rims

Bontrager Line Comp 30, tubeless ready, 30mm width

Spokes

14g stainless steel, black

Exterior Features

Adjustable geometry, internal cable routing, Knock Block, Mino Link adjustable suspension, downtube guard

Weight

15.1 kg / 33.29 lbs (size M)
