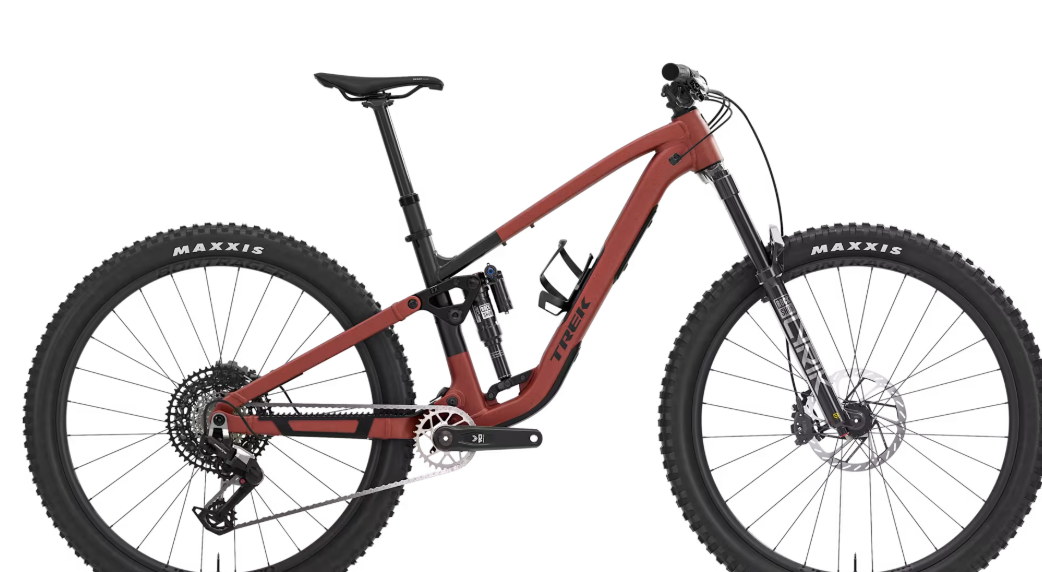

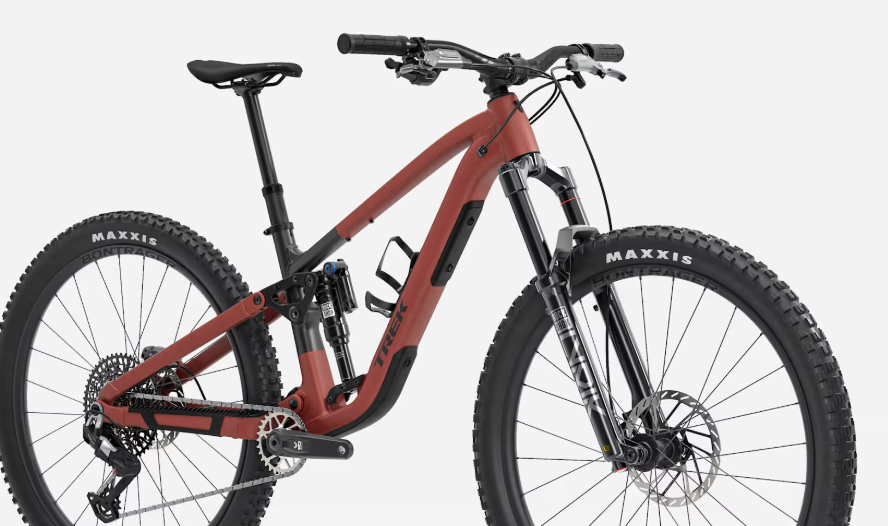

2025 Trek Fuel LX 9 Eagle 90 Gen 7 – Full Suspension Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Fuel LX 9 Eagle 90 Gen 7 |
|
Vehicle Category |
Full Suspension Mountain Bike |
|
Application |
Enduro, aggressive trail riding, downhill |
|
Starting Price (2025) |
$5,199.99 USD |
|
Color Options |
Lithium Grey/Trek Black Splatter, Red/Orange |
|
Sizes |
S, M, L, XL (29" wheels) |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Alpha NEXT Platinum Aluminum, high-pivot suspension, adjustable geometry, internal storage, tapered head tube, Knock Block, internal cable routing, ISCG 05 mount, 160mm travel, 148x12mm thru axle |
|
Fork |
Fox Factory 38, Float EVOL air spring, GRIP2 damper, tapered steerer, 44mm offset, 170mm travel, 15x110mm thru axle |
|
Rear Shock |
Fox DHX2, coil, 230x65mm, 160mm travel |
|

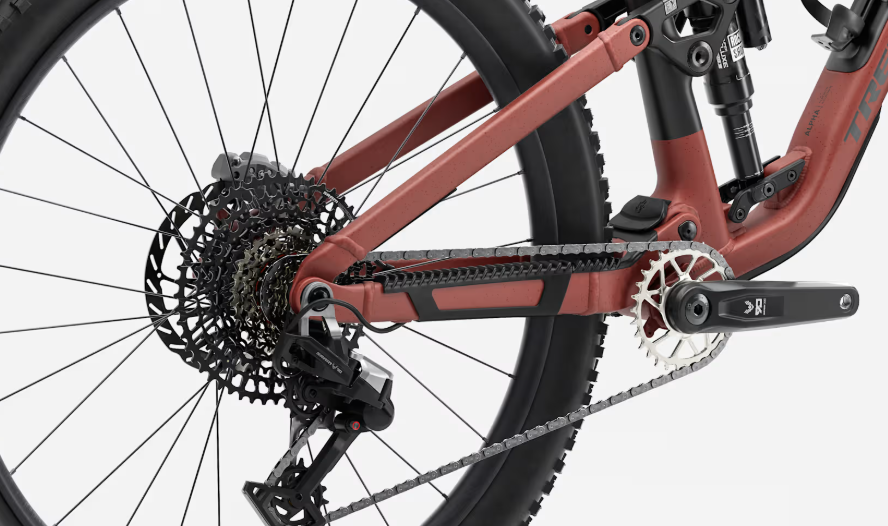

Drivetrain Compatibility |
SRAM Eagle 90, 1x12-speed |
|
Dropouts |
148x12mm thru axle (R), 15x110mm thru axle (F) |
|
Crank |
SRAM NX Eagle, 32T, DUB, 55mm chainline, 170mm length (S, M), 175mm length (L, XL) |
|
Chain |
SRAM NX Eagle, 12-speed |
|
Rear Derailleur |
SRAM GX Eagle |
|
Shifters |
SRAM NX Eagle, 12-speed |
|
Cassette |
SRAM PG-1230 NX Eagle, 11-50T, 12-speed |
Components & Features
|
Specification |
Details |
|
Seating |
Bontrager Arvada, 138mm width |
|
Cargo Capacity |
Internal storage (Bontrager BITS bag included), downtube water bottle mounts |
|
Wheels/Tyres |
Bontrager XR5 Team Issue, tubeless ready, 29x2.50" |
|
Wheel Size |
29" in |
|
Brakes |
SRAM Maven Bronze, 4-piston hydraulic disc, 200mm rotor (F), 180mm rotor (R) |
|
Brake Levers |
SRAM Maven Bronze, hydraulic |
|
Handlebar |
Bontrager Line, alloy, 35mm, 27.5mm rise, 820mm width |
|
Stem |
Bontrager Line, 35mm, Knock Block, 0 degree, 40mm length |
|
Headset |
Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom |
|
Saddle |
Bontrager Arvada, 138mm width |
|
Seatpost |
TranzX JD-YSP39, 100mm travel (S), 150mm travel (M), 170mm travel (L, XL), 34.9mm, internal routing |
|
Seatpost Clamp |
Integrated, internal |
|
Grips |
Bontrager XR Trail Pro, alloy lock-on |
|
Front Hub |
Bontrager alloy, sealed bearing, 6-bolt, 15x110mm thru axle |
|
Rear Hub |
Bontrager alloy, sealed bearing, 6-bolt, SRAM XD freehub, 148x12mm thru axle |
|
Rims |
Bontrager Line Comp 30, tubeless ready, 30mm inner width, 28-hole |
|
Spokes |
Stainless steel, 14g |
|
Exterior Features |
High-pivot suspension, adjustable geometry, internal storage (Bontrager BITS bag included), Knock Block, ISCG 05 mount, tubeless ready wheels, downtube water bottle mounts |
|
Weight |
15.85 kg (M, estimated) |
