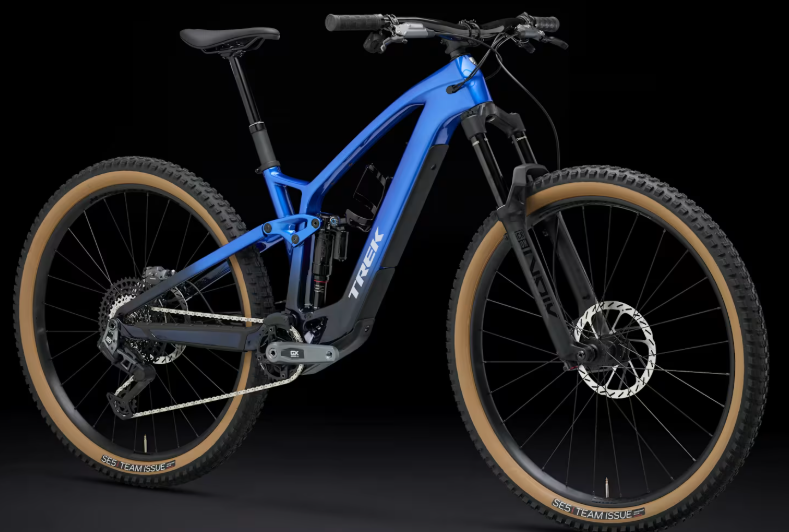

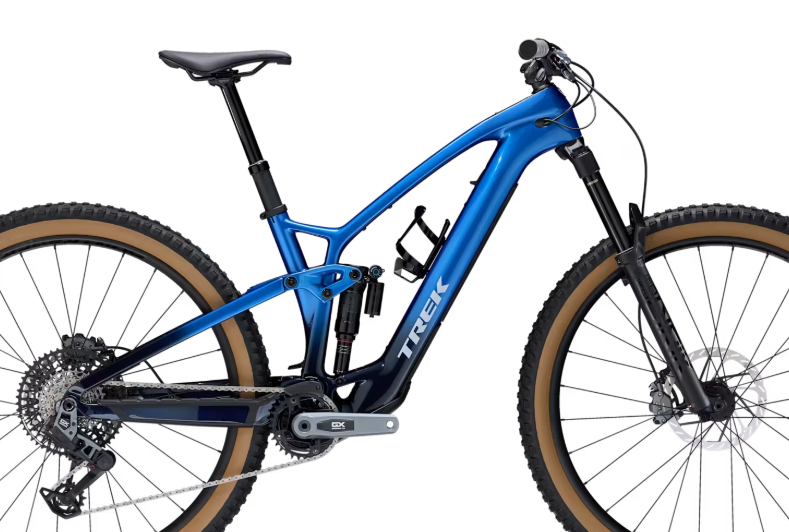

2025 Trek Fuel EXe 9.8 GX AXS T-Type – Electric Full Suspension Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Fuel EXe 9.8 GX AXS T-Type |
|
Vehicle Category |
Electric Full Suspension Mountain Bike |
|
Application |
Trail riding, enduro, all-mountain with electric assist |
|
Starting Price (2025) |
$7,199.97 USD (sale), $9,899.99 USD (original) |
|
Color Options |
Marianas Blue, Black/White |
|
Sizes |
S, M, L, XL |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
OCLV Mountain Carbon, TQ HPR50 motor, Removable Integrated Battery (RIB), internal storage, adjustable geometry (Mino Link), tapered head tube, Knock Block, internal cable routing, ISCG 05 mount, 150mm travel, 148x12mm thru axle |
|
Fork |
RockShox Lyrik Select+, DebonAir spring, Charger 2.1 RC damper, 160mm travel, 44mm offset, 15x110mm thru axle |
|
Rear Shock |

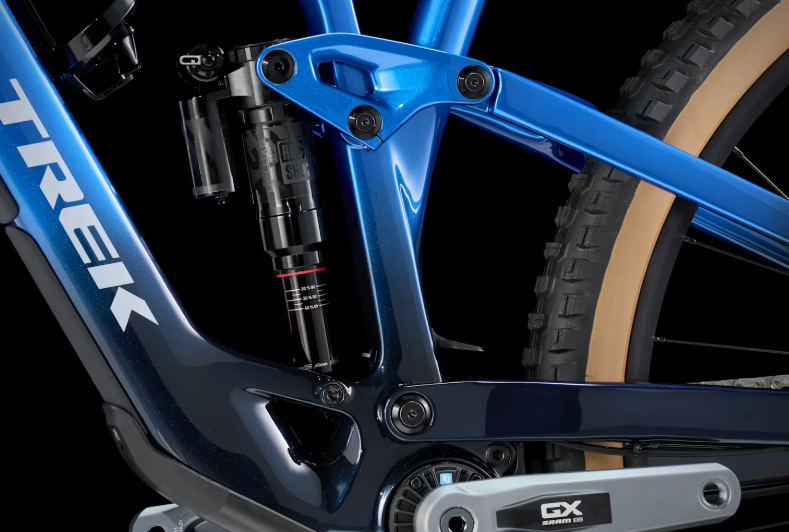

RockShox Super Deluxe Select+, 3-position damper, 230x62.5mm, 150mm travel |
|
Drivetrain Compatibility |
SRAM GX AXS T-Type, 1x12-speed |
|
Dropouts |
148x12mm thru axle (R), 15x110mm thru axle (F) |
|
Crank |
SRAM GX T-Type, 32T, 165mm length |
|
Chain |
SRAM GX T-Type, 12-speed |
|
Rear Derailleur |
SRAM GX AXS T-Type, wireless |
|
Shifters |
SRAM AXS Pod, wireless, 12-speed |
|
Cassette |
SRAM XS-1275 T-Type, 10-52T, 12-speed |
Components & Features
|
Specification |
Details |
|
Seating |
Bontrager Arvada, 138mm width |
|
Cargo Capacity |
Internal storage (Bontrager BITS bag included), downtube water bottle mounts |
|
Wheels/Tyres |
Bontrager Line Elite 30, OCLV Mountain Carbon, tubeless ready, 29x2.40" |
|
Wheel Size |
29" in |
|
Brakes |
SRAM G2 R, 4-piston hydraulic disc, 180mm rotor (F, R) |
|
Brake Levers |
SRAM G2 R, hydraulic |
|
Handlebar |
Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 780mm width |
|
Stem |
Bontrager Line Pro, 35mm, Knock Block, 0 degree, 45mm length |
|
Headset |
Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom |
|
Saddle |
Bontrager Arvada, 138mm width |
|
Seatpost |
Bontrager Line Elite Dropper, 100mm travel (S), 150mm travel (M), 170mm travel (L, XL), 34.9mm, internal routing |
|
Seatpost Clamp |
Integrated, internal |
|
Grips |
Bontrager XR Trail Pro, alloy lock-on |
|
Front Hub |
Bontrager alloy, sealed bearing, 6-bolt, 15x110mm thru axle |
|
Rear Hub |
Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, SRAM XD freehub, 148x12mm thru axle |
|
Rims |
Bontrager Line Elite 30, OCLV Mountain Carbon, tubeless ready, 28-hole, Presta valve |
|
Spokes |
14g stainless steel |
|
Exterior Features |
TQ HPR50 motor, internal storage (Bontrager BITS bag included), adjustable geometry (Mino Link), Knock Block, ISCG 05 mount, tubeless ready wheels, downtube water bottle mounts |
|
Weight |
18.6 kg (M, estimated) |
|
Motor |
TQ HPR50, harmonic pin ring, 50 Nm max torque, 300W max power, mid-drive |
|
Battery |
360 Wh, Removable Integrated Battery (RIB), 36V, optional 160 Wh range extender |
|
Display |
TQ LED display, Bluetooth connectivity |
|
Assist Modes |
Eco, Mid, High, Walk |
|
Max Assist Speed |
25 km/h (15.5 mph, USA: 20 mph) |
|
Range |
50-100 km (31-62 miles), depending on mode, terrain, and rider weight |
|
Charger |
TQ 4A charger, 100-240V, 2-3 hour charge time |
