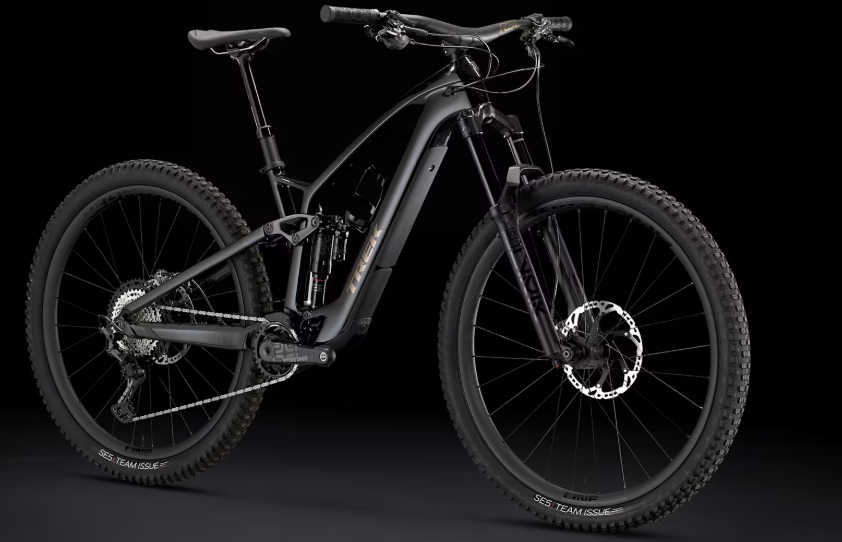

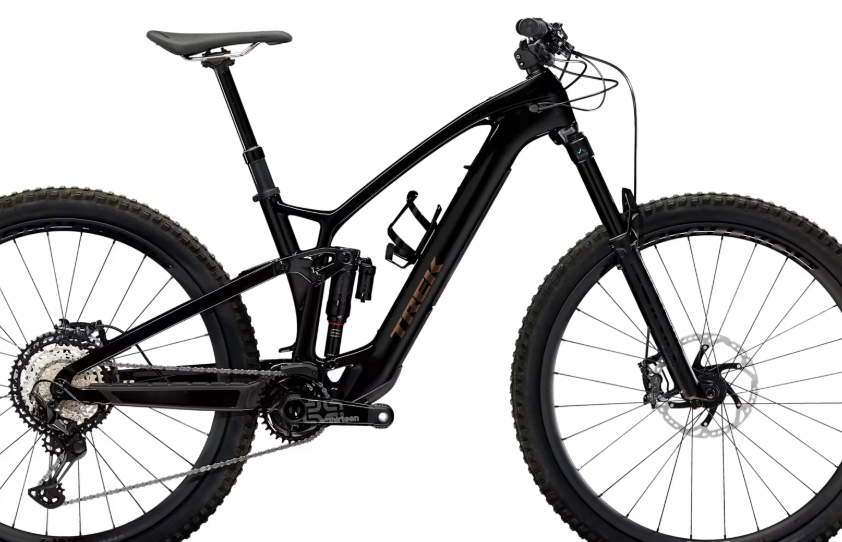

2025 Trek Fuel EXe 9.8 – Electric Full Suspension Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Fuel EXe 9.8 |
|
Vehicle Category |
Electric Full Suspension Mountain Bike |
|
Application |
Trail riding, enduro, all-mountain with electric assist |
|
Starting Price (2025) |
$5,299.93 USD (sale), $8,699.99 USD (original) |
|
Color Options |
Deep Smoke |
|
Sizes |
S, M, L, XL |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
OCLV Mountain Carbon, TQ HPR50 motor, Removable Integrated Battery (RIB), internal storage, adjustable geometry, tapered head tube, Knock Block, internal cable routing, ISCG 05 mount, 150mm travel, 148x12mm thru axle |
|
Fork |
RockShox Lyrik Ultimate, Charger 3 RC2 damper, DebonAir+ spring, AirWiz, 160mm travel, 44mm offset, 15x110mm thru axle |
|
Rear Shock |
RockShox Super Deluxe Ultimate RC2T, AirWiz, 2-position damper, 230x62.5mm, 150mm travel |
|
Drivetrain Compatibility |
Shimano XT, 1x12-speed |
|
Dropouts |
148x12mm thru axle (R), 15x110mm thru axle (F) |
|
Crank |
E*thirteen E*spec Race Carbon, 34T, 165mm length |
|
Chain |
Shimano XT M8100, 12-speed |
|
Rear Derailleur |
Shimano XT M8100, long cage |
|
Shifters |
Shimano XT M8100, 12-speed |
|
Cassette |
Shimano XT M8100, 10-51T, 12-speed |
Components & Features
|
Specification |
Details |
|
Seating |
Bontrager Arvada, 138mm width |
|
Cargo Capacity |
Internal storage (Bontrager BITS bag included), downtube water bottle mounts |
|
Wheels/Tyres |
Bontrager Line Elite 30, OCLV Mountain Carbon, tubeless ready, 29x2.40" |
|
Wheel Size |
29" in |
|
Brakes |
Shimano XT M8120, 4-piston hydraulic disc, 180mm rotor (F, R) |
|
Brake Levers |
Shimano XT M8100, hydraulic |
|
Handlebar |
Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 780mm width |
|
Stem |
Bontrager Line Pro, 35mm, Knock Block, 0 degree, 45mm length |
|
Headset |
Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom |
|
Saddle |
Bontrager Arvada, 138mm width |
|
Seatpost |
Bontrager Line Elite Dropper, 100mm travel (S), 150mm travel (M), 170mm travel (L, XL), 34.9mm, internal routing |
|
Seatpost Clamp |
Integrated, internal |
|
Grips |
Bontrager XR Trail Pro, alloy lock-on |
|
Front Hub |
Bontrager alloy, sealed bearing, 6-bolt, 15x110mm thru axle |
|
Rear Hub |
Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano 10/12-speed freehub, 148x12mm thru axle |
|
Rims |
Bontrager Line Elite 30, OCLV Mountain Carbon, tubeless ready, 28-hole, Presta valve |
|
Spokes |
14g stainless steel |
|
Exterior Features |
TQ HPR50 motor, internal storage (Bontrager BITS bag included), adjustable geometry, Knock Block, ISCG 05 mount, tubeless ready wheels, downtube water bottle mounts, AirWiz suspension technology |
|
Weight |
18.5 kg (M, estimated) |
|

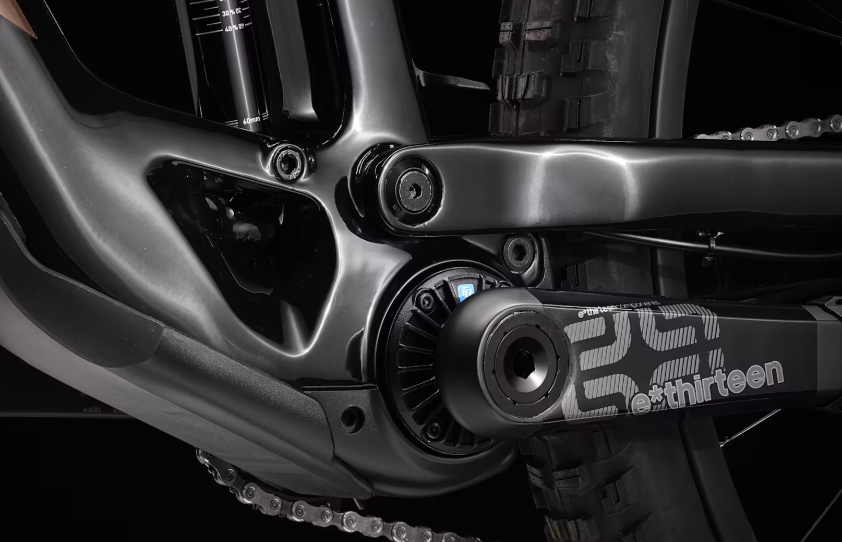

Motor |
TQ HPR50, harmonic pin ring, 50 Nm max torque, 300W max power, mid-drive |
|
Battery |
360 Wh, Removable Integrated Battery (RIB), 36V, optional 160 Wh range extender |
|

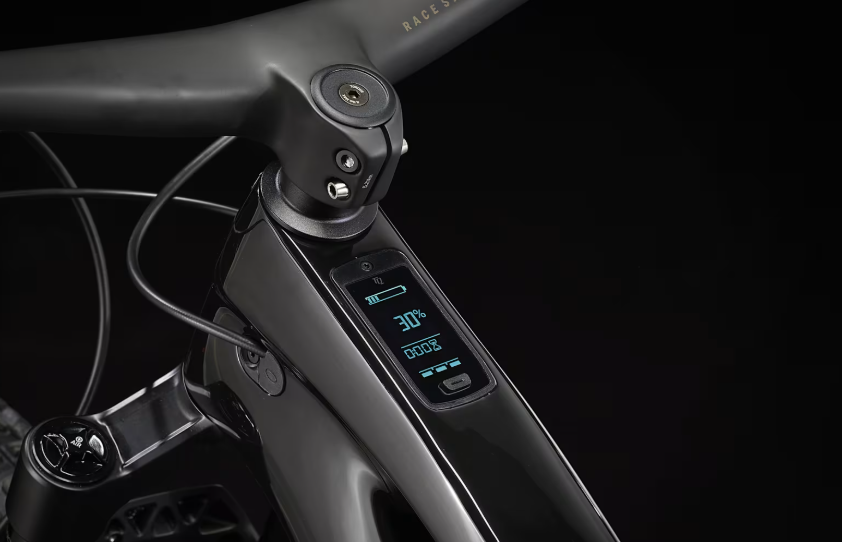

Display |
TQ LED display, Bluetooth connectivity |
|
Assist Modes |
Eco, Mid, High, Walk |
|
Max Assist Speed |
25 km/h (15.5 mph, USA: 20 mph) |
|
Range |
50-100 km (31-62 miles), depending on mode, terrain, and rider weight |
|
Charger |
TQ 4A charger, 100-240V, 2-3 hour charge time |
