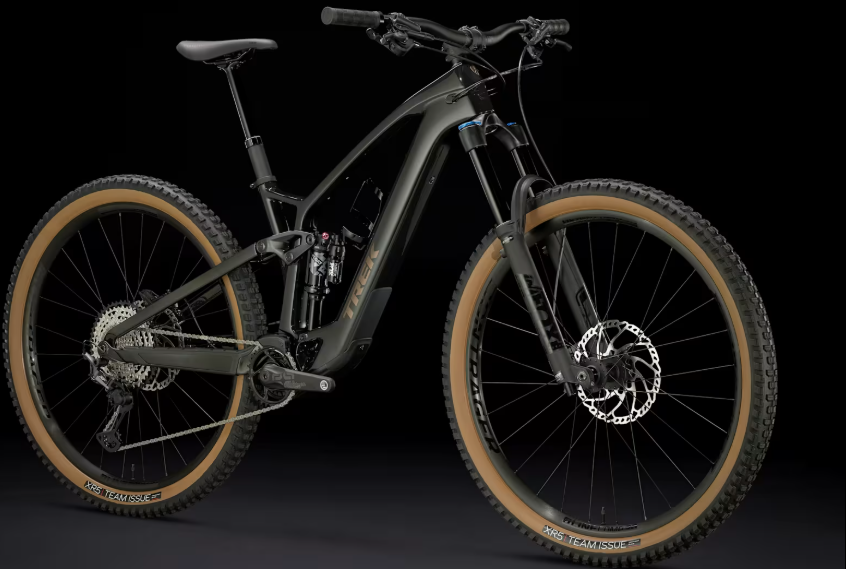

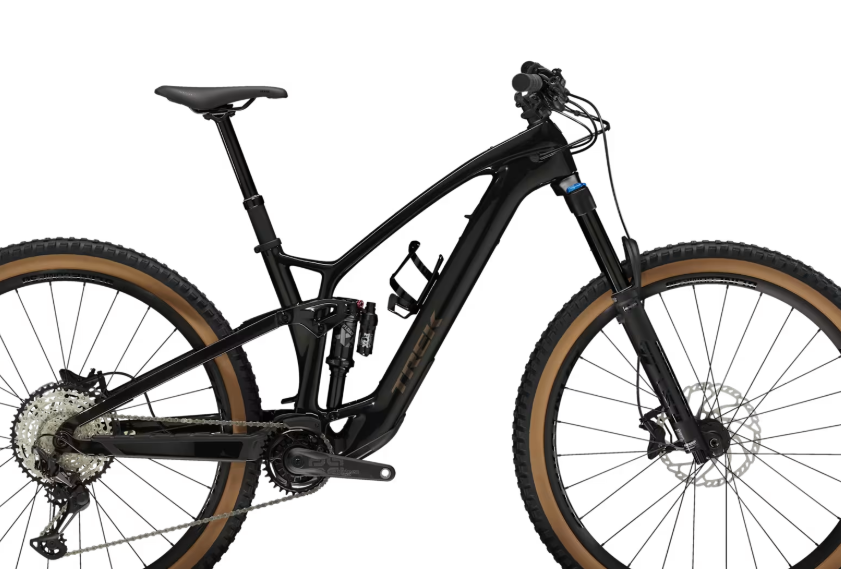

2025 Trek Fuel EXe 9.7 – Electric Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Fuel EXe 9.7 |
|
Vehicle Category |
Electric Mountain Bike |
|
Application |
Trail riding, all-mountain, climbing assist |
|
Starting Price (2025) |
$6,099.97 USD (Sale, original $8,299.99) |
|
Color Options |
Deep Smoke, Black-Grey, Red |
|
Sizes |
S, M, L, XL |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
OCLV Mountain Carbon, internal storage, Mino Link adjustable geometry, Active Braking Pivot (ABP), 140mm travel, 148x12mm thru axle |
|
Fork |
RockShox Pike Select+, DebonAir spring, Charger 2.1 RC damper, 150mm travel, 42mm offset, 15x110mm thru axle |
|
Rear Shock |
RockShox Deluxe Select+ RT, 205x57.5mm, 140mm travel |
|
Drivetrain Compatibility |
Shimano XT/SLX mix, 1x12-speed, mechanical |
|
Dropouts |
15x110mm thru axle (F), 148x12mm thru axle (R) |
|
Crank |
Shimano SLX M7120, 30T, 165mm (S, M, L, XL) |
|
Chain |
Shimano SLX M7100, 12-speed |
|
Rear Derailleur |
Shimano XT M8100, 12-speed, mechanical |
|
Shifters |
Shimano XT M8100, 12-speed, mechanical |
|
Cassette |
Shimano SLX M7100, 10-51T, 12-speed |
Components & Features
|
Specification |
Details |
|
Seating |
Bontrager Arvada, 138mm width |
|
Fuel Type |
Electric (TQ HPR-50 motor) |
|
Cargo Capacity |
Internal storage (Bontrager BITS bag included), downtube water bottle mounts |
|
Wheels/Tyres |
Bontrager Line Comp 30, tubeless ready, 29x2.50" (S: 27.5x2.50"), Bontrager SE5 Team Issue |
|
Wheel Size |
29" (S: 27.5") |
|
Brakes |
Shimano Deore M6120, 4-piston hydraulic disc, 203mm rotor (F), 180mm rotor (R) |
|
Brake Levers |
Shimano Deore M6100, hydraulic |
|
Handlebar |
Bontrager Line, alloy, 35mm, 27.5mm rise, 780mm width |
|
Stem |
Bontrager Elite, 35mm, 0 degree, 45mm length |
|
Headset |
Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom |
|
Saddle |
Bontrager Arvada, 138mm width |
|
Seatpost |
Bontrager Line Dropper, 100mm travel (S), 150mm travel (M), 170mm travel (L), 200mm travel (XL), 34.9mm |
|
Seatpost Clamp |
Integrated, internal |
|
Grips |
Bontrager XR Trail Elite, nylon lock-on |
|
Front Hub |
Bontrager alloy, sealed bearing, 6-bolt, 15x110mm thru axle |
|
Rear Hub |
Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano MicroSpline freehub, 148x12mm thru axle |
|
Rims |
Bontrager Line Comp 30, tubeless ready, 29mm width (S: 27.5mm width) |
|
Spokes |
14g stainless steel |
|
Exterior Features |
Internal storage (Bontrager BITS bag included), Mino Link adjustable geometry, Active Braking Pivot (ABP), Knock Block, downtube water bottle mounts |
|

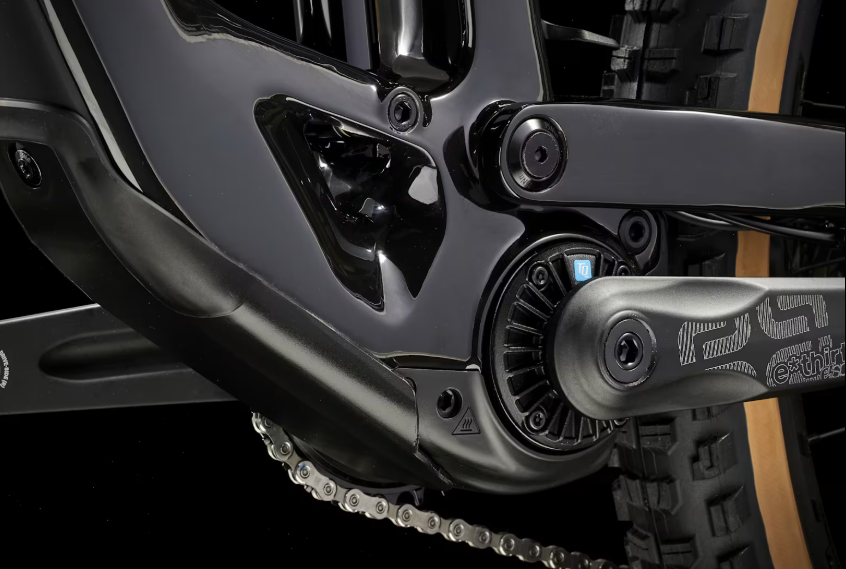

Motor |
TQ HPR-50, 50Nm, 300W max power, 20mph/32kph max assist (Class 1) |
|
Battery |
TQ 360Wh, integrated, removable |
|

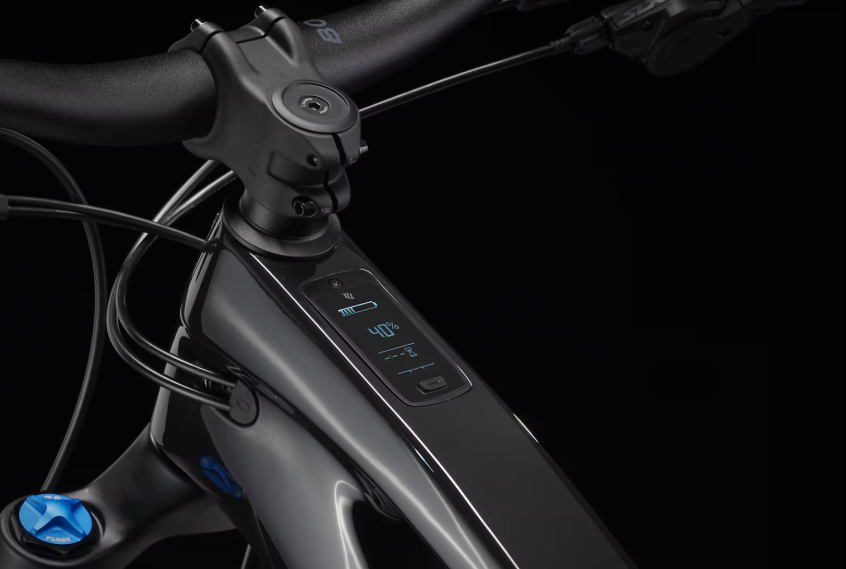

Controller |

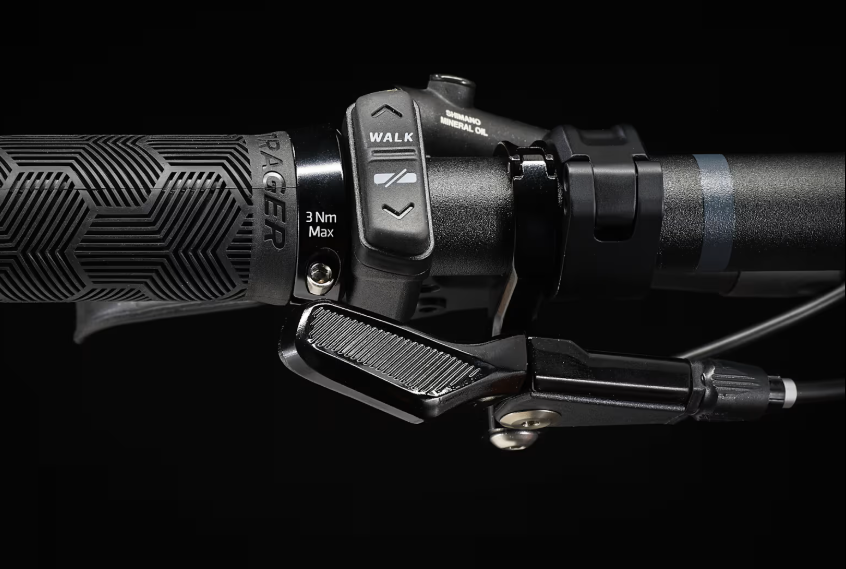

TQ LED display, 3 assist modes (Eco, Mid, High), walk assist |
|
Charger |
TQ 4A charger |
