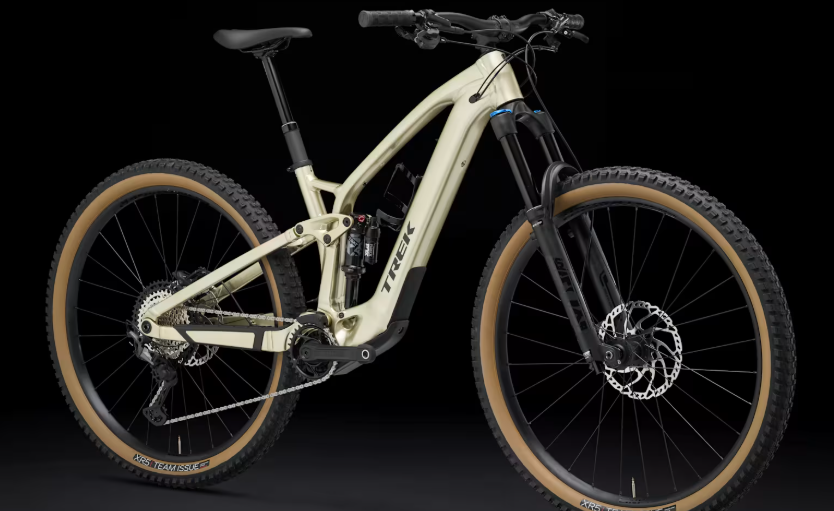

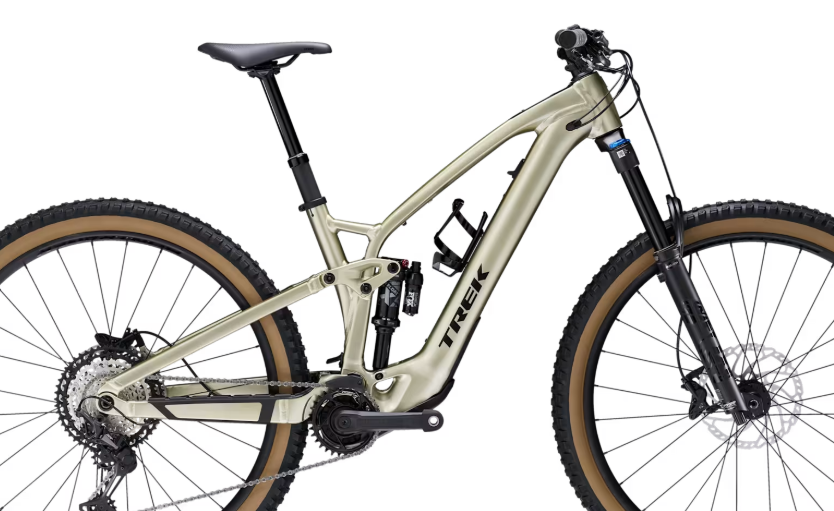

2025 Trek Fuel EXe 8 XT – Electric Trail Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Fuel EXe 8 XT |
|
Vehicle Category |
Electric Trail Mountain Bike |
|
Application |
Trail riding, enduro with electric assist |
|
Starting Price (2025) |
$5,299.97 USD (sale), $6,999.99 USD (original) |
|
Color Options |
Supernova, Bluedark, Grey, Tan |
|
Sizes |
S, M, L, XL |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Alpha Platinum Aluminum, TQ HPR50 motor, Removable Integrated Battery (RIB), internal storage, Mino Link adjustable geometry, Active Braking Pivot (ABP), 140mm travel, 148x12mm thru axle |
|
Fork |
Fox Rhythm 36, Float EVOL air spring, GRIP damper, 150mm travel, 44mm offset, 15x110mm thru axle |
|
Rear Shock |

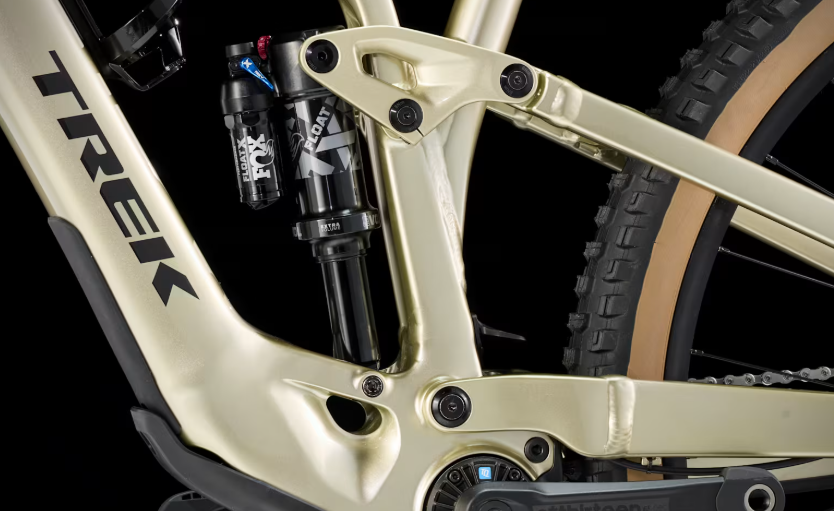

Fox Performance Float X, 2-position damper, 185x55mm, 140mm travel |
|
Drivetrain Compatibility |
Shimano XT, 1x12-speed |
|
Dropouts |
148x12mm thru axle (R), 15x110mm thru axle (F) |
|
Crank |
E*thirteen e*spec Plus, 34T, 165mm (S), 170mm (M, L, XL) |
|
Chain |
Shimano XT M8100, 12-speed |
|
Rear Derailleur |
Shimano XT M8100, long cage |
|
Shifters |
Shimano XT M8100, 12-speed |
|
Cassette |
Shimano XT M8100, 10-51T, 12-speed |
Components & Features
|
Specification |
Details |
|
Seating |
Bontrager Arvada, 138mm width |
|
Fuel Type |
Electric (TQ HPR50 motor) |
|
Cargo Capacity |
Internal storage (Bontrager BITS bag included), downtube water bottle mounts |
|
Wheels/Tyres |
Bontrager Line Comp 30, tubeless ready, 29x2.50" (S, M, L, XL) |
|
Wheel Size |
29" in |
|
Brakes |
Shimano XT M8120, 4-piston hydraulic disc, 180mm rotor (F, R) |
|
Brake Levers |
Shimano XT M8100, hydraulic |
|
Handlebar |
Bontrager Line, alloy, 35mm, 27.5mm rise, 780mm width |
|
Stem |
Bontrager Elite, 35mm, 0 degree, 45mm length |
|
Headset |
Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom |
|
Saddle |
Bontrager Arvada, 138mm width |
|
Seatpost |
Bontrager Line Elite Dropper, 100mm travel (S), 150mm travel (M), 170mm travel (L, XL), 34.9mm, internal routing |
|
Seatpost Clamp |
Integrated, internal |
|
Grips |
Bontrager XR Trail Elite, nylon lock-on |
|
Front Hub |
Bontrager alloy, sealed bearing, 6-bolt, 15x110mm thru axle |
|
Rear Hub |
Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano MicroSpline freehub, 148x12mm thru axle |
|
Rims |
Bontrager Line Comp 30, tubeless ready, 28-hole, 29mm width, Presta valve |
|
Spokes |
14g stainless steel |
|
Exterior Features |
Active Braking Pivot (ABP), internal storage (Bontrager BITS bag included), Mino Link adjustable geometry, Knock Block, downtube water bottle mounts |
|
Motor |
TQ HPR50, 50Nm, 250W maximum continuous rated power |
|
Battery |
TQ 360Wh, Removable Integrated Battery (RIB) |
|
Controller |
TQ LED display, 3 assist modes (Eco, Mid, High), walk assist |
|
Charger |
TQ 4A charger |
