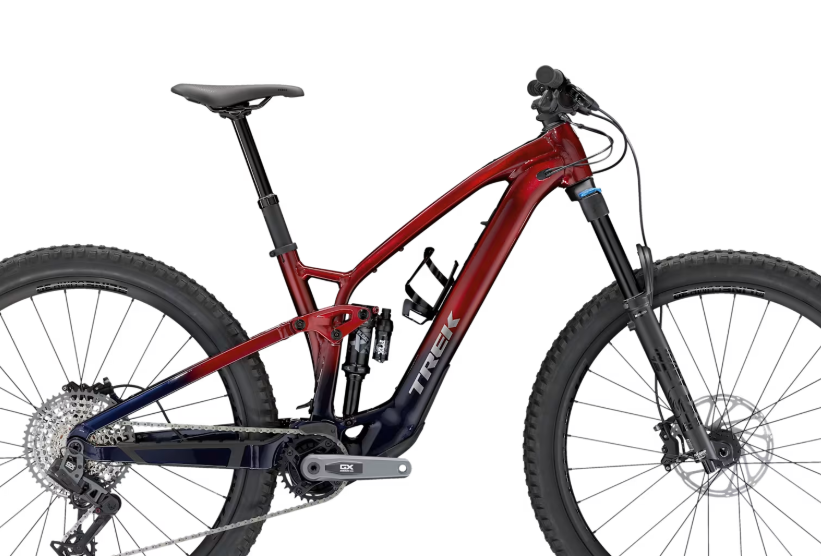

2025 Trek Fuel EXe 8 GX AXS T-Type – Electric Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Fuel EXe 8 GX AXS T-Type |
|
Vehicle Category |
Electric Mountain Bike |
|
Application |
Trail riding, climbing, descending |
|
Starting Price (2025) |
$5,899.97 USD (Sale from $7,999.99) |
|
Color Options |
Rage Red to Deep Dark Blue Fade, Teal Dark |
|
Sizes |
S, M, L, XL |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Alpha Platinum Aluminum, internal cable routing, Mino Link adjustable geometry, TQ HPR-50 motor integration, 148x12mm thru axle |
|
Fork |
Fox Rhythm 36, Float EVOL air spring, GRIP damper, 140mm travel, 15x110mm thru axle |
|
Rear Shock |
Fox Performance Float X, 2-position damper, 185x55mm |
|
Drivetrain Compatibility |
SRAM GX AXS T-Type, 12-speed |
|
Dropouts |
148x12mm thru axle (R), 15x110mm thru axle (F) |
|
Crank |
E*thirteen E*spec Race, 34T, 165mm (S), 170mm (M, L, XL) |
|
Chain |
SRAM GX Eagle T-Type, 12-speed |
|
Rear Derailleur |
SRAM GX AXS T-Type, 12-speed |
|
Shifters |

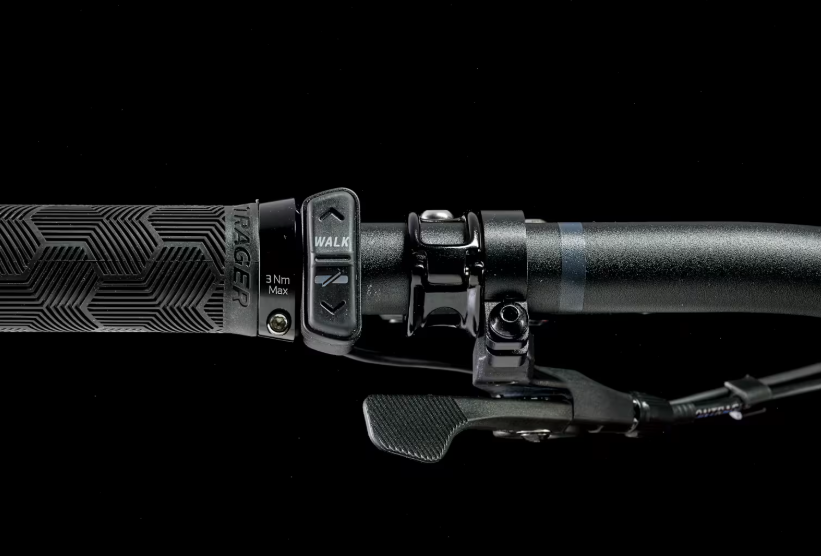

SRAM AXS Pod Controller, 12-speed |
|
Cassette |
SRAM XS-1275 T-Type, 10-52, 12-speed |
Components & Features
|
Specification |
Details |
|
Seating |
Bontrager Arvada, 138mm width |
|
Fuel Type |
Electric |
|
Wheels/Tyres |
Bontrager Line Comp 30, tubeless ready, 29x2.5in (S, M, L, XL) |
|
Wheel Size |
29in |
|
Brakes |
SRAM DB8 4-piston hydraulic disc, 200mm front rotor, 180mm rear rotor |
|
Brake Levers |
SRAM DB8 |
|
Handlebar |
Bontrager Line, alloy, 35mm, 27.5mm rise, 750mm width (S, M), 780mm width (L, XL) |
|
Stem |
Bontrager Elite, 35mm, 0 degree, 35mm (S), 45mm (M, L, XL) |
|
Headset |
Knock Block Integrated, 58-degree radius, cartridge bearing |
|
Saddle |
Bontrager Arvada, 138mm width |
|
Seatpost |
TranzX JD-YSP39, 100mm travel (S), 150mm travel (M, L, XL), internal routing, 34.9mm |
|
Grips |
Bontrager XR Trail Elite, nylon lock-on |
|
Front Hub |
Bontrager alloy, sealed bearing, 6-bolt, 15x110mm thru axle |
|
Rear Hub |
Bontrager alloy, sealed bearing, 6-bolt, SRAM XD freehub, 148x12mm thru axle |
|
Rims |
Bontrager Line Comp 30, tubeless ready, 30mm width, Presta valve |
|
Spokes |
14g stainless steel, black |
|
Exterior Features |
Mino Link adjustable geometry, tubeless ready wheels, internal cable routing, Knock Block |
|
Weight |
18.10 kg / 39.90 lbs (size M) |
|

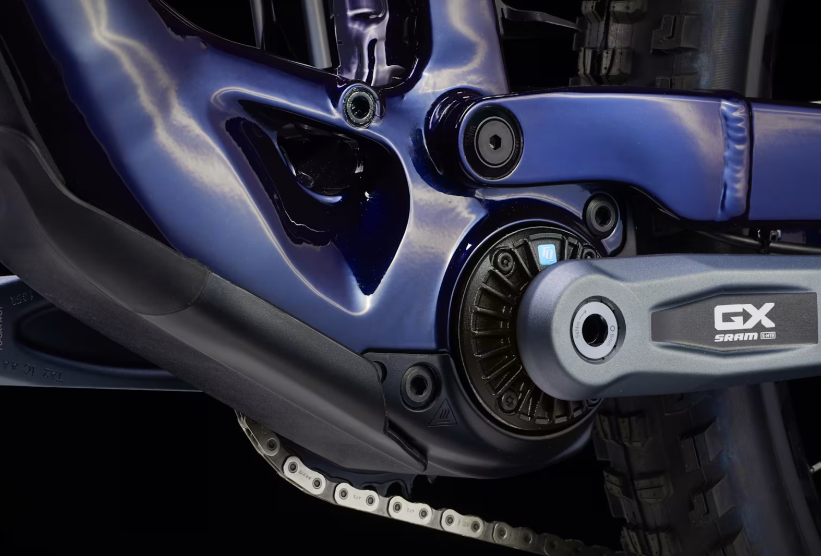

Drive Unit |
TQ HPR-50 harmonic pin ring drive, 50Nm, 250W, Class 1 (20 mph / 32 km/h max assist) |
|
Battery |
360Wh, integrated, removable |
|
Charger |
TQ 4A charger |
|

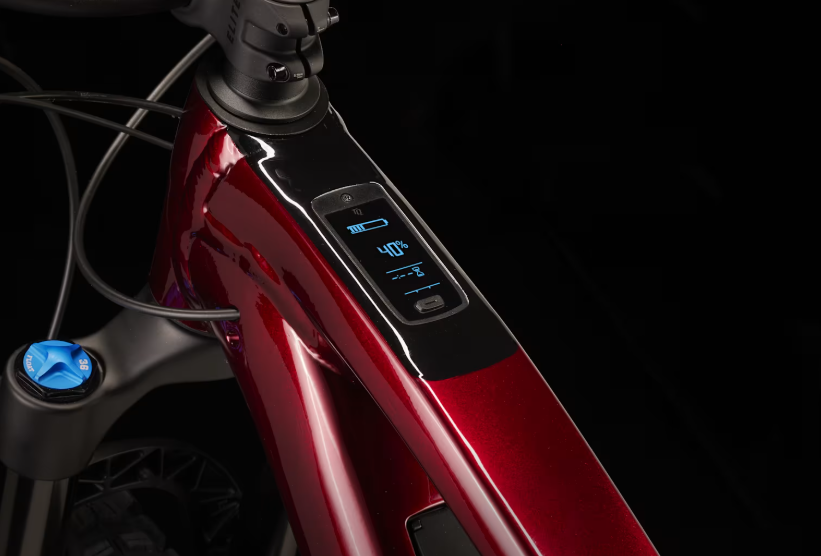

Display |
TQ top-tube display, displays speed, battery life, assist mode |
|
Certifications |
UL 2849 (e-bike system) |
