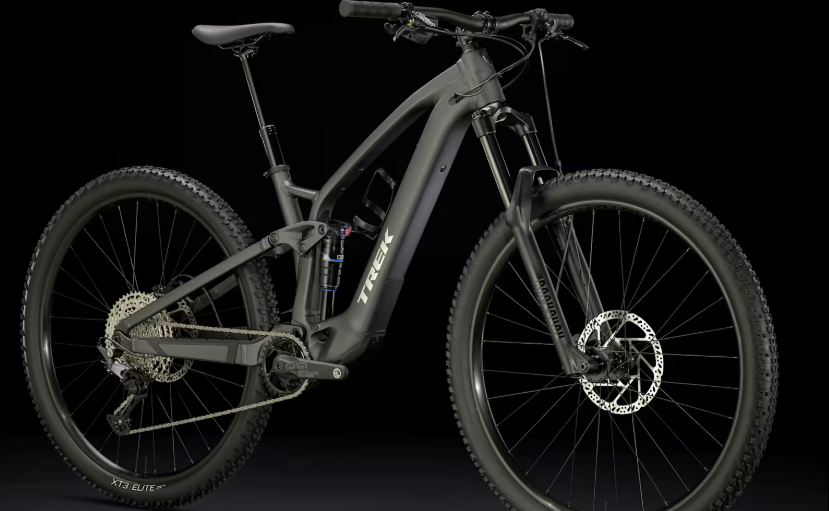

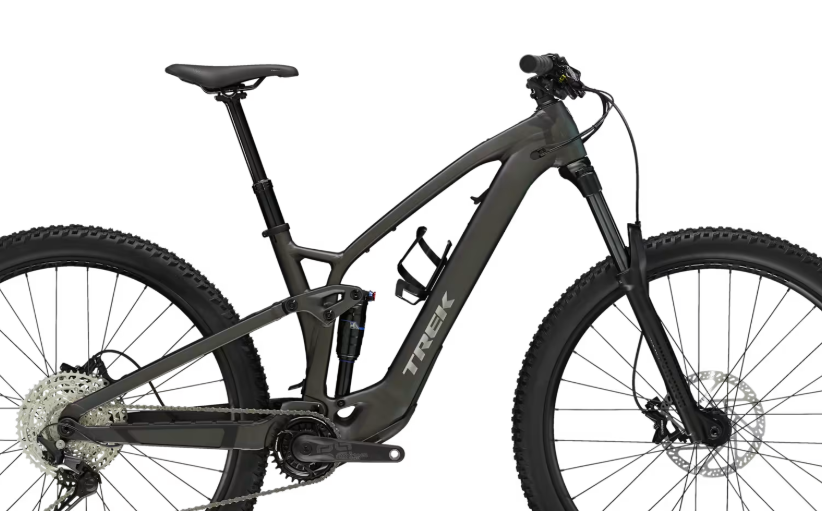

2025 Trek Fuel EXe 5 – Electric Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Fuel EXe 5 |
|
Vehicle Category |
Electric Mountain Bike |
|
Application |
Trail riding, climbing, descending |
|
Starting Price (2025) |
$3,499.93 USD (Sale from $5,499.99) |
|
Color Options |
Matte Dnister Black, Teal |
|
Sizes |
S, M, L, XL |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Alpha Platinum Aluminum, internal cable routing, Mino Link adjustable geometry, TQ HPR-50 motor integration, 148x12mm thru axle |
|
Fork |
RockShox Recon Silver, Solo Air spring, Motion Control damper, 140mm travel, 15x110mm thru axle |
|
Rear Shock |
RockShox Deluxe Select+ RT, 185x55mm |
|
Drivetrain Compatibility |
Shimano Deore M6100, 12-speed |
|
Dropouts |
148x12mm thru axle (R), 15x110mm thru axle (F) |
|
Crank |
E*thirteen E*spec Plus, 34T, 165mm (S), 170mm (M, L, XL) |
|
Chain |
Shimano Deore M6100, 12-speed |
|
Rear Derailleur |
Shimano Deore M6100, long cage, 51T max cog |
|
Shifters |
Shimano Deore M6100, 12-speed |
|
Cassette |
Shimano Deore M6100, 10-51, 12-speed |
Components & Features
|
Specification |
Details |
|
Seating |
Bontrager Arvada, 138mm width |
|
Fuel Type |
Electric |
|
Wheels/Tyres |
Bontrager Line Comp 30, tubeless ready, 29x2.5in (S, M, L, XL) |
|
Wheel Size |
29in |
|
Brakes |
Shimano MT420 4-piston hydraulic disc, 203mm front rotor, 180mm rear rotor |
|
Brake Levers |
Shimano MT4100 |
|
Handlebar |
Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 750mm width (S, M), 780mm width (L, XL) |
|
Stem |
Bontrager Comp, 31.8mm, 7 degree, 50mm (S, M), 60mm (L, XL) |
|
Headset |
Knock Block Integrated, 58-degree radius, cartridge bearing |
|
Saddle |
Bontrager Arvada, 138mm width |
|
Seatpost |
TranzX JD-YSP39, 100mm travel (S), 150mm travel (M, L, XL), internal routing, 34.9mm |
|
Grips |
Bontrager XR Trail Comp, nylon lock-on |
|
Front Hub |
Bontrager alloy, sealed bearing, 6-bolt, 15x110mm thru axle |
|
Rear Hub |
Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, 148x12mm thru axle |
|
Rims |
Bontrager Line Comp 30, tubeless ready, 30mm width, Presta valve |
|
Spokes |
14g stainless steel, black |
|
Exterior Features |
Mino Link adjustable geometry, tubeless ready wheels, internal cable routing, Knock Block |
|
Weight |
18.50 kg / 40.79 lbs (size M) |
|

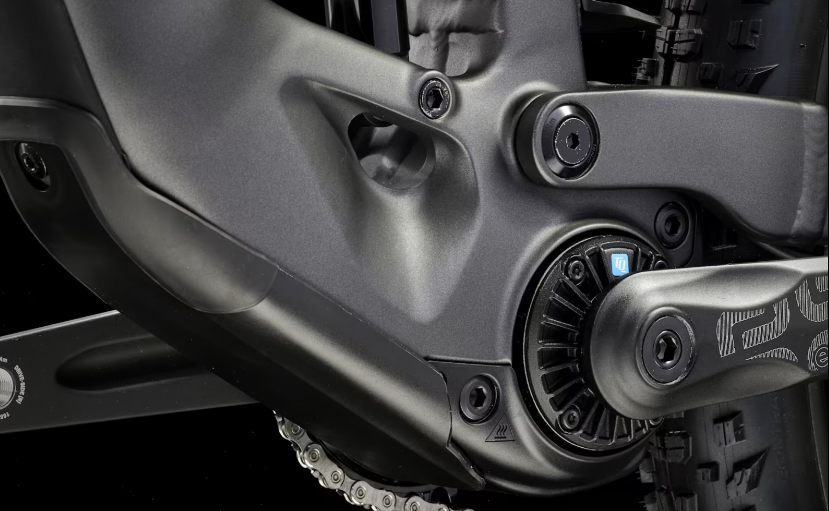

Drive Unit |
TQ HPR-50 harmonic pin ring drive, 50Nm, 250W, Class 1 (20 mph / 32 km/h max assist) |
|
Battery |
360Wh, integrated, removable |
|
Charger |
TQ 4A charger |
|

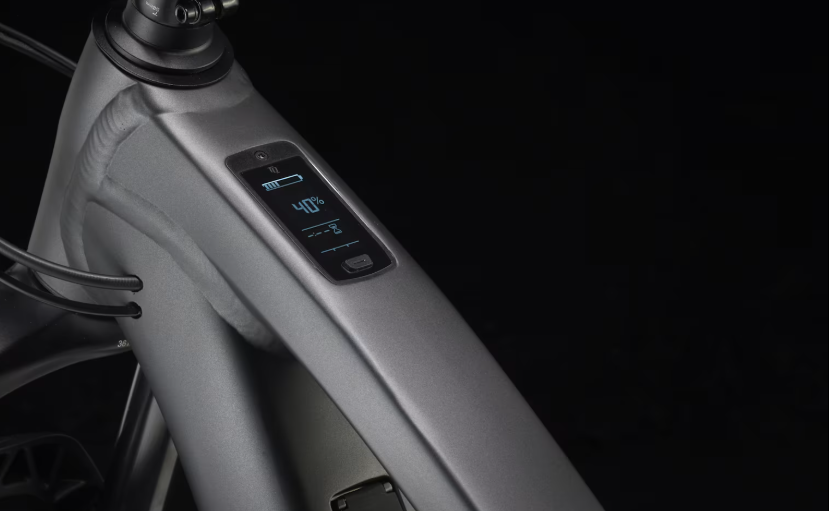

Display |
TQ top-tube display, displays speed, battery life, assist mode |
|
Certifications |
UL 2849 (e-bike system) |
