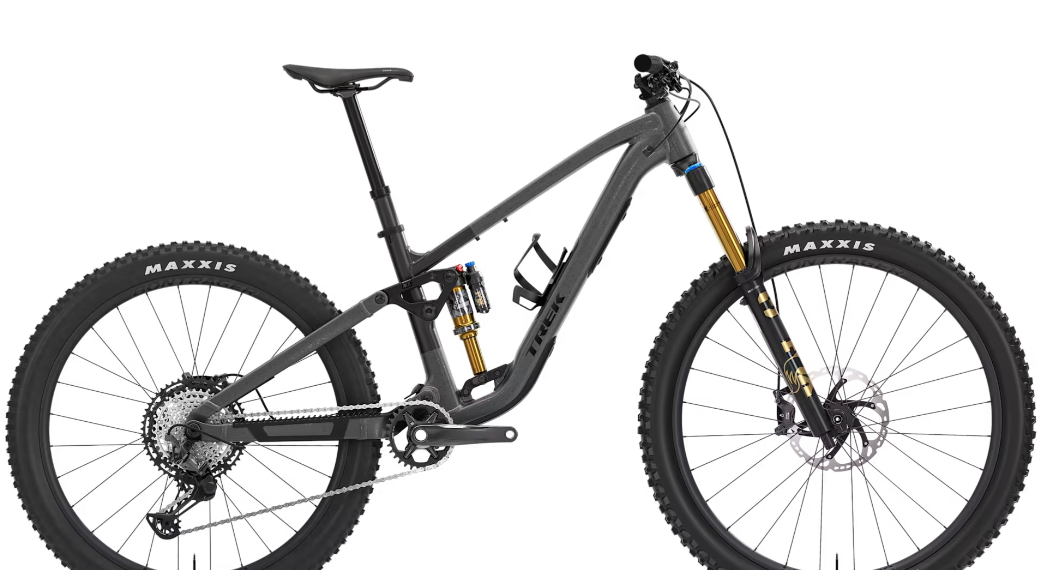

2025 Trek Fuel EX 9 XT Gen 7 – Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Fuel EX 9 XT Gen 7 |
|
Vehicle Category |
Mountain Bike |
|
Application |
Trail riding, climbing, descending |
|
Starting Price (2025) |
$4,999.99 USD |
|
Color Options |
Matte Juniper/Blue Sage Splatter, Lithium Grey/Trek Black Splatter, Deep Carmine |
|
Sizes |
S, M, L, XL |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Alpha NEXT Platinum Aluminum, 145mm travel, internal cable routing, adjustable geometry, 148x12mm thru axle |
|

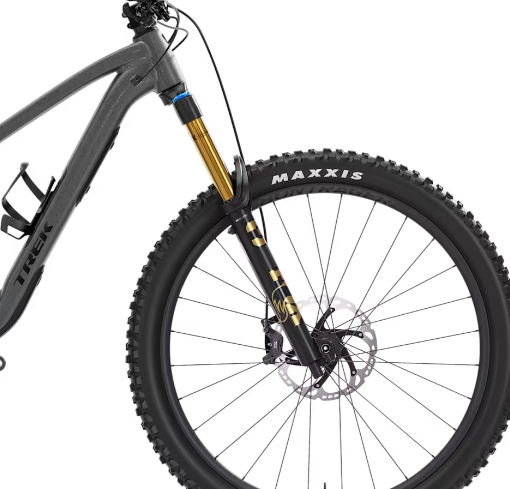

Fork |
Fox Factory 36, Float EVOL air spring, GRIP2 damper, 150mm travel |
|
Rear Shock |
Fox Factory Float X, 2-position damper, 145mm travel |
|
Drivetrain Compatibility |
Shimano XT, 12-speed |
|
Dropouts |
100x12mm thru axle (F), 148x12mm thru axle (R) |
|
Crank |
Shimano XT M8100, 30T, 170mm (S, M), 175mm (L, XL) |
|
Chain |
Shimano XT M8100, 12-speed |
|

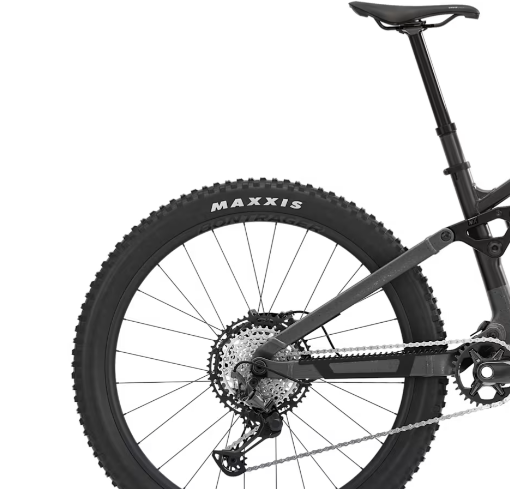

Rear Derailleur |
Shimano XT M8100, Shadow SGS, 51T max cog |
|
Shifters |
Shimano XT M8100, 12-speed |
|
Cassette |
Shimano XT M8100, 10-51, 12-speed |
Components & Features
|
Specification |
Details |
|
Seating |
Bontrager Arvada, hollow chromoly rails, 138mm width |
|
Wheels/Tyres |
Bontrager Line Comp 30, tubeless ready, 29x2.50" (S: 27.5x2.50" rear) |
|
Wheel Size |
29" (S: 29" front, 27.5" rear) |
|
Brakes |
Shimano XT M8120, 4-piston hydraulic disc, 180mm rotors |
|
Brake Levers |
Shimano XT M8100 |
|
Handlebar |
Bontrager Line, alloy, 35mm, 27.5mm rise, 780mm width |
|
Stem |
Bontrager Line, 35mm, 0 degree, 40mm (S, M), 50mm (L, XL) |
|
Headset |
Knock Block Integrated, 1-1/8in top, 1.5in bottom, sealed cartridge bearing |
|
Saddle |
Bontrager Arvada, hollow chromoly rails, 138mm width |
|
Seatpost |
Bontrager Line Dropper, 100mm (S), 150mm (M, L), 170mm (XL) |
|
Grips |
Bontrager XR Trail Elite, nylon lock-on |
|
Front Hub |
Bontrager alloy, sealed bearing, 6-bolt, 15x110mm thru axle |
|
Rear Hub |
Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, 148x12mm thru axle |
|
Rims |
Bontrager Line Comp 30, tubeless ready, 30mm width |
|
Spokes |
14g stainless steel, black |
|
Exterior Features |
Adjustable geometry, internal cable routing, Knock Block, Mino Link adjustable suspension, downtube guard |
|
Weight |
14.5 kg / 31.97 lbs (size M) |
