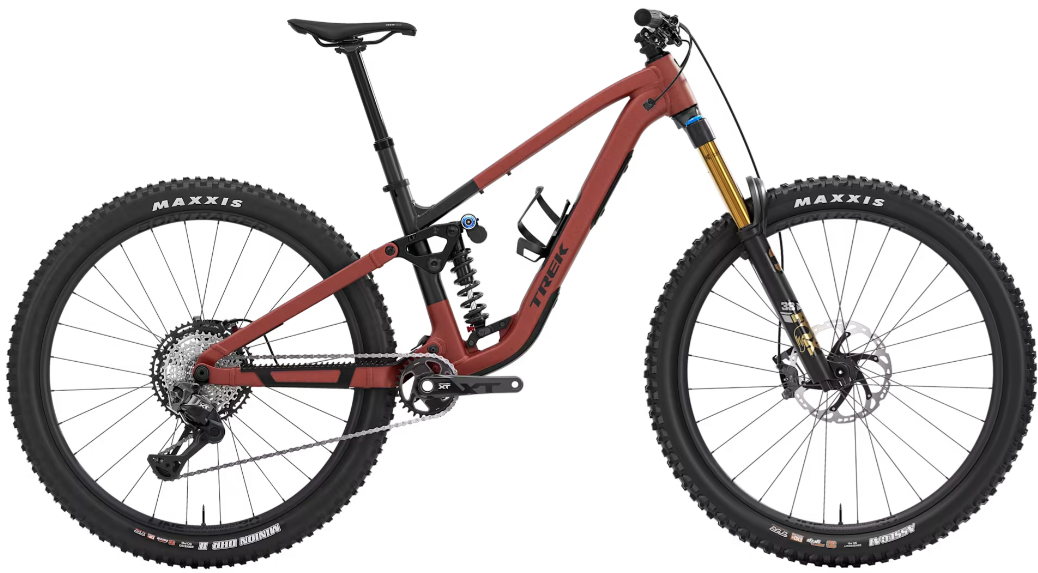

2025 Trek Fuel EX 9 XT Di2 Gen 7 – Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Fuel EX 9 XT Di2 Gen 7 |
|
Vehicle Category |
Mountain Bike |
|
Application |
Trail riding, climbing, descending |
|
Starting Price (2025) |
$5,499.99 USD |
|
Color Options |
Lithium Grey/Trek Black Splatter, Matte Juniper/Blue Sage Splatter, Deep Carmine |
|
Sizes |
S, M, L, XL |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Alpha NEXT Platinum Aluminum, 145mm travel, internal storage, adjustable leverage rate, guided internal routing, BSA 73, ISCG 05, ABP, UDH, Boost148 |
|

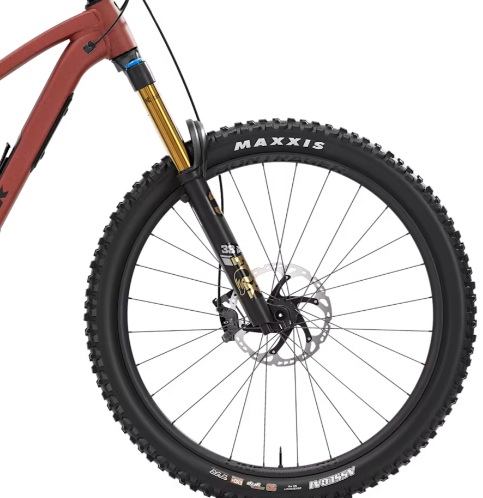

Fork |
Fox Factory 36, Float EVOL air spring, GRIP X2 damper, 44mm offset, Boost110, 15mm Kabolt X axle, 150mm travel |
|
Rear Shock |
Fox Factory Float X, 205mm x 60mm, 145mm travel |
|
Drivetrain Compatibility |
Shimano XT Di2, 12-speed |
|
Dropouts |
15x110mm thru axle (F), 148x12mm thru axle (R) |
|
Crank |
Shimano XT M8200, 30T, 55mm chainline, 170mm (S, M), 175mm (L, XL) |
|
Chain |
Shimano XT M8100, 12-speed |
|

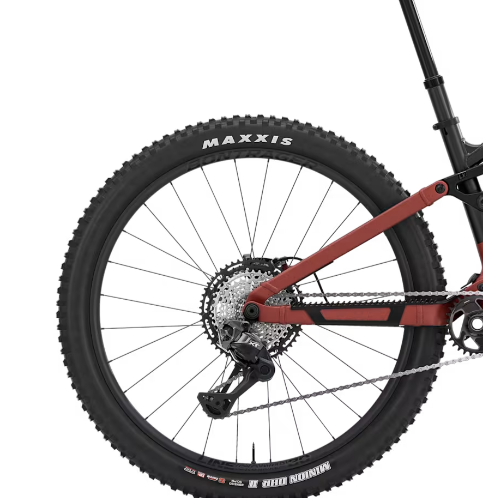

Rear Derailleur |
Shimano XT M8250 Di2, long cage |
|
Shifters |
Shimano XT M8250 Di2, 12-speed |
|
Cassette |
Shimano XT M8200, 10-51, 12-speed |
Components & Features
|
Specification |
Details |
|
Seating |
Verse Short Comp, steel rails, 145mm width |
|
Cargo Capacity |
Maximum total weight limit 136 kg / 300 lbs (bicycle, rider, and cargo) |
|
Wheels/Tyres |
Bontrager Line Comp 30, Tubeless Ready, 29x2.5" (S: 29x2.5" front, 27.5x2.5" rear) |
|
Wheel Size |
29" (S: 29" front, 27.5" rear) |
|
Brakes |
Shimano XT M8200, 4-piston hydraulic disc, 203mm/180mm rotors |
|
Brake Levers |
Shimano XT M8200 |
|
Handlebar |
Race Face Turbine, alloy, 35mm, 40mm rise, 780mm width |
|
Stem |
Bontrager Elite, 35mm, 0 degree, 45mm length |
|
Headset |
ZS headset, Knock Block Integrated, 1-1/8in top, 1.5in bottom, sealed cartridge bearing |
|
Saddle |
Verse Short Comp, steel rails, 145mm width |
|
Seatpost |
Bontrager Line Dropper, 150mm (S), 170mm (M), 200mm (L, XL), MaxFlow, internal routing, 34.9mm |
|
Grips |
Trek Line Elite, lock-on |
|
Front Hub |
Bontrager alloy, sealed bearing, 6-bolt, Boost110, 15mm thru axle |
|
Rear Hub |
Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle |
|
Rims |
Bontrager Line Comp 30, Tubeless Ready, 30mm width |
|
Spokes |
14g stainless steel, black |
|
Exterior Features |
Internal storage, adjustable leverage rate, guided internal routing, downtube guard, shuttle guard, ISCG 05, ABP, UDH, Knock Block |
|
Weight |
16.88 kg / 37.22 lbs (size M, with TLR sealant, no tubes) |
