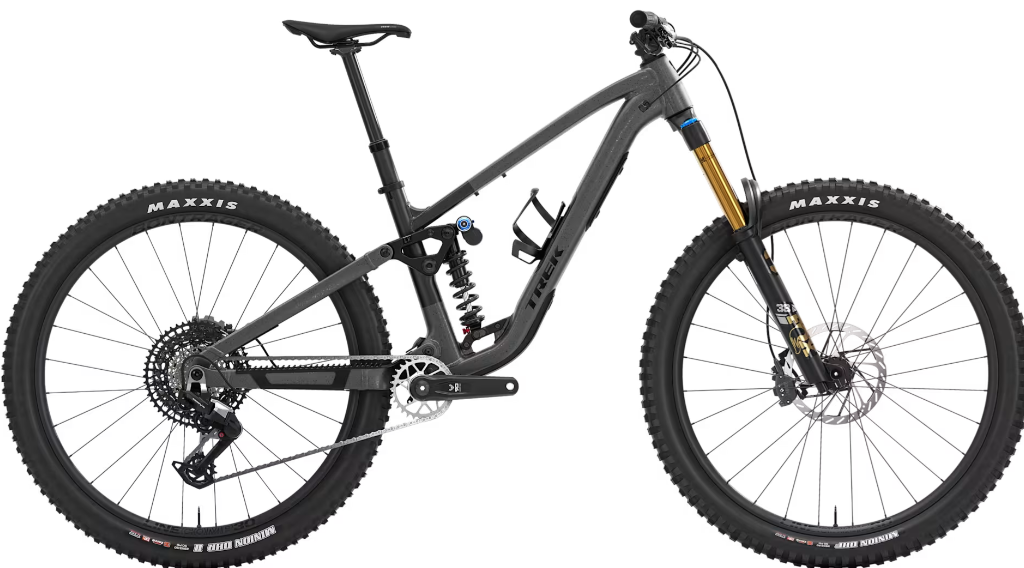

2025 Trek Fuel EX 9 Eagle 90 Gen 7 – Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Fuel EX 9 Eagle 90 Gen 7 |
|
Vehicle Category |
Mountain Bike |
|
Application |
Trail riding, climbing, descending |
|
Starting Price (2025) |
$4,999.99 USD |
|
Color Options |
Matte Sedona Red/Pennyflake Splatter, Deep Smoke/Teal, Lithium Grey/Trek Black Splatter, Matte Juniper/Blue Sage Splatter |
|
Sizes |
S, M, L, XL |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Alpha NEXT Platinum Aluminum, Mino Link adjustable geometry, internal cable routing, 145mm travel, 148x12mm thru axle |
|
Fork |
RockShox Lyrik Ultimate, AirWiz, DebonAir spring, Charger 3 RC2 damper, 150mm travel, 15x110mm thru axle |
|
Rear Shock |
RockShox Deluxe Ultimate RC2T, AirWiz, 185x55mm |
|
Drivetrain Compatibility |
SRAM GX Eagle, 12-speed |
|
Dropouts |
148x12mm thru axle (R), 15x110mm thru axle (F) |
|
Crank |
SRAM GX Eagle, 30T, DUB, 170mm (S, M, L, XL) |
|
Chain |
SRAM GX Eagle, 12-speed |
|
Rear Derailleur |
SRAM GX Eagle, 12-speed |
|
Shifters |
SRAM NX Eagle, 12-speed |
|
Cassette |
SRAM XG-1275 Eagle, 10-52, 12-speed |
Components & Features
|
Specification |
Details |
|
Seating |
Bontrager Arvada, 138mm width |
|
Wheels/Tyres |
Bontrager Line Comp 30, tubeless ready, 29x2.6in (M, L, XL), 27.5x2.6in (S) |
|
Wheel Size |
29in (M, L, XL), 27.5in (S) |
|
Brakes |
SRAM Maven Bronze, 4-piston hydraulic disc, 200mm front rotor, 180mm rear rotor |
|
Brake Levers |
SRAM Maven Bronze |
|
Handlebar |
Bontrager Line, alloy, 35mm, 27.5mm rise, 780mm width |
|
Stem |
Bontrager Elite, 35mm, 0 degree, 45mm (S, M, L, XL) |
|
Headset |
Knock Block Integrated, 58-degree radius, cartridge bearing |
|
Saddle |
Bontrager Arvada, 138mm width |
|
Seatpost |
TranzX JD-YSP39, 100mm travel (S), 150mm travel (M), 170mm travel (L, XL), internal routing, 34.9mm |
|
Grips |
Bontrager XR Trail Elite, nylon lock-on |
|
Front Hub |
Bontrager alloy, sealed bearing, 6-bolt, 15x110mm thru axle |
|
Rear Hub |
Bontrager alloy, sealed bearing, 6-bolt, SRAM XD freehub, 148x12mm thru axle |
|
Rims |
Bontrager Line Comp 30, tubeless ready, 30mm width, Presta valve |
|
Spokes |
14g stainless steel, black |
|
Exterior Features |
Mino Link adjustable geometry, tubeless ready wheels, internal cable routing, Knock Block, AirWiz technology |
|
Weight |
14.50 kg / 31.97 lbs (size M) |
