2025 Trek Fuel EX 9.8 Eagle 90 Gen 7 – Trail Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Fuel EX 9.8 Eagle 90 Gen 7 |
|
Vehicle Category |
Trail Mountain Bike |
|
Application |
Trail riding, all-mountain |
|
Starting Price (2025) |
$5,999.99 USD |
|
Color Options |
Gloss Dark Carmine/Matte Trek Black, Green-Black, Purple-Black, Reddark-Black |
|
Sizes |
S (29" front, 27.5" rear), M, L, XL, XXL |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
OCLV Mountain Carbon, internal storage, Mino Link adjustable geometry, Active Braking Pivot (ABP), 145mm travel, 148x12mm thru axle |
|
Fork |
RockShox Lyrik Ultimate, DebonAir spring, Charger 3 RC2 damper, 150mm travel, 44mm offset, 15x110mm thru axle |
|

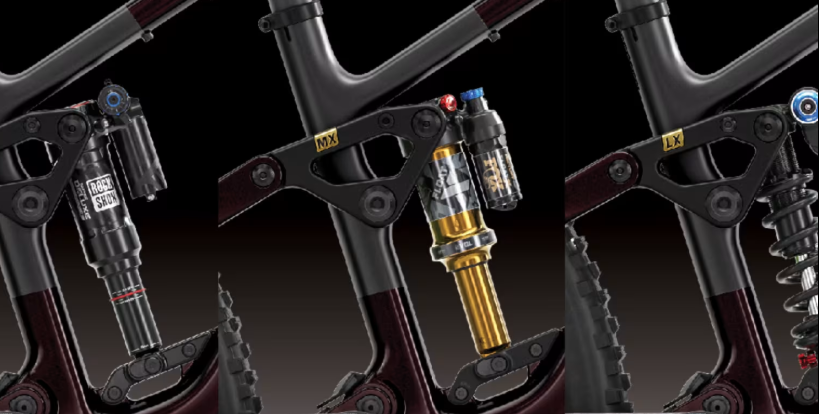

Rear Shock |
RockShox Deluxe Ultimate RC2T, 185x55mm, 145mm travel |
|
Drivetrain Compatibility |
SRAM Eagle 90, 1x12-speed |
|
Dropouts |
15x110mm thru axle (F), 148x12mm thru axle (R) |
|
Crank |
SRAM GX Eagle, 30T, DUB, 170mm (S, M, L, XL, XXL) |
|
Chain |
SRAM GX Eagle, 12-speed |
|
Rear Derailleur |
SRAM GX Eagle, 12-speed |
|
Shifters |
SRAM GX Eagle, 12-speed |
|
Cassette |
SRAM XG-1275, 10-52T, 12-speed |
Components & Features
|
Specification |
Details |
|
Seating |
Bontrager Arvada, 138mm width |
|
Cargo Capacity |
Internal storage (Bontrager BITS bag included), downtube water bottle mounts |
|
Wheels/Tyres |
Bontrager Line Comp 30, tubeless ready, 29x2.60" (S: 27.5x2.60" rear) |
|
Wheel Size |
29" (S: 29" front, 27.5" rear) in |
|
Brakes |
SRAM Maven Bronze, 4-piston hydraulic disc, 200mm rotor (F), 180mm rotor (R) |
|
Brake Levers |
SRAM Maven Bronze, hydraulic |
|
Handlebar |
Bontrager Line, alloy, 35mm, 27.5mm rise, 780mm width |
|
Stem |
Bontrager Elite, 35mm, 0 degree, 45mm length |
|
Headset |
Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom |
|
Saddle |
Bontrager Arvada, 138mm width |
|
Seatpost |
Bontrager Line Elite Dropper, 100mm travel (S), 150mm travel (M), 170mm travel (L, XL, XXL), 34.9mm, internal routing |
|
Seatpost Clamp |
Integrated, internal |
|
Grips |
Bontrager XR Trail Elite, nylon lock-on |
|
Front Hub |
Bontrager alloy, sealed bearing, 6-bolt, 15x110mm thru axle |
|
Rear Hub |
Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, SRAM XD freehub, 148x12mm thru axle |
|
Rims |
Bontrager Line Comp 30, tubeless ready, 28-hole, 29mm width (S: 27.5mm rear), Presta valve |
|
Spokes |
14g stainless steel |
|
Exterior Features |
Internal storage (Bontrager BITS bag included), Mino Link adjustable geometry, Active Braking Pivot (ABP), Knock Block, downtube water bottle mounts, customizable via Project One |
