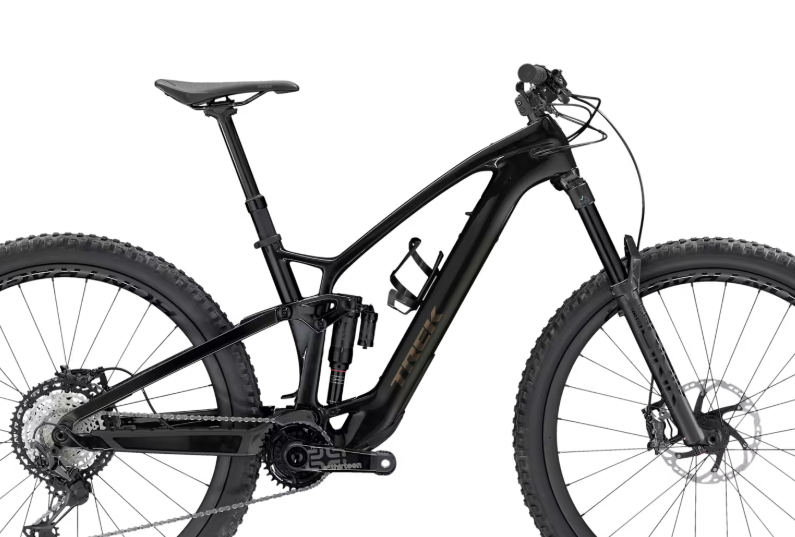

2025 Trek Fuel EXe 9.8 – Electric Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Fuel EXe 9.8 |
|
Vehicle Category |
Electric Mountain Bike |
|
Application |
Trail riding, e-mountain biking |
|
Starting Price (2025) |
$7,199.97 USD (original $9,899.99) |
|
Color Options |
Deep Smoke |
|
Sizes |
S, M, L, XL |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
OCLV Mountain Carbon, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145mm-160mm |
|
Fork |
RockShox Lyrik Select+, Charger 3 RC2 damper, 44mm offset, Boost 110, 15mm Kabolt X axle, 150mm travel |
|
Rear Shock |
RockShox SuperDeluxe Select+, 205mm x 60mm |
|
Drivetrain Compatibility |
Shimano XT, 12-speed |
|
Dropouts |
15x110mm thru axle (F), 148x12mm thru axle (R) |
|
Crank |
E*thirteen e*spec Race Carbon, 30T, 165mm length |
|
Chain |
Shimano XT M8100, 12-speed |
|
Rear Derailleur |
Shimano XT M8100, long cage |
|
Shifters |
Shimano XT M8100, 12-speed |
|
Cassette |
Shimano XT M8100, 10-51, 12-speed |
Components & Features
|
Specification |
Details |
|
Seating |
Bontrager Arvada, hollow chromoly rails, 138mm width |
|
Fuel Type |
Electric (TQ 360 Wh battery) |
|
Wheels/Tyres |
Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 29x2.5" |
|
Wheel Size |
29" in |
|
Brakes |
Shimano XT M8120, 4-piston hydraulic disc, 180mm rotors |
|
Brake Levers |
Shimano XT M8100 |
|
Handlebar |
Bontrager Line, alloy, 35mm, 27.5mm rise, 820mm width |
|
Stem |
Bontrager Line, 35mm, 0 degree, 40mm (S, M), 50mm (L, XL) |
|
Headset |
ZS, sealed cartridge bearing |
|
Saddle |
Bontrager Arvada, hollow chromoly rails, 138mm width |
|
Seatpost |
Bontrager Line Dropper, 100mm (S), 150mm (M, L), 170mm (XL), internal routing, 31.6mm |
|
Grips |
Bontrager XR Trail Elite, nylon lock-on |
|
Front Hub |
Bontrager alloy, sealed bearing, 6-bolt, 15x110mm thru axle |
|
Rear Hub |
Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, 148x12mm thru axle |
|
Rims |
Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 30mm width |
|
Spokes |
14g stainless steel, black |
|
Exterior Features |
Internal storage, adjustable leverage rate, guided internal routing, downtube guard, shuttle guard, ISCG 05, ABP, UDH |
|
Weight |
18.1 kg / 39.90 lbs (size M, with TLR sealant, no tubes) |
|

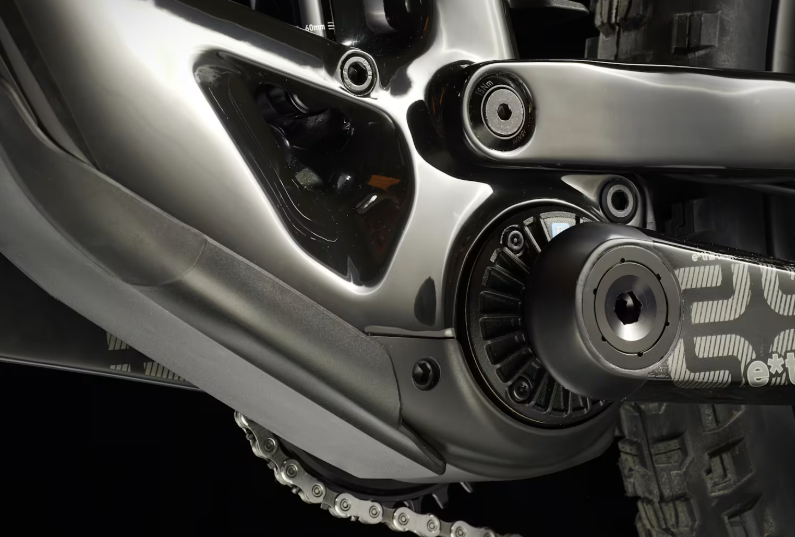

Drive Unit |
TQ HPR-50, 50 Nm, 250W max nominal power |
|
Battery |
TQ 360 Wh integrated battery |
|
Charger |
TQ 4A charger |
|
Display |
TQ LED display with Bluetooth and ANT+ connectivity |
|
Certifications |
UL 2849 by ACT Labs LLC |
