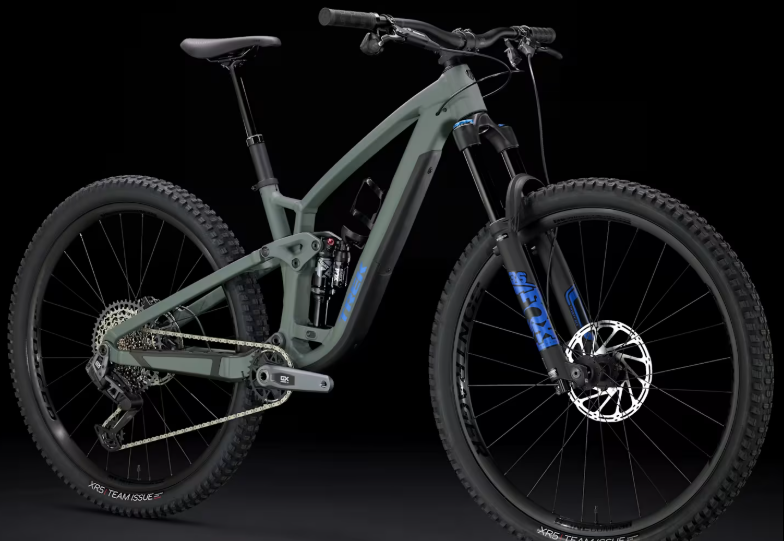

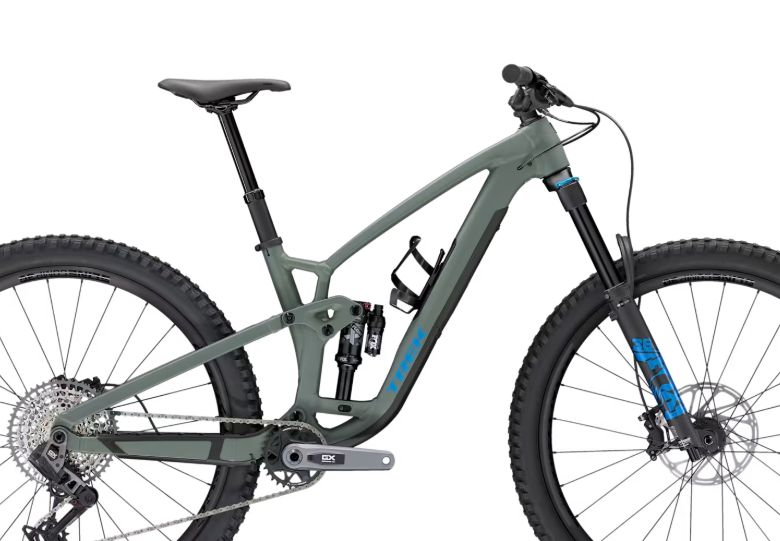

2025 Trek Fuel EX 8 GX AXS T-Type Gen 6 – Trail Full Suspension Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Fuel EX 8 GX AXS T-Type Gen 6 |
|
Vehicle Category |
Trail Full Suspension Mountain Bike |
|
Application |
Trail riding, enduro, all-mountain |
|
Starting Price (2025) |
$3,999.97 USD (sale), $4,999.99 USD (original) |
|
Color Options |
Matte Keswick, Tealdark |
|
Sizes |
XS (27.5" wheel), S (27.5" wheel), S (29" wheel), M (29" wheel), ML (29" wheel), L (29" wheel), XL (29" wheel), XXL (29" wheel) |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |

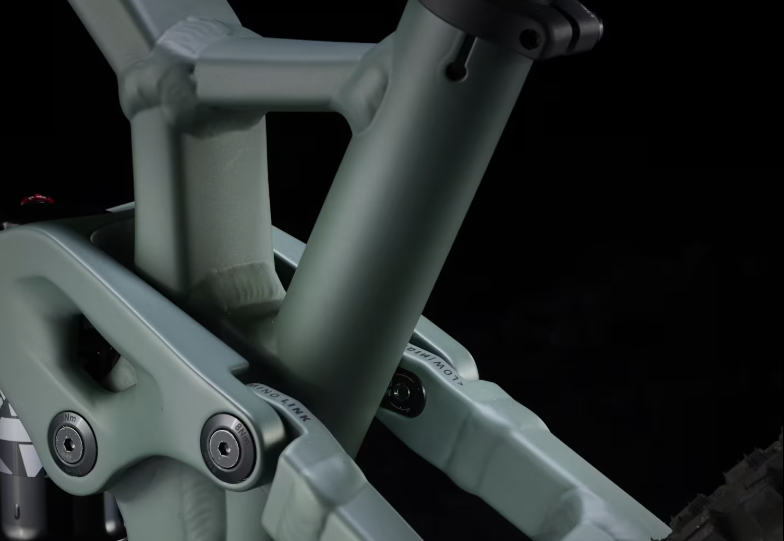

Alpha Platinum Aluminum, Active Braking Pivot (ABP), internal storage, Mino Link adjustable geometry, 140mm travel, 148x12mm thru axle |
|
Fork |
Fox Rhythm 36, Float EVOL air spring, GRIP damper, 150mm travel, 44mm offset, 15x110mm thru axle |
|
Rear Shock |
Fox Performance Float X, 2-position damper, 185x55mm, 140mm travel |
|
Drivetrain Compatibility |
SRAM GX Eagle AXS T-Type, 1x12-speed, wireless |
|
Dropouts |
148x12mm thru axle (R), 15x110mm thru axle (F) |
|
Crank |
SRAM GX Eagle T-Type, 30T, 165mm (XS, S), 170mm (M, ML, L, XL, XXL) |
|
Chain |
SRAM GX Eagle T-Type, 12-speed |
|
Rear Derailleur |
SRAM GX Eagle AXS T-Type, wireless |
|
Shifters |
SRAM AXS Pod, wireless, 12-speed |
|
Cassette |
SRAM XS-1275 T-Type, 10-52T, 12-speed |
Components & Features
|
Specification |
Details |
|
Seating |
Bontrager Arvada, 138mm width |
|
Cargo Capacity |

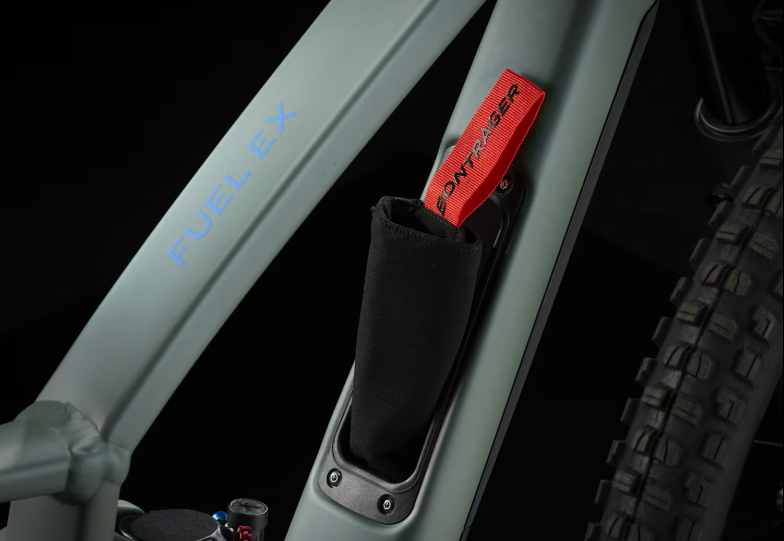

Internal storage (Bontrager BITS bag included), downtube water bottle mounts |
|
Wheels/Tyres |
Bontrager Line Comp 30, tubeless ready, 29x2.50" (S, M, ML, L, XL, XXL), 27.5x2.50" (XS, S) |
|
Wheel Size |
29" (S, M, ML, L, XL, XXL), 27.5" (XS, S) |
|
Brakes |
SRAM Code Bronze Stealth, 4-piston hydraulic disc, 200mm rotor (F), 180mm rotor (R) |
|
Brake Levers |
SRAM Code Bronze Stealth, hydraulic |
|
Handlebar |
Bontrager Line, alloy, 35mm, 27.5mm rise, 780mm width |
|
Stem |
Bontrager Elite, 35mm, 0 degree, 45mm length |
|
Headset |
Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom |
|
Saddle |
Bontrager Arvada, 138mm width |
|
Seatpost |
Bontrager Line Elite Dropper, 100mm travel (XS, S), 150mm travel (M, ML), 170mm travel (L, XL, XXL), 34.9mm, internal routing |
|
Seatpost Clamp |
Integrated, internal |
|
Grips |
Bontrager XR Trail Elite, nylon lock-on |
|
Front Hub |
Bontrager alloy, sealed bearing, 6-bolt, 15x110mm thru axle |
|
Rear Hub |
Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, SRAM XD freehub, 148x12mm thru axle |
|
Rims |
Bontrager Line Comp 30, tubeless ready, 28-hole, 29mm width (S, M, ML, L, XL, XXL), 27.5mm width (XS, S), Presta valve |
|
Spokes |
14g stainless steel |
|
Exterior Features |
Active Braking Pivot (ABP), internal storage (Bontrager BITS bag included), Mino Link adjustable geometry, Knock Block, downtube water bottle mounts |
