Specification

Details

Model

Fuel EX 7 Gen 6

Vehicle Category

Full Suspension Mountain Bike

Application

Trail riding, enduro, all-mountain

Starting Price (2025)

$2,799.93 USD (sale), $3,699.99 USD (original)

Color Options

Deep Dark Blue, Orange/Black

Sizes

XS (27.5" wheel), S (27.5" wheel), S (29" wheel), M (29" wheel), ML (29" wheel), L (29" wheel), XL (29" wheel), XXL (29" wheel)

Specification

Details

Frame

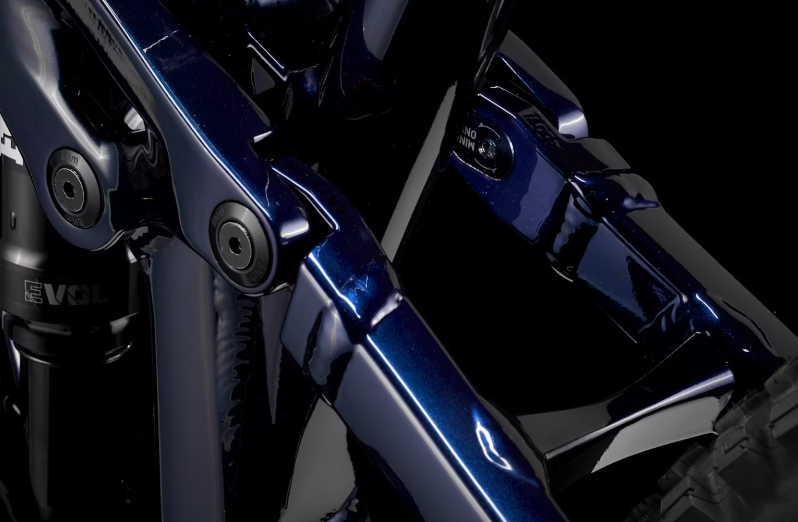

Alpha Platinum Aluminum, adjustable geometry (Mino Link), internal storage, tapered head tube, internal cable routing, BSA 73mm, Active Braking Pivot, 140mm travel, 148x12mm thru axle

Fork

RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44mm offset, 150mm travel, 15mm Maxle Stealth axle

Rear Shock

Fox Performance Float X, 2-position damper, 185x55mm, 140mm travel

Drivetrain Compatibility

SRAM NX Eagle, 1x12-speed

Dropouts

148x12mm thru axle (R), 15x110mm thru axle (F)

Crank

SRAM NX Eagle, DUB, 30T steel ring, 55mm chainline, 170mm length (XS, S), 175mm length (M, ML, L, XL, XXL)

Chain

SRAM NX Eagle, 12-speed

Rear Derailleur

SRAM NX Eagle

Shifters

SRAM NX Eagle, 12-speed

Cassette

SRAM PG-1230 NX Eagle, 11-50T, 12-speed

Specification

Details

Seating

Bontrager Arvada, steel rails, 138mm width

Cargo Capacity

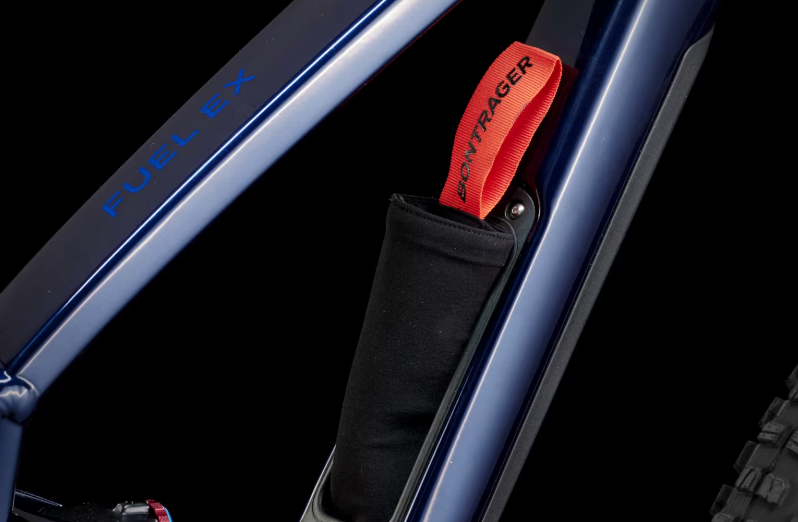

Internal storage, downtube water bottle mounts

Wheels/Tyres

Bontrager Line Comp 30, tubeless ready, 27.5x2.50" (XS, S), 29x2.50" (S, M, ML, L, XL, XXL)

Wheel Size

27.5" (XS, S), 29" (S, M, ML, L, XL, XXL)

Brakes

Shimano MT420, 4-piston hydraulic disc, 203mm rotor (F), 180mm rotor (R)

Brake Levers

Shimano MT420 hydraulic

Handlebar

Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, width: 750mm (XS, S), 780mm (M, ML, L, XL, XXL)

Stem

Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, length: 35mm (XS, S), 45mm (M, ML, L, XL, XXL)

Headset

Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom

Saddle

Bontrager Arvada, steel rails, 138mm width

Seatpost

TranzX JD-YSP39, 100mm travel (XS, S), 130mm travel (M, ML), 150mm travel (L, XL, XXL), 34.9mm, internal routing

Seatpost Clamp

Integrated, internal

Grips

Bontrager XR Trail Comp, nylon lock-on

Front Hub

Bontrager alloy, sealed bearing, 6-bolt, 15x110mm thru axle

Rear Hub

Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, SRAM XD freehub, 148x12mm thru axle

Rims

Bontrager Line Comp 30, tubeless ready, 30mm inner width, 32-hole

Spokes

Stainless steel, 14g

Exterior Features

Internal storage, adjustable geometry (Mino Link), tubeless ready wheels, downtube water bottle mounts

Weight

15.05 kg (M, estimated)
