Specification

Details

Model

Fuel EX 5 Gen 6

Vehicle Category

Full Suspension Mountain Bike

Application

Trail riding, all-mountain, enduro

Starting Price (2025)

$2,499.97 USD (sale), $2,899.99 USD (original)

Color Options

Matte Blue Sage, Grey/Black, Teal

Sizes

XS (27.5" wheel), S (27.5" wheel), S (29" wheel), M (29" wheel), ML (29" wheel), L (29" wheel), XL (29" wheel), XXL (29" wheel)

Specification

Details

Frame

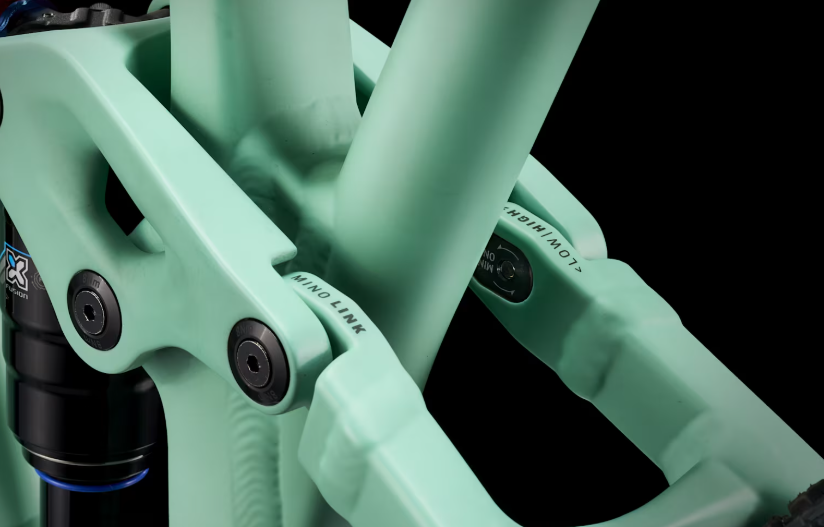

Alpha Platinum Aluminum, ABP suspension, Mino Link adjustable geometry, internal storage, tapered head tube, Knock Block, Control Freak internal routing, downtube guard, ISCG 05 mount, 140mm travel, 148x12mm thru axle

Fork

RockShox Recon Silver, Solo Air spring, Motion Control damper, tapered steerer, 44mm offset, 150mm travel (140mm XS/S), 15x110mm thru axle

Rear Shock

X-Fusion Pro 2, 2-position damper, 185x55mm, 140mm travel

Drivetrain Compatibility

Shimano Deore, 1x12-speed

Dropouts

148x12mm thru axle (R), 15x110mm thru axle (F)

Crank

Shimano Deore M6100, 30T, 55mm chainline, 170mm length (XS, S), 175mm length (M, ML, L, XL, XXL)

Chain

Shimano Deore M6100, 12-speed

Rear Derailleur

Shimano Deore M6100

Shifters

Shimano Deore M6100, 12-speed

Cassette

Shimano Deore M6100, 10-51T, 12-speed

Specification

Details

Seating

Bontrager Arvada, steel rails, 138mm width

Cargo Capacity

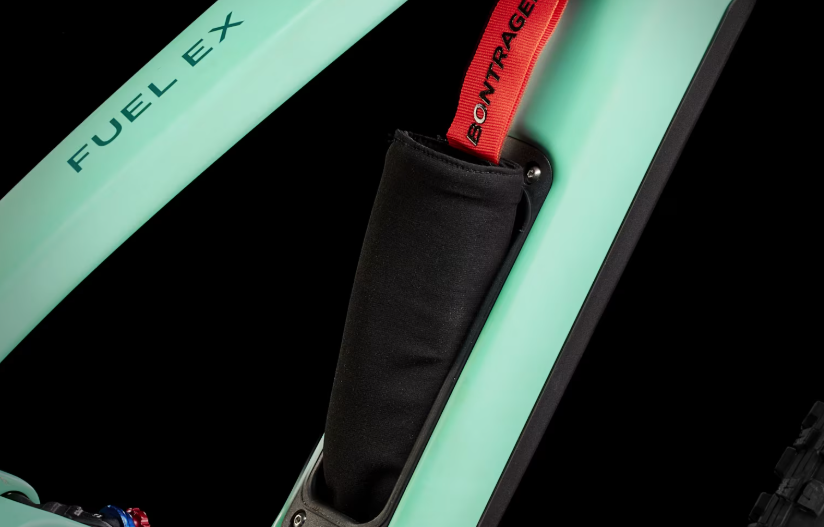

Internal storage (Bontrager BITS bag included), downtube water bottle mounts

Wheels/Tyres

Bontrager XR4 Team Issue, tubeless ready, 27.5x2.40" (XS, S), 29x2.40" (S, M, ML, L, XL, XXL)

Wheel Size

27.5" (XS, S), 29" (S, M, ML, L, XL, XXL)

Brakes

Shimano MT410, hydraulic disc, 180mm rotor (XS/S), 200mm rotor (M-XXL front), 180mm rotor (all sizes rear)

Brake Levers

Shimano MT410, hydraulic

Handlebar

Bontrager alloy, 31.8mm, 15mm rise, 750mm width

Stem

Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 35mm length (XS, S), 45mm length (M, ML, L, XL, XXL)

Headset

Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom

Saddle

Bontrager Arvada, steel rails, 138mm width

Seatpost

TranzX JD-YSP18, 100mm travel (XS, S), 130mm travel (M, ML, L, XL, XXL), internal routing, 31.6mm, 361mm length (XS, S), 425mm length (M, ML, L, XL, XXL)

Seatpost Clamp

Integrated, internal

Grips

Bontrager XR Trail Comp, nylon lock-on

Front Hub

Bontrager alloy, sealed bearing, 6-bolt, 15x110mm thru axle

Rear Hub

Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, 148x12mm thru axle

Rims

Bontrager Line Comp 30, tubeless ready, 30mm inner width, 32-hole

Spokes

Stainless steel, 14g

Exterior Features

Internal storage (Bontrager BITS bag included), adjustable geometry (Mino Link), tubeless ready wheels, downtube guard, ISCG 05 mount, Knock Block, Control Freak internal routing

Weight

15.35 kg (M, estimated)
