2025 Trek Fuel EX 5 Gen 5 – Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Fuel EX 5 Gen 5 |
|
Vehicle Category |
Mountain Bike |
|
Application |
Trail riding, all-mountain |
|
Starting Price (2025) |
$1,799.93 USD (original $2,699.99) |
|
Color Options |
Matte Dnister Black |
|
Sizes |
XS (27.5" wheel), S (27.5" wheel), S (29" wheel), M (29" wheel), ML (29" wheel), L (29" wheel), XL (29" wheel) |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Alpha Platinum Aluminum, 130mm travel, internal storage, adjustable geometry, guided internal routing, downtube guard, BSA 73, ISCG 05, ABP, Boost148 |
|
Fork |
RockShox Recon Silver, Solo Air spring, Motion Control damper, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 140mm travel |
|
Rear Shock |
X-Fusion Pro 2, 185x50mm |
|
Drivetrain Compatibility |
Shimano Deore, 12-speed |
|
Dropouts |
15x110mm thru axle (F), 148x12mm thru axle (R) |
|

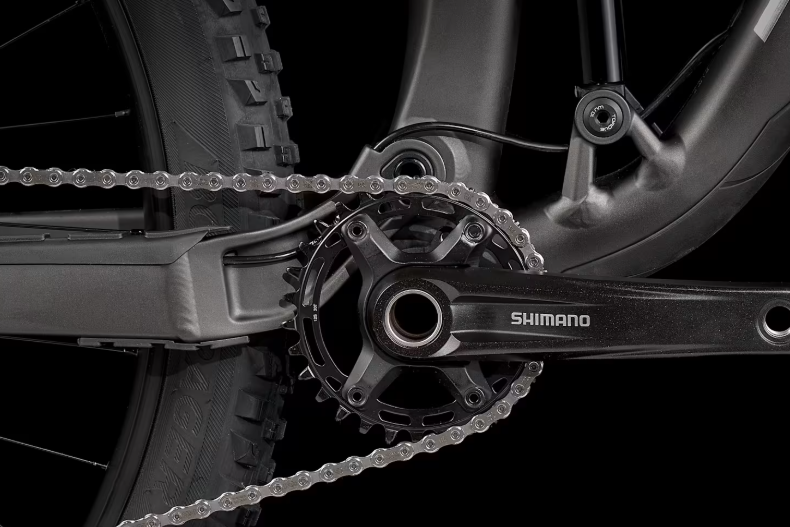

Crank |
Shimano Deore M6100, 30T, 170mm (XS, S), 175mm (M, ML, L, XL) |
|
Chain |
Shimano Deore M6100, 12-speed |
|

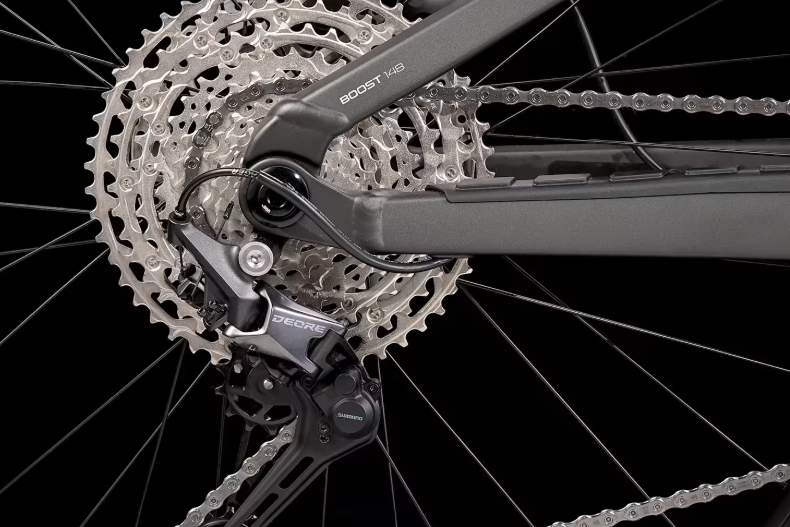

Rear Derailleur |
Shimano Deore M6100 |
|
Shifters |
Shimano Deore M6100, 12-speed |
|
Cassette |
Shimano Deore M6100, 10-51, 12-speed |
Components & Features
|
Specification |
Details |
|
Seating |
Bontrager Arvada, hollow chromoly rails, 138mm width |
|
Cargo Capacity |
Internal storage, maximum cargo capacity not specified |
|
Wheels/Tyres |
Bontrager Line TLR 30, alloy, Tubeless Ready, 29x2.6" (XS, S: 27.5x2.6") |
|
Wheel Size |
29" (XS, S: 27.5") in |
|

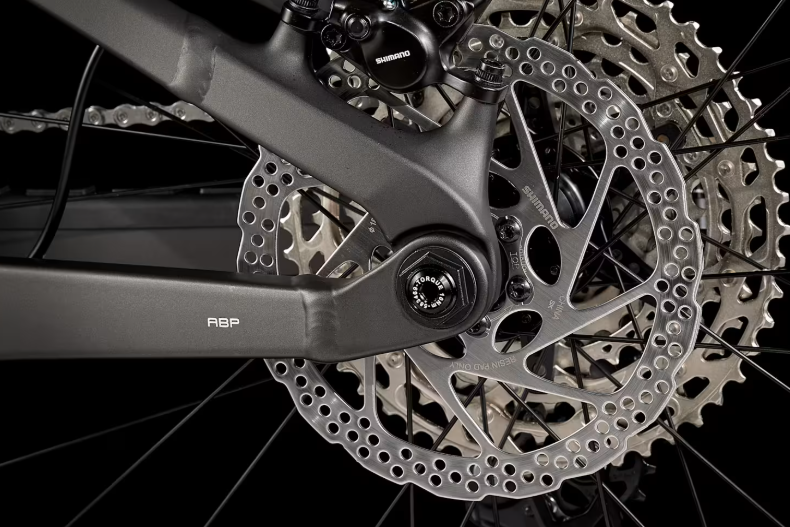

Brakes |
Shimano MT200 hydraulic disc, 180mm rotors |
|
Brake Levers |
Shimano MT200 |
|
Handlebar |
Bontrager alloy, 31.8mm, 15mm rise, 750mm width |
|
Stem |
Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm (XS, S), 60mm (M, ML, L, XL) |
|
Headset |
Knock Block Integrated, sealed cartridge bearing |
|
Saddle |
Bontrager Arvada, hollow chromoly rails, 138mm width |
|
Seatpost |
TranzX JD-YSP39, 100mm (XS, S), 150mm (M, ML), 170mm (L, XL), internal routing, 34.9mm |
|
Grips |
Bontrager XR Trail Comp, nylon lock-on |
|
Front Hub |
Bontrager alloy, sealed bearing, 6-bolt, 15x110mm thru axle |
|
Rear Hub |
Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, 148x12mm thru axle |
|
Rims |
Bontrager Line TLR 30, alloy, Tubeless Ready, 30mm width |
|
Spokes |
14g stainless steel, black |
|
Exterior Features |
Internal storage, adjustable geometry, guided internal routing, downtube guard, ISCG 05, ABP |
|
Weight |
15.0 kg / 33.07 lbs (size M) |
