2025 Trek Fetch+ 4 – Electric Cargo Bike
Specifications
|
Specification |
Details |
|
Model |
Fetch+ 4 |
|
Vehicle Category |
Electric Cargo Bike |
|
Application |
Cargo transport, family commuting, recreational riding |
|
Starting Price (2025) |
$5,999.97 USD (original $8,499.99) |
|
Color Options |
Lava, Black |
|
Sizes |
One size fits most |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Alpha Gold Aluminum, front cargo box, internal routing, rack and fender mounts, BSA 73, kickstand mount |
|
Fork |
Fetch+ 4 cargo-specific, steel, tapered steerer, 20mm thru axle |
|
Drivetrain Compatibility |
Shimano CUES U6000, 10-speed |
|
Dropouts |
20x110mm thru axle (F), 12x148mm thru axle (R) |
|
Crank |
FSA Bosch CK-220, 36T, 170mm |
|
Chain |
Shimano LG500, 10/11-speed |
|
Rear Derailleur |
Shimano CUES U6000 GS |
|
Shifters |
Shimano CUES U6000, 10-speed |
|
Cassette |
Shimano CUES LG400, 11-48, 10-speed |
Components & Features
|
Specification |
Details |
|
Seating |
Bontrager Boulevard, 260mm width; two child seats pre-installed in front cargo box |
|
Fuel Type |
Electric (Bosch Performance Line CX motor) |
|
Cargo Capacity |
Front cargo box: 79 kg (175 lbs); rear rack: 25 kg (55 lbs); total: 104 kg (229 lbs) |
|
Wheels/Tyres |
Bontrager H2 Comp, wire bead, 30 tpi, 20x2.6" (front), 27.5x2.4" (rear) |
|
Wheel Size |
20" (front), 27.5" (rear) |
|
Brakes |
Shimano MT420, 4-piston hydraulic disc, 180mm rotors |
|
Brake Levers |
Shimano MT420 |
|
Handlebar |
Bontrager alloy, 31.8mm, 15mm rise, 720mm width |
|
Stem |
Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm |
|
Headset |
Semi-integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom |
|
Saddle |
Bontrager Boulevard, 260mm width |
|
Seatpost |
Bontrager alloy, 31.6mm, 12mm offset, 400mm |
|
Grips |
Bontrager Satellite Elite, lock-on |
|
Front Hub |
Bontrager alloy, sealed bearing, 6-bolt, 20x110mm thru axle |
|
Rear Hub |
Bontrager alloy, sealed bearing, 6-bolt, Shimano 10-speed freehub, 12x148mm thru axle |
|
Rims |
Bontrager Connection, alloy, double-wall, 32-hole, 20mm width (front), 24mm width (rear) |
|
Spokes |
14g stainless steel, black |
|
Pedals |
VP-537 nylon platform |
|
Exterior Features |
Front cargo box, internal routing, rack and fender mounts, integrated lights, kickstand, child seat mounts |
|
Weight |
37.0 kg / 81.57 lbs |
|
Drive Unit |

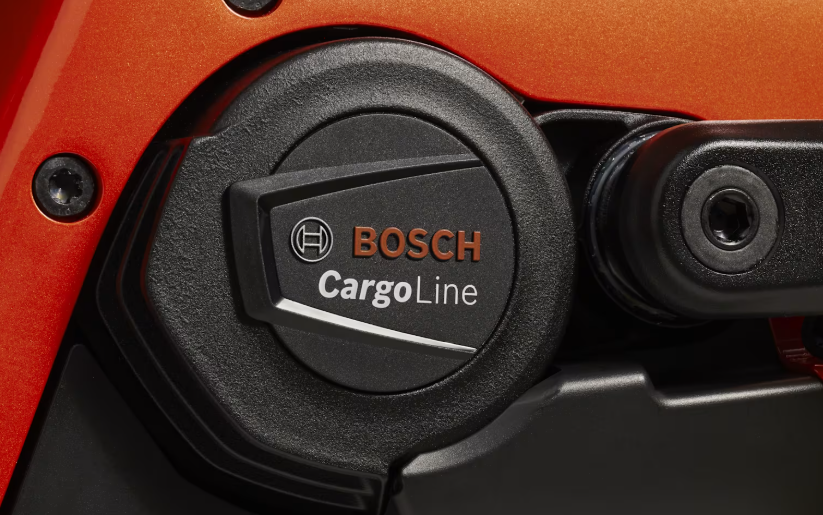

Bosch Performance Line CX, 85Nm torque, Class 1 (20 mph max assist) |
|
Battery |

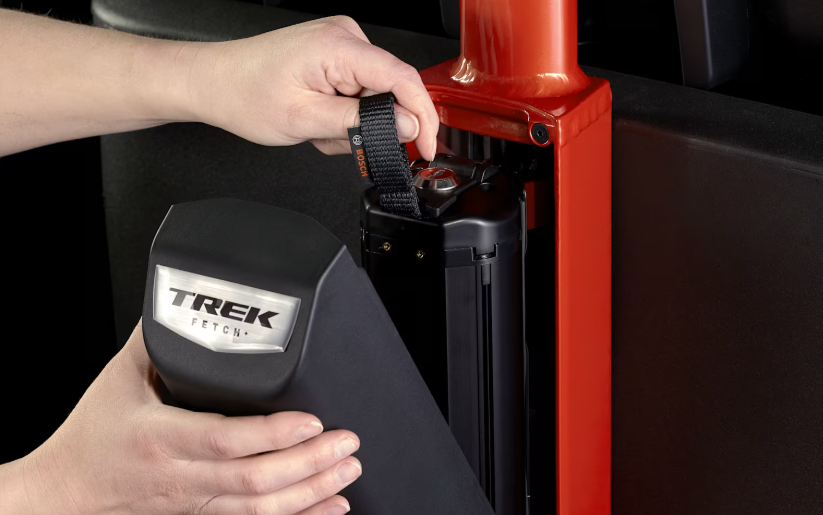

Bosch PowerTube, 750Wh |
|
Charger |
Bosch Standard Charger, 4A |
|
Display |
Bosch Kiox 300 |
|
Certifications |
UL 2849 (system certification for e-bike safety) |
