Specification

Details

Model

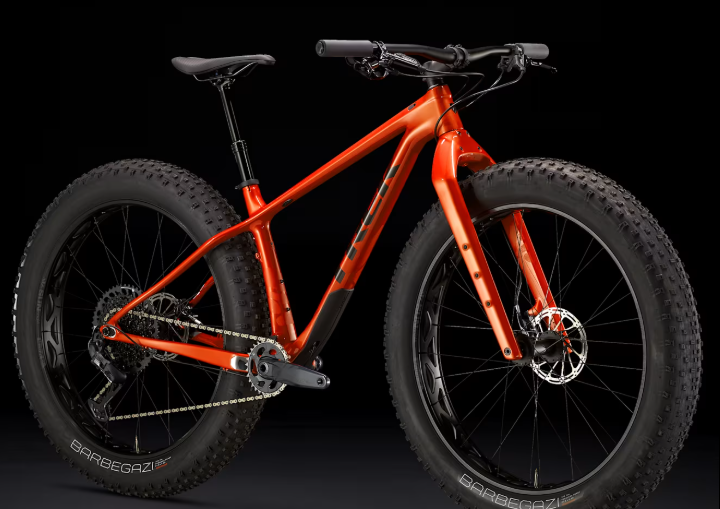

Farley 9.6

Vehicle Category

Fat Bike

Application

Fat tire biking, snow riding, adventure, bikepacking

Starting Price (2025)

$3,699.99 USD

Color Options

Lava

Sizes

S, M, L, XL

Specification

Details

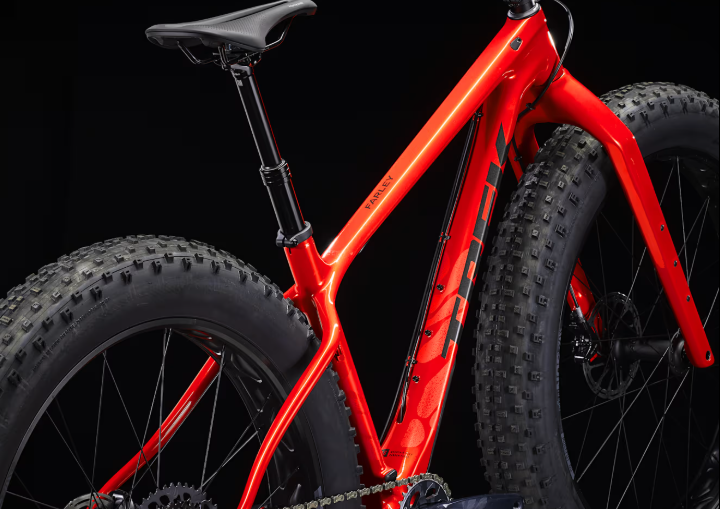

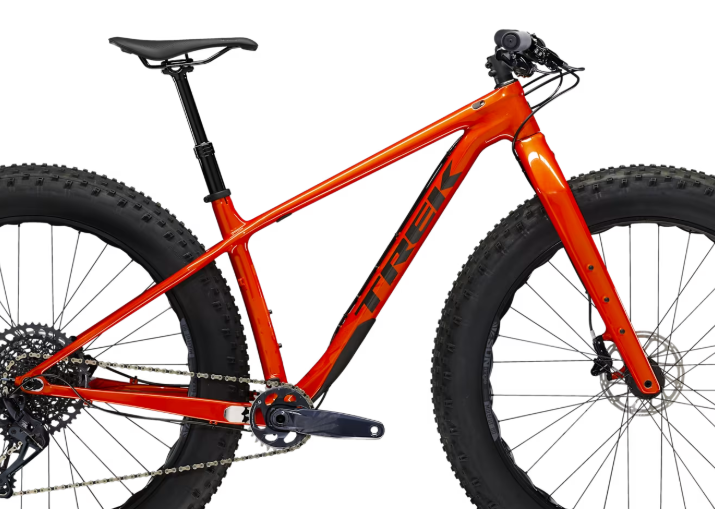

Frame

OCLV Mountain Carbon, internal derailleur and dropper post routing, rack and fender mounts, BSA 100mm, 197x12mm thru axle

Fork

Farley Carbon, tapered steerer, rack mounts, 100x15mm thru axle

Drivetrain Compatibility

SRAM GX Eagle, 12-speed

Dropouts

15x100mm thru axle (F), 197x12mm thru axle (R)

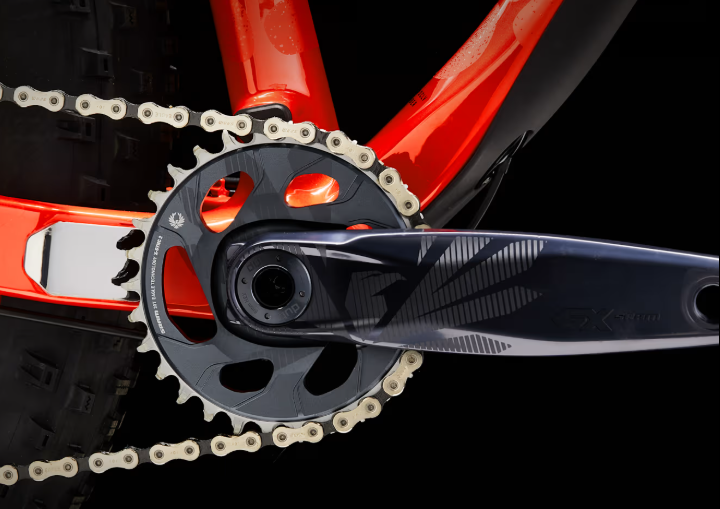

Crank

SRAM GX Eagle, DUB, 30T, 170mm (S, M), 175mm (L, XL)

Chain

SRAM GX Eagle, 12-speed

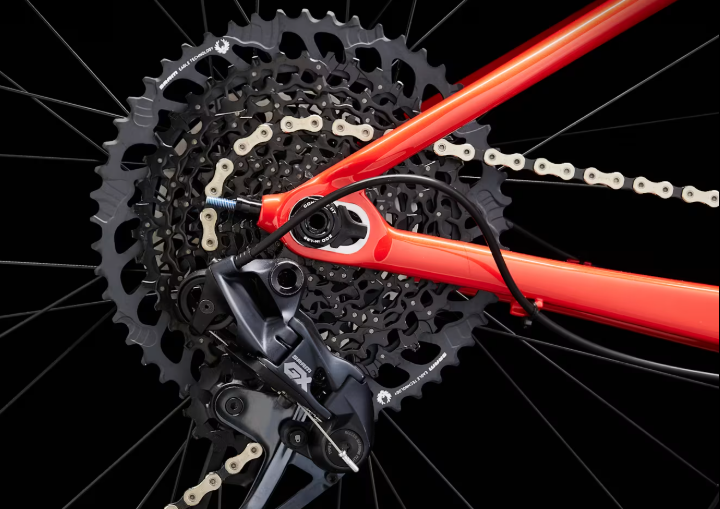

Rear Derailleur

SRAM GX Eagle

Shifters

SRAM GX Eagle, 12-speed

Cassette

SRAM XG-1275, 10-52, 12-speed

Specification

Details

Seating

Bontrager Arvada, hollow chromoly rails, 145mm width

Cargo Capacity

Multiple frame and fork mounts, maximum cargo capacity not specified

Wheels/Tyres

SUNRingle Mulefut 80 SL, alloy, Bontrager Gnarwhal, 27.5x4.5"

Wheel Size

27.5" in

Brakes

SRAM Level Bronze Stealth, 4-piston hydraulic disc, 180mm rotors

Brake Levers

SRAM Level Bronze Stealth

Handlebar

Bontrager Line, alloy, 35mm, 15mm rise, 750mm width

Stem

Bontrager Elite, 35mm, 0 degree, 60mm (S), 70mm (M, L), 80mm (XL)

Headset

FSA IS-2, sealed cartridge bearing

Saddle

Bontrager Arvada, hollow chromoly rails, 145mm width

Seatpost

Bontrager Line Dropper, 100mm (S, M), 150mm (L, XL), internal routing, 31.6mm

Grips

Bontrager XR Trail Elite, nylon lock-on

Front Hub

Bontrager alloy, sealed bearing, 6-bolt, 15x100mm thru axle

Rear Hub

Bontrager alloy, sealed bearing, 6-bolt, SRAM XD freehub, 197x12mm thru axle

Rims

SUNRingle Mulefut 80 SL, alloy, 32-hole

Spokes

14g stainless steel

Exterior Features

Internal derailleur and dropper post routing, rack and fender mounts

Weight

13.6 kg / 29.98 lbs (size M)
