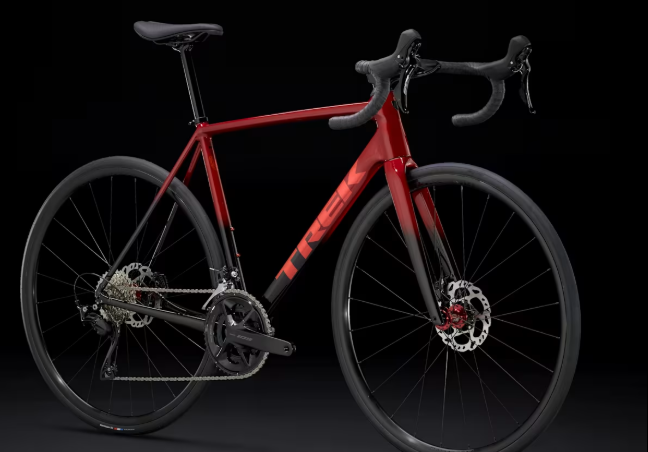

2025 Trek Emonda ALR 5 – Road Bike
Specifications
|
Specification |
Details |
|
Model |
Émonda ALR 5 |
|
Vehicle Category |
Road Bike |
|
Application |
Climbing, racing, club rides |
|
Starting Price (2025) |
$2,499.99 USD |
|
Color Options |
Crimson to Dark Carmine Fade, Quicksilver/Deep Dark Prismatic |
|
Sizes |
47, 50, 52, 54, 56, 58, 60, 62 |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
300 Series Alpha Aluminum, tapered head tube, internal routing, flat mount disc, 142x12mm thru axle, DuoTrap compatible, ride ready |
|
Fork |
Émonda ALR carbon, tapered alloy steerer, internal brake routing, flat mount disc, 12x100mm thru axle |
|
Drivetrain Compatibility |
Shimano 105 R7100, 2x11-speed |
|
Dropouts |
142x12mm thru axle (R), 12x100mm thru axle (F) |
|
Crank |
Shimano 105 R7100, 50/34 (compact), 165mm (47cm, 50cm), 170mm (52cm, 54cm), 172.5mm (56cm, 58cm, 60cm), 175mm (62cm) |
|
Chain |
Shimano 105 CN-M7100, 11-speed |
|
Rear Derailleur |
Shimano 105 R7100, short cage, 11-speed |
|
Front Derailleur |
Shimano 105 R7100, braze-on, 11-speed |
|
Shifters |
Shimano 105 R7100 hydraulic disc, 11-speed |
|
Cassette |
Shimano 105 R7100, 11-34, 11-speed |
Components & Features
|
Specification |
Details |
|
Seating |
Bontrager Montrose Comp, steel rails, 145mm width |
|
Wheels/Tyres |
Bontrager R1 Hard-Case Lite, aramid bead, 60 tpi, 700x25c |
|
Wheel Size |
700c |
|
Brakes |
Shimano 105 hydraulic disc, flat mount, 160mm rotors |
|
Brake Levers |
Integrated with shifters |
|
Handlebar |
Bontrager Comp VR-CF, alloy, 31.8mm, 38cm (47, 50cm), 40cm (52, 54cm), 42cm (56, 58, 60cm), 44cm (62cm) |
|
Stem |
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70-120mm (size-specific) |
|
Headset |
Integrated cartridge bearing, sealed |
|
Saddle |
Bontrager Montrose Comp, steel rails, 145mm width |
|
Seatpost |
Émonda alloy, 27.2mm, 8mm offset, 330mm length |
|
Grips |
Bontrager Supertack tape |
|
Front Hub |
Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle |
|
Rear Hub |
Bontrager alloy, sealed bearing, Shimano 11-speed freehub, centerlock disc, 142x12mm thru axle |
|
Rims |
Bontrager Paradigm 23, double wall, 21mm rim width |
|
Spokes |
14g stainless steel |
|
Exterior Features |
Kammtail aerodynamic tube shaping, internal routing, flat mount disc brakes |
|
Weight |
9.17 kg / 20.22 lbs (size 56, with tubes) |
