Specification

Details

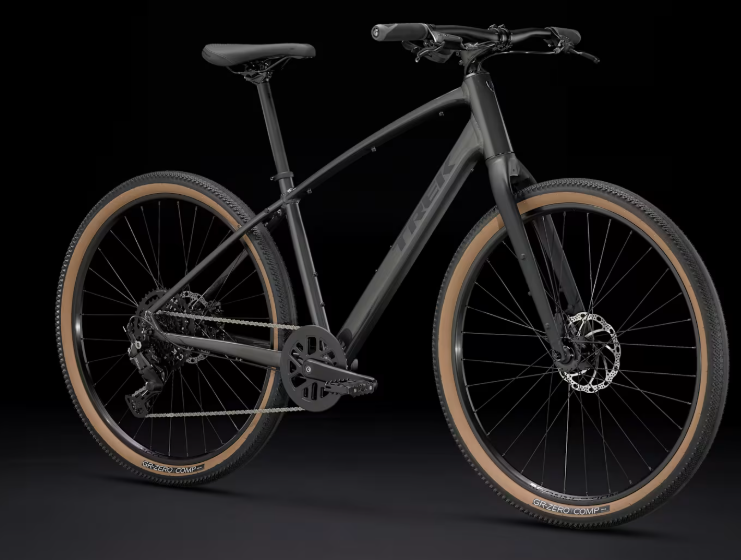

Model

Dual Sport 2 Gen 5

Vehicle Category

Hybrid Bike

Application

Commuting, recreational riding, light gravel trails

Starting Price (2025)

$899.99 USD

Color Options

Lithium Grey, Juniper

Sizes

S, M, L, XL

Specification

Details

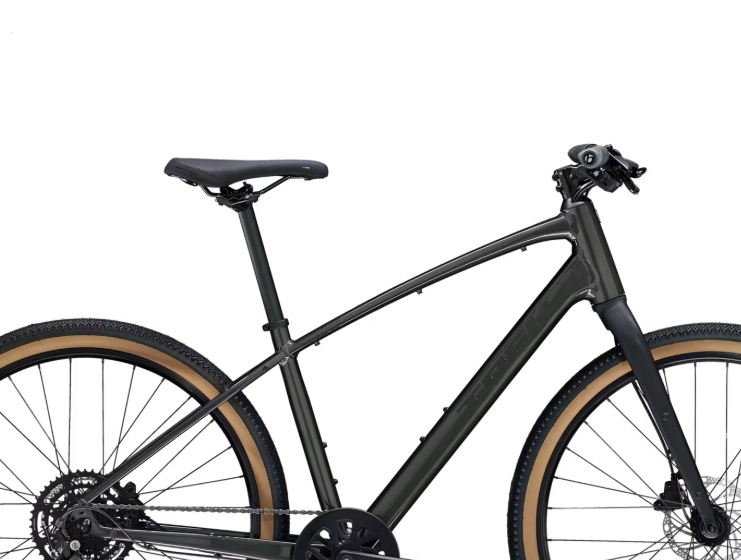

Frame

Alpha Gold Aluminum, DuoTrap S compatible, internal cable routing, rack and fender mounts, flat mount disc, 135x5mm QR

Fork

Dual Sport alloy, flat mount disc, rack and fender mounts, 100x5mm QR

Drivetrain Compatibility

Shimano Altus/Deore, 9-speed

Dropouts

100x5mm QR (F), 135x5mm QR (R)

Crank

Prowheel alloy, 40T, 170mm (S, M), 175mm (L, XL)

Chain

KMC X9, 9-speed

Rear Derailleur

Shimano Deore M4120, long cage

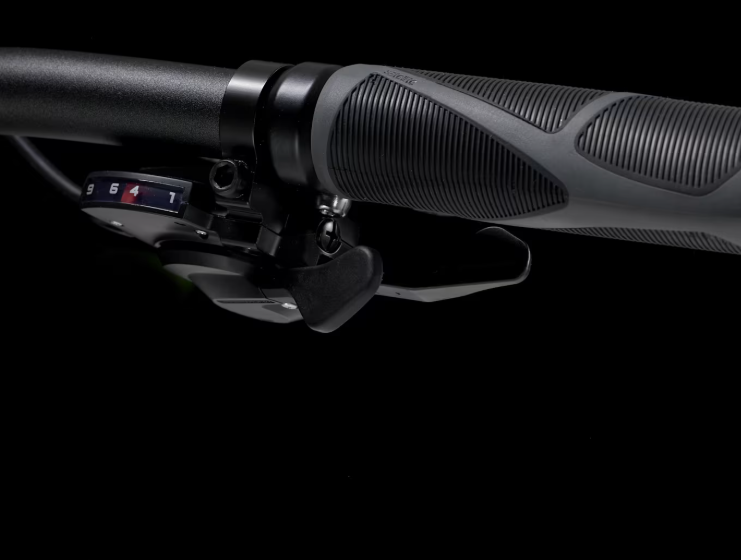

Shifters

Shimano Altus M2010, 9-speed

Cassette

Shimano HG200, 11-36, 9-speed

Specification

Details

Seating

Bontrager Arvada, steel rails, 138mm width

Cargo Capacity

Rack and fender mounts, maximum cargo capacity 25kg / 55 lbs

Wheels/Tyres

Bontrager GR1 Comp, wire bead, 60 tpi, 27.5x2.0"

Wheel Size

27.5" in

Brakes

Shimano MT200 hydraulic disc, 160mm rotors

Brake Levers

Shimano MT200

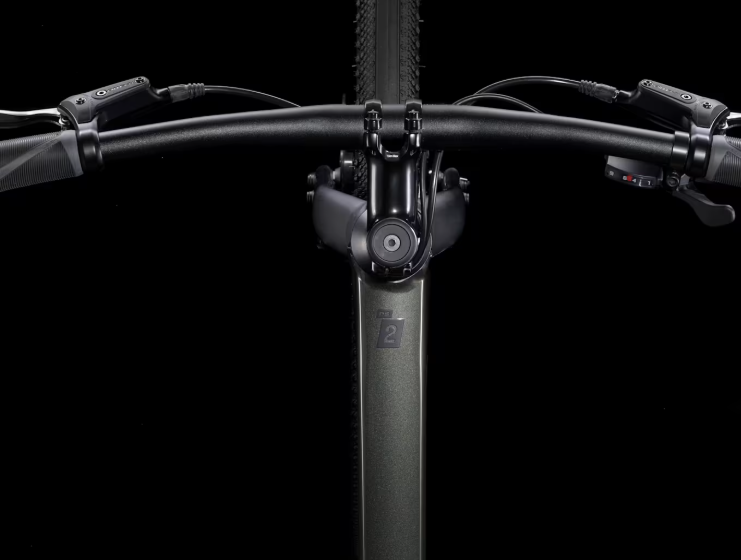

Handlebar

Bontrager alloy, 31.8mm, 15mm rise, 660mm (S, M), 690mm (L, XL)

Stem

Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm (S), 80mm (M), 90mm (L), 100mm (XL)

Headset

1-1/8in threadless, sealed cartridge bearings

Saddle

Bontrager Arvada, steel rails, 138mm width

Seatpost

Bontrager alloy, 31.6mm, 12mm offset, 330mm length

Grips

Bontrager Satellite

Front Hub

Formula DC-20, alloy, 6-bolt, 100x5mm QR

Rear Hub

Formula DC-22, alloy, 6-bolt, 135x5mm QR

Rims

Bontrager Connection, alloy, double-wall, 32-hole, Schrader valve

Spokes

14g stainless steel

Pedals

Wellgo nylon platform

Exterior Features

DuoTrap S compatible, internal cable routing, rack and fender mounts

Weight

13.22 kg / 29.14 lbs (size M)
