Specification

Details

Model

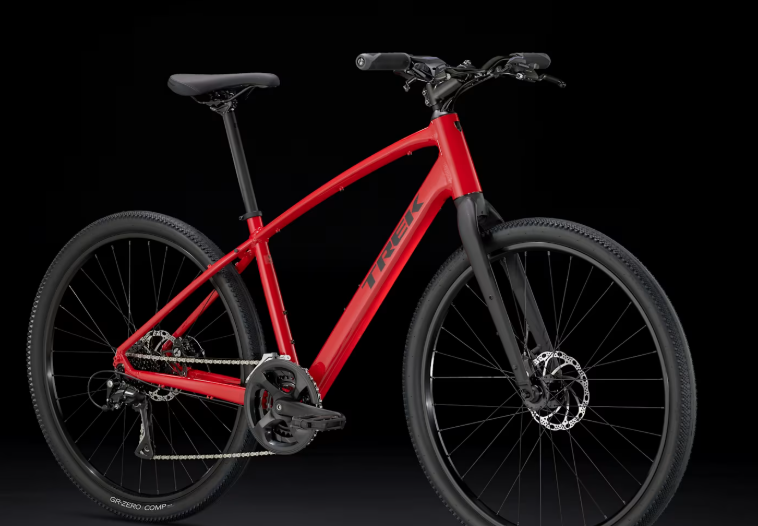

Dual Sport 1 Gen 5

Vehicle Category

Hybrid Bike

Application

Commuting, recreational riding, light gravel trails

Starting Price (2025)

$749.99 USD

Color Options

Viper Red, Mercury

Sizes

S, M, L, XL

Specification

Details

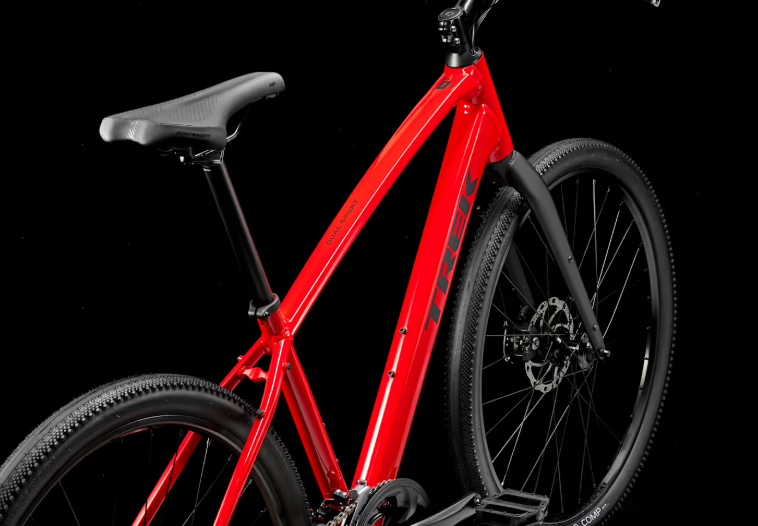

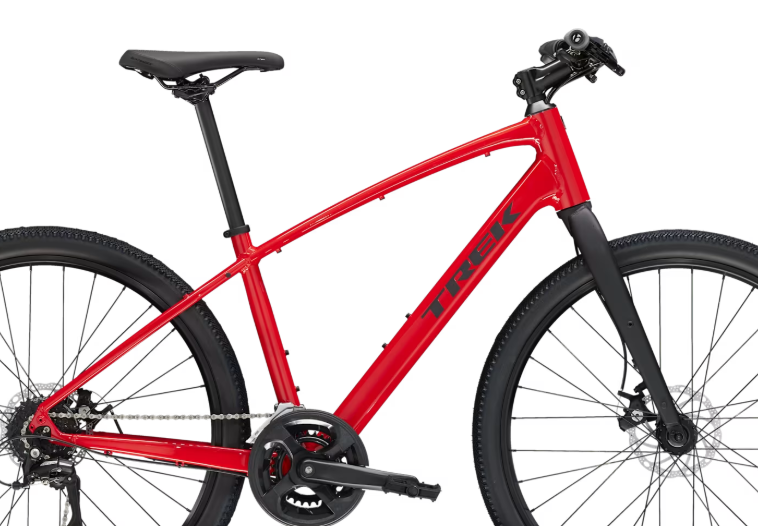

Frame

Alpha Gold Aluminum, internal cable routing, rack and mudguard mounts, flat mount disc, 135x5mm QR

Fork

Dual Sport alloy, flat mount disc, rack mounts, 100x5mm QR

Drivetrain Compatibility

Shimano Altus M2000, 9-speed

Dropouts

135x5mm QR (R), 100x5mm QR (F)

Crank

Prowheel alloy, 36/22, 170mm (S, M), 175mm (L, XL)

Chain

KMC X9, 9-speed

Rear Derailleur

Shimano Altus M2000, long cage

Front Derailleur

Shimano Altus M315, 34.9mm clamp

Shifters

Shimano Altus M2010, 9-speed

Cassette

Shimano HG200, 11-36, 9-speed

Specification

Details

Seating

Bontrager Arvada, 138mm width

Cargo Capacity

Rack and mudguard mounts, maximum cargo capacity 25kg / 55 lbs

Wheels/Tyres

Bontrager Kovee, double-wall, tubeless ready, 32-hole, 27.5x2.35in

Wheel Size

27.5in

Brakes

Tektro M275 hydraulic disc, 180mm front rotor, 160mm rear rotor

Brake Levers

Tektro M275

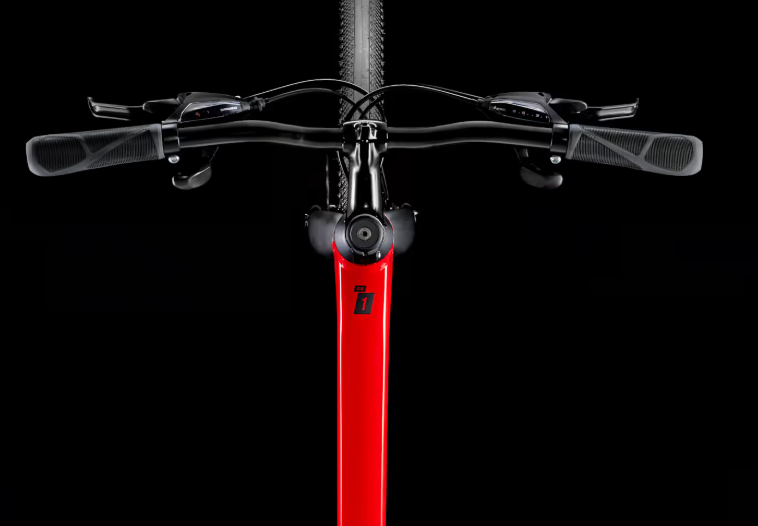

Handlebar

Bontrager alloy, 31.8mm, 15mm rise, 720mm width (S, M), 750mm width (L, XL)

Stem

Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm (S), 70mm (M), 80mm (L, XL)

Headset

1-1/8in threadless, sealed cartridge bearings

Saddle

Bontrager Arvada, 138mm width

Seatpost

Bontrager alloy, 27.2mm, 12mm offset, 330mm length

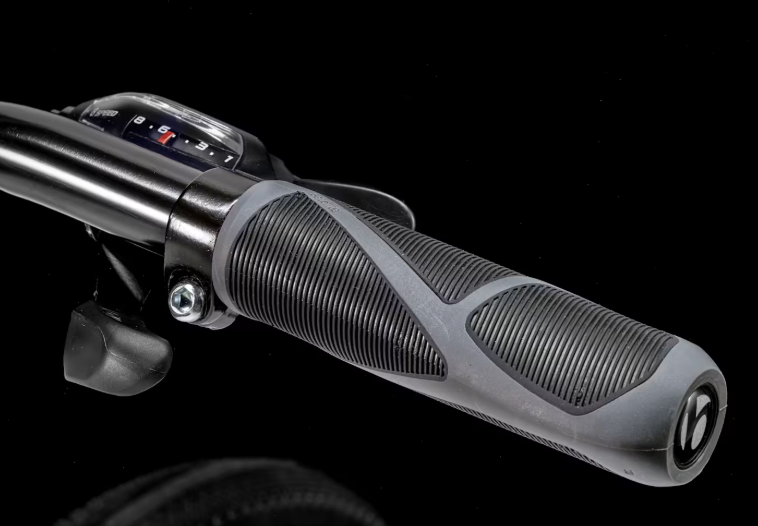

Grips

Bontrager XR Endurance Comp, lock-on

Front Hub

Formula DC-20, alloy, 6-bolt, 100x5mm QR

Rear Hub

Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR

Rims

Bontrager Kovee, double-wall, tubeless ready, 32-hole, 23mm width, Presta valve

Spokes

14g stainless steel, black

Pedals

Wellgo nylon platform

Exterior Features

Rack and mudguard mounts, DuoTrap S-compatible, internal cable routing

Weight

13.05 kg / 28.77 lbs (size M)
