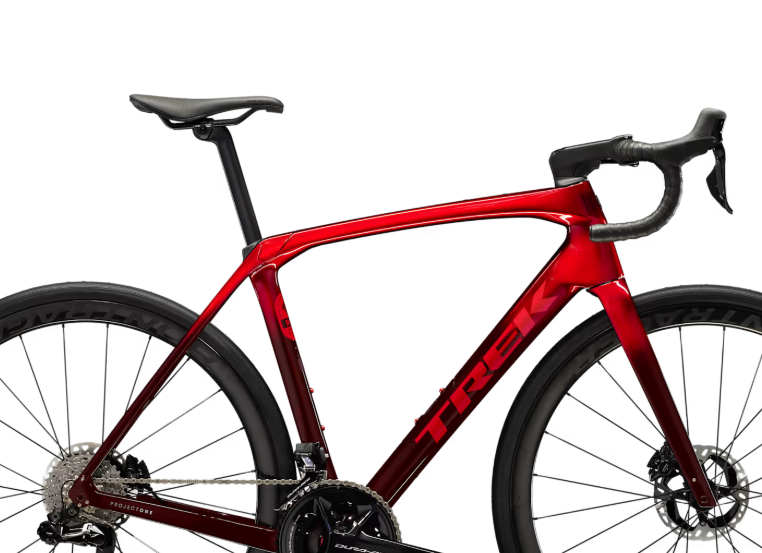

2025 Trek Domane SLR 9 Gen 4 – Endurance Road Bike
Specifications
|
Specification |
Details |
|
Model |
Domane SLR 9 Gen 4 |
|
Vehicle Category |
Endurance Road Bike |
|
Application |
Long-distance road riding, light gravel, endurance racing |
|
Starting Price (2025) |
$11,899.97 USD (Sale), $13,399.99 USD (Original) |
|
Color Options |
Metallic Red Smoke to Red Carbon Smoke |
|
Sizes |
47, 50, 52, 54, 56, 58, 60, 62 |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
800 Series OCLV Carbon, rear IsoSpeed, internal storage, tapered head tube, internal cable routing, flat mount disc, fender mounts, 142x12mm thru axle |
|
Fork |
Domane SLR carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm thru axle |
|
Drivetrain Compatibility |
Shimano Dura-Ace Di2, 2x12-speed |
|
Dropouts |
142x12mm thru axle (R), 12x100mm thru axle (F) |
|
Crank |
Shimano Dura-Ace R9200, 50/34T, 170mm (47-52), 172.5mm (54-56), 175mm (58-62) |
|
Chain |
Shimano Dura-Ace/XT M9100, 12-speed |
|
Rear Derailleur |
Shimano Dura-Ace R9250 Di2, 34T max |
|
Front Derailleur |
Shimano Dura-Ace R9250 Di2, braze-on |
|
Shifters |
Shimano Dura-Ace R9270 Di2, hydraulic disc |
|
Cassette |
Shimano Dura-Ace R9200, 11-34T, 12-speed |
Components & Features
|
Specification |
Details |
|
Seating |
Bontrager Verse Short Elite, 145mm width |
|
Cargo Capacity |
Internal storage (Bontrager BITS bag included), fender mounts |
|
Wheels/Tyres |
Bontrager Aeolus RSL 37, OCLV Carbon, tubeless ready, 37mm rim depth, 32mm width |
|
Wheel Size |
700c |
|
Brakes |
Shimano Dura-Ace R9270, hydraulic disc, flat mount, 160mm rotor |
|
Brake Levers |
Shimano Dura-Ace R9270, hydraulic disc |
|
Handlebar |
Bontrager Pro IsoCore VR-CF, OCLV Carbon, 38cm (47), 40cm (50-52), 42cm (54-56), 44cm (58-62) |
|
Stem |
Bontrager RSL, Blendr compatible, 80mm (47-50), 90mm (52-54), 100mm (56-58), 110mm (60-62) |
|
Headset |
FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom |
|
Saddle |
Bontrager Verse Short Elite, 145mm width |
|
Seatpost |
Bontrager carbon internal seatmast cap, 20mm offset, 280mm (47-52), 320mm (54-62) |
|
Seatpost Clamp |
Integrated, internal |
|
Grips |
Bontrager Supertack Perf tape |
|
Front Hub |
Bontrager Aeolus RSL 37, 12x100mm thru axle |
|
Rear Hub |
Bontrager Aeolus RSL 37, Shimano 11/12-speed freehub, 142x12mm thru axle |
|
Rims |
Bontrager Aeolus RSL 37, OCLV Carbon, tubeless ready, 37mm rim depth |
|
Spokes |
Stainless steel, 14g |
|
Exterior Features |
Rear IsoSpeed, internal storage (Bontrager BITS bag included), fender mounts, 38mm tire clearance, Blendr stem compatibility |
|
Weight |
7.65 kg (56cm, estimated) |
