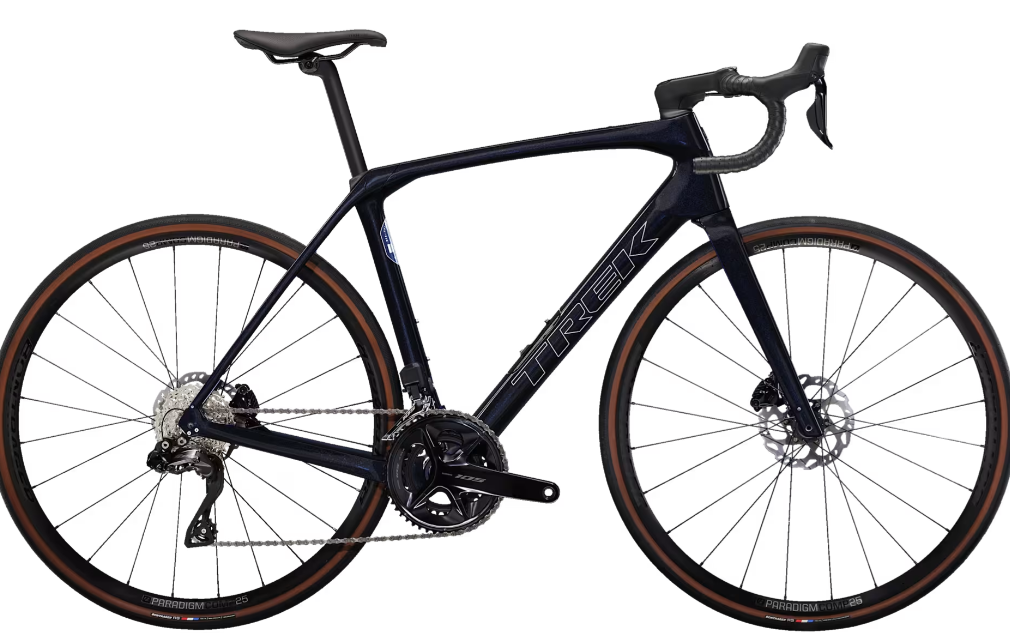

2025 Trek Domane SL 6 Gen 4 – Road Bike
Specifications
|
Specification |
Details |
|
Model |
Domane SL 6 Gen 4 |
|
Vehicle Category |
Road Bike |
|
Application |
Endurance road cycling, light gravel, racing |
|
Starting Price (2025) |
$4,799.97 USD (sale), $5,149.99 USD (original) |
|
Color Options |
Marianas Blue, Gravel Grey, Dark Star to Bronze Age Fade, White to Miami Green Fade |
|
Sizes |
47, 50, 52, 54, 56, 58, 60, 62 |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
500 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, fender mounts, flat mount disc, 142x12mm thru axle |
|
Fork |
Domane SL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle |
|
Drivetrain Compatibility |
Shimano 105 Di2 R7170, 2x12-speed |
|
Dropouts |
142x12mm thru axle (R), 12x100mm thru axle (F) |
|
Crank |
Shimano 105 R7100, 50/34T, 165mm (47), 170mm (50, 52), 172.5mm (54, 56), 175mm (58, 60, 62) |
|
Chain |
Shimano SLX M7100, 12-speed |
|
Rear Derailleur |
Shimano 105 Di2 R7150, 12-speed |
|
Front Derailleur |
Shimano 105 Di2 R7150, braze-on |
|
Shifters |
Shimano 105 Di2 R7170, 12-speed |
|
Cassette |
Shimano 105 R7100, 11-34T, 12-speed |
Components & Features
Rear Hub
|
Specification |
Details |
|
Seating |
Bontrager Verse Short Comp, steel rails, 155mm width (47, 50, 52), 145mm width (54, 56, 58, 60, 62) |
|
Cargo Capacity |
Internal storage, fender mounts |
|
Wheels/Tyres |
Bontrager R2 Hard-Case Lite, tubeless ready, 700x32mm |
|
Wheel Size |
700c |
|
Brakes |
Shimano 105 hydraulic disc, BR-R7170 flat-mount caliper, 160mm rotor |
|
Brake Levers |
Shimano 105 Di2 R7170 hydraulic |
|
Handlebar |
Bontrager Elite IsoZone VR-CF, alloy, 31.8mm, internal Di2 routing, 93mm reach, 123mm drop, width: 38cm (47), 40cm (50, 52), 42cm (54, 56), 44cm (58, 60, 62) |
|
Stem |
Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, length: 70mm (47), 80mm (50), 90mm (52, 54), 100mm (56, 58), 110mm (60, 62) |
|
Headset |
FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom |
|
Saddle |
Bontrager Verse Short Comp, steel rails, 155mm width (47, 50, 52), 145mm width (54, 56, 58, 60, 62) |
|
Seatpost |
Bontrager carbon, 27.2mm, 20mm offset, length: 280mm (47, 50, 52), 320mm (54, 56, 58, 60, 62) |
|
Seatpost Clamp |
Integrated, internal |
|
Grips |
Bontrager Supertack Perf tape |
|
Front Hub |
Bontrager alloy, sealed bearing, 12x100mm thru axle |
|
Rims |
Bontrager Aeolus Elite 35, OCLV Carbon, tubeless ready, 35mm depth, 21mm inner width |
|
Spokes |
Stainless steel, 14g |
|
Exterior Features |
IsoSpeed, internal storage, fender mounts, tubeless ready wheels |
|
Weight |
8.90 kg (56cm, with TLR sealant, no tubes) |
