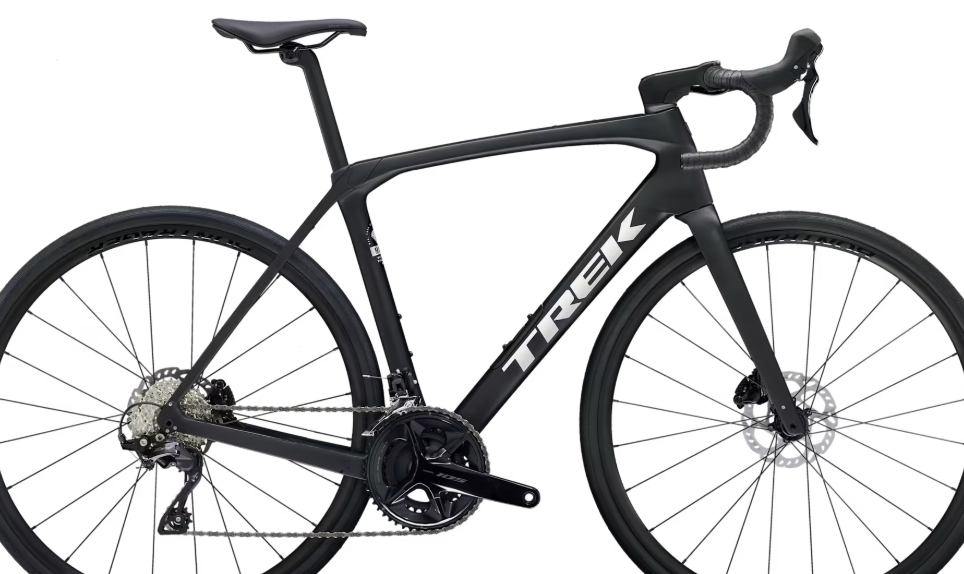

2025 Trek Domane SL 5 Gen 4 – Performance Road Bike
Specifications
|
Specification |
Details |
|
Model |
Domane SL 5 Gen 4 |
|
Vehicle Category |
Performance Road Bike |
|
Application |
Endurance road cycling, light gravel, long-distance riding |
|
Starting Price (2025) |
$3,499.97 USD (sale), $3,699.99 USD (original) |
|
Color Options |
Matte Deep Smoke, Hex Blue |
|
Sizes |
44, 47, 50, 52, 54, 56, 58, 60, 62 |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
500 Series OCLV Carbon, rear IsoSpeed, internal storage, Kammtail Virtual Foil tube shape, internal cable routing, 3S chain keeper, T47 BB, 12x142mm thru axle |
|
Fork |
Domane SL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle |
|
Drivetrain Compatibility |
Shimano 105, 2x11-speed |
|
Dropouts |
12x142mm thru axle (R), 12x100mm thru axle (F) |
|
Crank |
Shimano 105 R7000, 50/34T, 165mm (44, 47), 170mm (50, 52), 172.5mm (54, 56), 175mm (58, 60, 62) |
|
Chain |
Shimano 105 HG601, 11-speed |
|
Rear Derailleur |
Shimano 105 R7000, medium cage |
|
Front Derailleur |
Shimano 105 R7000, braze-on |
|
Shifters |
Shimano 105 R7020, 11-speed |
|
Cassette |
Shimano 105 R7000, 11-34T, 11-speed |
Components & Features
|
Specification |
Details |
|
Seating |
Bontrager Verse Short, 145mm width |
|
Cargo Capacity |

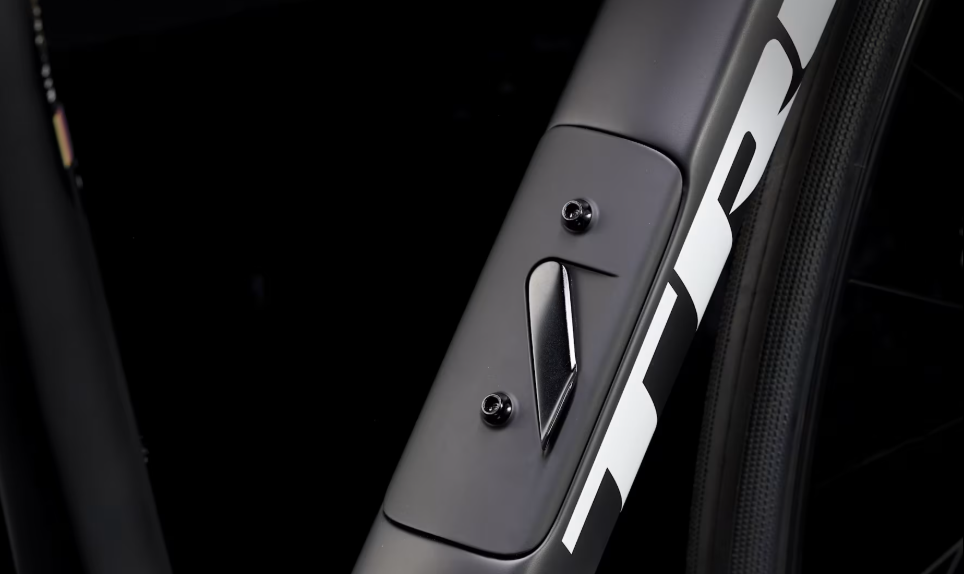

Internal storage (Bontrager BITS bag included), fender mounts, rack mounts, multiple bottle cage mounts |
|
Wheels/Tyres |
Bontrager Paradigm SL, tubeless ready, 21mm width, Bontrager R3 Hard-Case Lite, 700x32c (38mm max clearance) |
|
Wheel Size |
700c |
|
Brakes |
Shimano 105 R7070, hydraulic disc, flat mount, 160mm rotor (F, R) |
|
Brake Levers |
Shimano 105 R7020, hydraulic |
|
Handlebar |
Bontrager Elite IsoZone VR-CF, alloy, 31.8mm, 93mm reach, 123mm drop, 38cm (44, 47), 40cm (50, 52), 42cm (54, 56), 44cm (58, 60, 62) |
|
Stem |
Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 70mm (44, 47), 80mm (50), 90mm (52, 54), 100mm (56, 58), 110mm (60, 62) |
|
Headset |
FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom |
|
Saddle |
Bontrager Verse Short, 145mm width |
|
Seatpost |
Bontrager carbon, 27.2mm, 20mm offset, 330mm length (44, 47, 50, 52), 400mm length (54, 56, 58, 60, 62) |
|
Seatpost Clamp |
Integrated, internal |
|
Grips |
Bontrager Supertack Perf tape |
|
Front Hub |
Bontrager alloy, sealed bearing, 6-bolt, 12x100mm thru axle |
|
Rear Hub |
Bontrager alloy, sealed bearing, 6-bolt, Shimano 11-speed freehub, 12x142mm thru axle |
|
Rims |
Bontrager Paradigm SL, tubeless ready, 21mm width, Presta valve |
|
Spokes |
14g stainless steel |
|
Exterior Features |
Rear IsoSpeed, internal storage (Bontrager BITS bag included), Kammtail Virtual Foil tube shape, fender mounts, rack mounts, multiple bottle cage mounts, 38mm tire clearance |
|
Weight |
9.02 kg (56cm, with TLR sealant, no tubes) |
