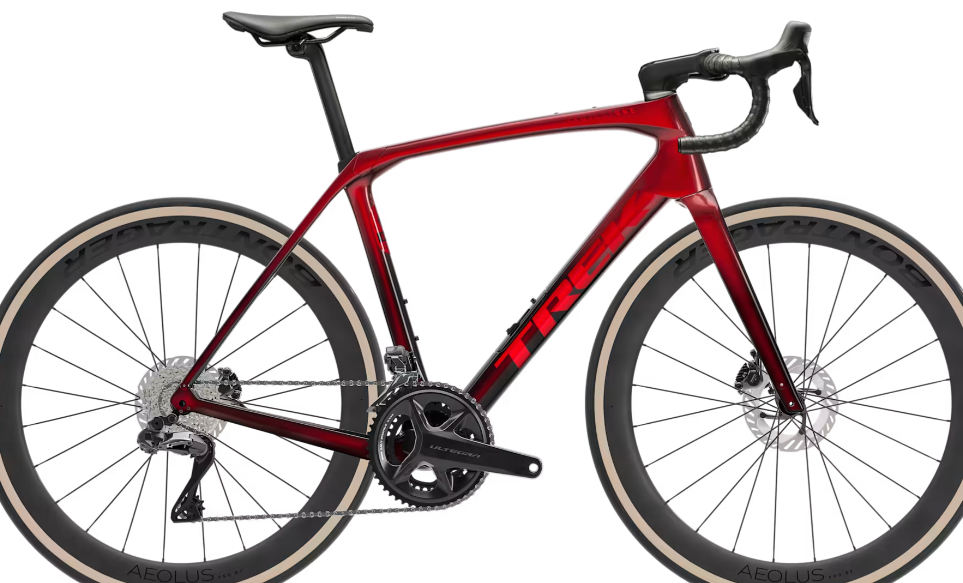

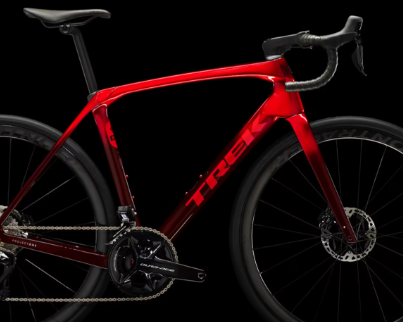

2025 Trek Domane R 7 Gen 4 – Road Bike
Specifications
|
Specification |
Details |
|
Model |
Domane R 7 Gen 4 |
|
Vehicle Category |
Road Bike |
|
Application |
Endurance road cycling, gravel riding, road racing |
|
Starting Price (2025) |
$8,499.99 USD |
|
Color Options |
Metallic Red Smoke to Red Carbon Smoke, Matte Deep Smoke |
|
Sizes |
47, 50, 52, 54, 56, 58, 60, 62 |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
800 Series OCLV Carbon, rear IsoSpeed, internal routing, internal storage, Kammtail shaping, BSA 68, 38mm max tire size |
|
Fork |
Domane R carbon, tapered steerer, internal brake routing, 12x100mm thru axle |
|
Drivetrain Compatibility |
Shimano Ultegra Di2, 2x12 |
|
Dropouts |
12x100mm thru axle (F), 12x142mm thru axle (R) |
|
Crank |
Shimano Ultegra R8100, 50/34T, 165mm (47), 170mm (50, 52), 172.5mm (54, 56), 175mm (58, 60, 62) |
|
Chain |
Shimano Ultegra/XT M8100, 12-speed |
|
Rear Derailleur |
Shimano Ultegra Di2 R8150 |
|
Front Derailleur |
Shimano Ultegra Di2 R8150 |
|
Shifters |
Shimano Ultegra Di2 R8170, 12-speed |
|
Cassette |
Shimano Ultegra R8100, 11-34, 12-speed |
Components & Features
|
Specification |
Details |
|
Seating |
Bontrager Arvada, carbon rails, 138mm width |
|
Cargo Capacity |
Internal storage compartment; external rack mounts |
|
Wheels/Tyres |
Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 51mm rim depth, 38mm max tire size |
|
Wheel Size |
700c |
|
Brakes |
Shimano Ultegra R8170, hydraulic disc, 160mm rotors |
|
Brake Levers |
Shimano Ultegra R8170 |
|
Handlebar |
Bontrager Aeolus RSL Integrated, OCLV Carbon, 380mm (47), 400mm (50, 52), 420mm (54, 56), 440mm (58, 60, 62) |
|
Stem |
Bontrager Aeolus RSL Integrated, 80mm (47, 50), 90mm (52, 54), 100mm (56, 58), 110mm (60, 62) |
|
Headset |
Integrated, sealed cartridge bearing |
|
Saddle |
Bontrager Arvada, carbon rails, 138mm width |
|
Seatpost |
Domane carbon seatmast cap, 20mm offset, 175mm (47, 50, 52), 200mm (54, 56, 58, 60, 62) |
|
Seatpost Clamp |
Integrated with seatmast |
|
Grips |
Bontrager Supertack Perf tape |
|
Front Hub |
Bontrager alloy, sealed bearing, 12x100mm thru axle |
|
Rear Hub |
Bontrager alloy, sealed bearing, Shimano 11/12-speed freehub, 12x142mm thru axle |
|
Rims |
Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 51mm rim depth |
|
Spokes |
14g stainless steel, black |
|
Exterior Features |
Rear IsoSpeed, internal routing, internal storage, Kammtail shaping, rack and fender mounts |
|
Weight |
7.99 kg / 17.62 lbs (size 56, with TLR sealant, no tubes) |
