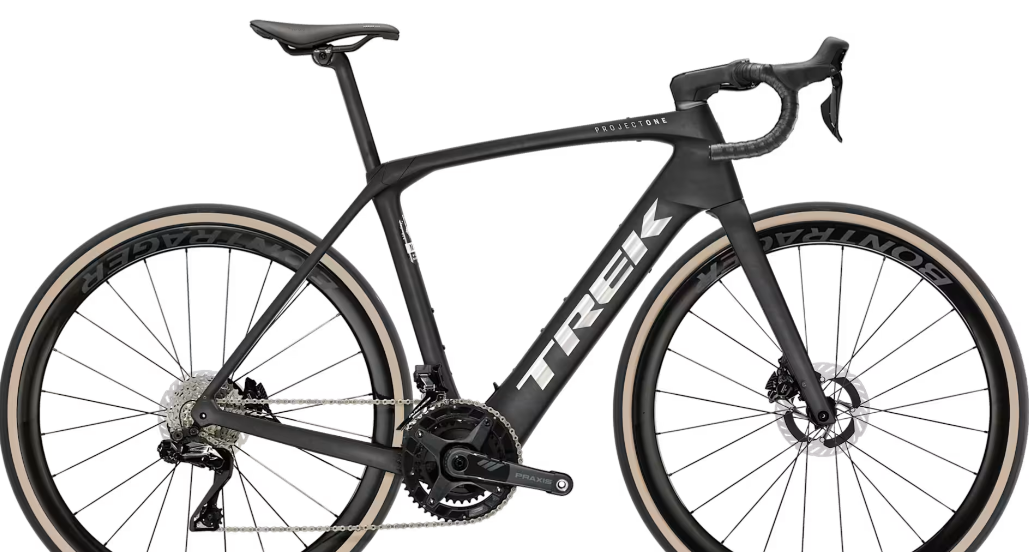

2025 Trek Domane+ SLR 9 – Electric Road Bike
Specifications
|
Specification |
Details |
|
Model |
Domane+ SLR 9 |
|
Vehicle Category |
Electric Road Bike |
|
Application |
Endurance road cycling, gravel riding, long-distance rides |
|
Starting Price (2025) |
$14,299.99 USD |
|
Color Options |
Gecko Phaze, Black-Grey, Green, Red-Reddark, White-Tan |
|
Sizes |
50, 52, 54, 56, 58, 60, 62 |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
800 Series OCLV Carbon, rear IsoSpeed, internal storage, internal cable routing, 142x12mm thru axle |
|
Fork |
Domane+ carbon, tapered carbon steerer, 12x100mm thru axle |
|
Drivetrain Compatibility |
Shimano Dura-Ace Di2, 2x12-speed, wireless |
|
Dropouts |
12x100mm thru axle (F), 142x12mm thru axle (R) |
|
Crank |
Shimano Dura-Ace R9200, 50/34T, 170mm (50, 52), 172.5mm (54, 56), 175mm (58, 60, 62) |
|
Chain |
Shimano Dura-Ace/XTR M9100, 12-speed |
|
Rear Derailleur |
Shimano Dura-Ace Di2 R9250, 12-speed, wireless |
|
Front Derailleur |
Shimano Dura-Ace Di2 R9250, braze-on |
|
Shifters |
Shimano Dura-Ace Di2 R9270, 12-speed, wireless |
|
Cassette |
Shimano Dura-Ace R9200, 11-34T, 12-speed |
Components & Features
|
Specification |
Details |
|
Seating |
Bontrager Arvada Pro, 138mm width |
|
Fuel Type |
Electric (TQ HPR60 motor) |
|
Cargo Capacity |
Internal storage (Bontrager BITS bag included), fender and rack mounts |
|
Wheels/Tyres |
Bontrager Aeolus RSL 37, OCLV Carbon, tubeless ready, 700x40mm |
|
Wheel Size |
700c |
|
Brakes |
Shimano Dura-Ace R9270, hydraulic disc, 160mm rotor (F, R) |
|
Brake Levers |
Shimano Dura-Ace R9270, hydraulic |
|
Handlebar |
Bontrager Aero Pro, OCLV Carbon, 40cm (50, 52), 42cm (54, 56), 44cm (58, 60, 62) |
|
Stem |
Bontrager RSL, OCLV Carbon, 90mm (50, 52), 100mm (54, 56), 110mm (58, 60), 120mm (62) |
|
Headset |
FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom |
|
Saddle |
Bontrager Arvada Pro, 138mm width |
|
Seatpost |
Bontrager carbon, 27.2mm, 20mm offset, 280mm (50, 52, 54), 320mm (56, 58, 60, 62) |
|
Seatpost Clamp |
Integrated, internal |
|
Grips |
Bontrager Supertack Perf tape |
|
Front Hub |
Bontrager alloy, sealed bearing, 12x100mm thru axle |
|
Rear Hub |
Bontrager alloy, sealed bearing, 142x12mm thru axle |
|
Rims |
Bontrager Aeolus RSL 37, OCLV Carbon, tubeless ready, 37mm depth |
|
Spokes |
14g stainless steel |
|
Exterior Features |
Rear IsoSpeed, internal storage (Bontrager BITS bag included), fender and rack mounts, endurance geometry |
|
Weight |
11.84 kg (56cm, with TLR sealant, no tubes) |
|
Motor |

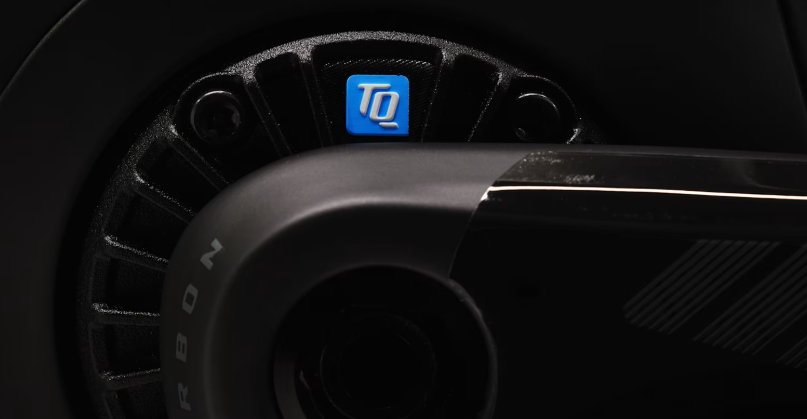

TQ HPR60, 50Nm, 300W peak power, 28mph/45kph max assist (Class 3) |
|
Battery |
TQ 360Wh, fully integrated |
|
Controller |
TQ LED display, 3 assist modes (Eco, Mid, High), walk assist |
|
Charger |
TQ 4A charger |
