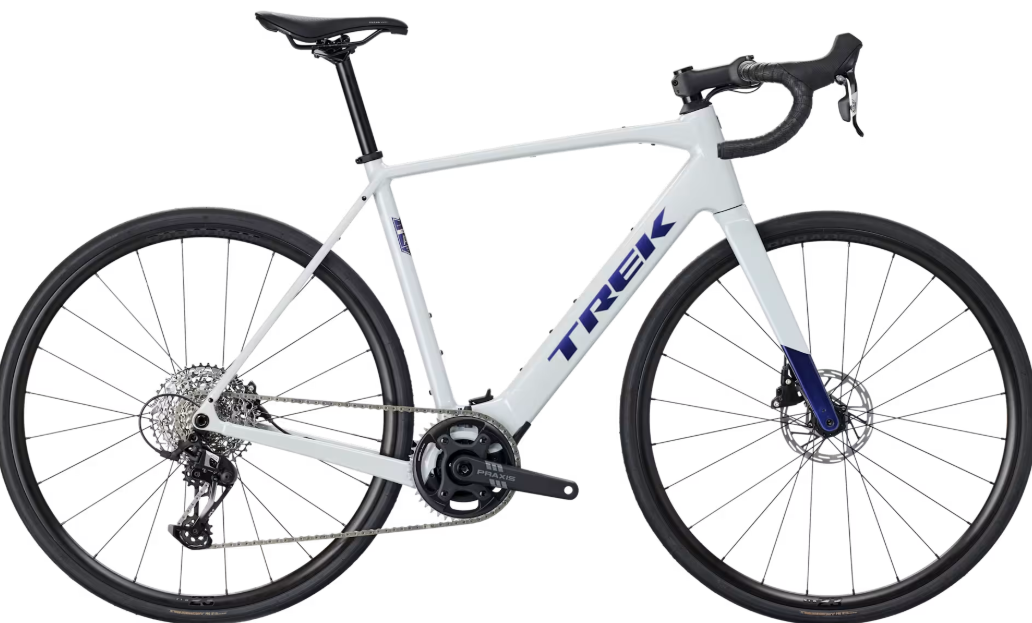

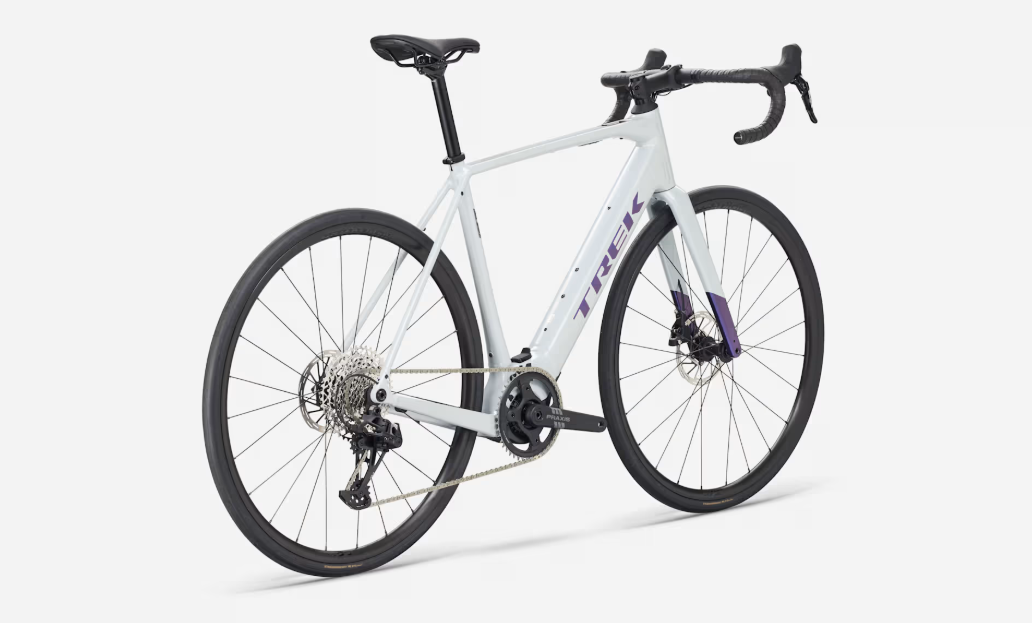

2025 Trek Domane+ ALR 5 – Electric Road Bike
Specifications
|
Specification |
Details |
|
Model |
Domane+ ALR 5 |
|
Vehicle Category |
Electric Road Bike |
|
Application |
Endurance road riding, long rides, big climbs, light gravel |
|
Starting Price (2025) |
$4,999.99 USD |
|
Color Options |
Plasma Grey Pearl, Viper Red |
|
Sizes |
XS, S, M, ML, L, XL |

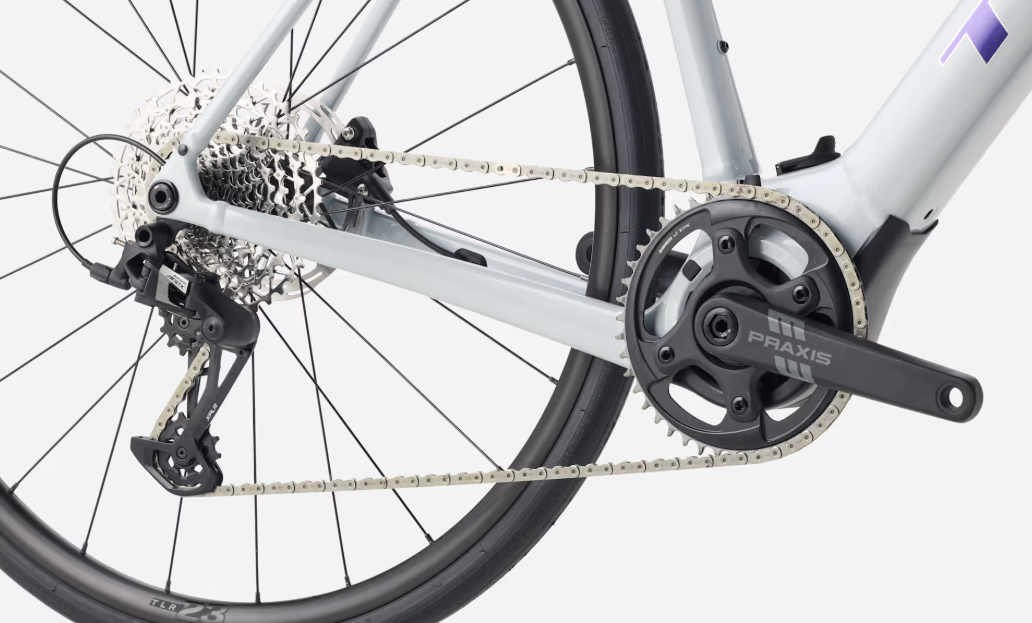

Frame & Drivetrain
|
Specification |
Details |
|
Frame |
300 Series Alpha Aluminum, internal storage, tapered head tube, internal routing, 3S chain keeper, T47, rack and mudguard mounts, flat mount disc, 142x12mm thru axle |
|
Fork |
Domane+ carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat mount disc, 12x100mm thru axle |
|
Drivetrain Compatibility |
SRAM Apex XPLR, 1x12-speed |
|
Dropouts |
142x12mm thru axle (R), 12x100mm thru axle (F) |
|
Crank |
SRAM Apex 1, 40T, DUB Wide, 165mm (XS), 170mm (S, M), 172.5mm (ML, L), 175mm (XL) |
|
Chain |
SRAM Apex, 12-speed |
|
Rear Derailleur |
SRAM Apex XPLR, 44T max cog |
|
Shifters |
SRAM Apex, hydraulic disc, 12-speed |
|
Cassette |
SRAM XG-1230, 11-44, 12-speed |
Components & Features
|
Specification |
Details |
|
Seating |
Bontrager Verse Short Comp, steel rails, 145mm width |
|
Fuel Type |
Electric (360Wh battery) |
|
Cargo Capacity |
Rack and mudguard mounts, internal storage |
|
Wheels/Tyres |
Bontrager GR1 Team Issue, tubeless ready, aramid bead, 60 tpi, 700x40mm |
|
Wheel Size |
700c |
|
Brakes |
SRAM Apex hydraulic disc, flat mount, 160mm rotors |
|
Brake Levers |
Integrated with shifters |
|

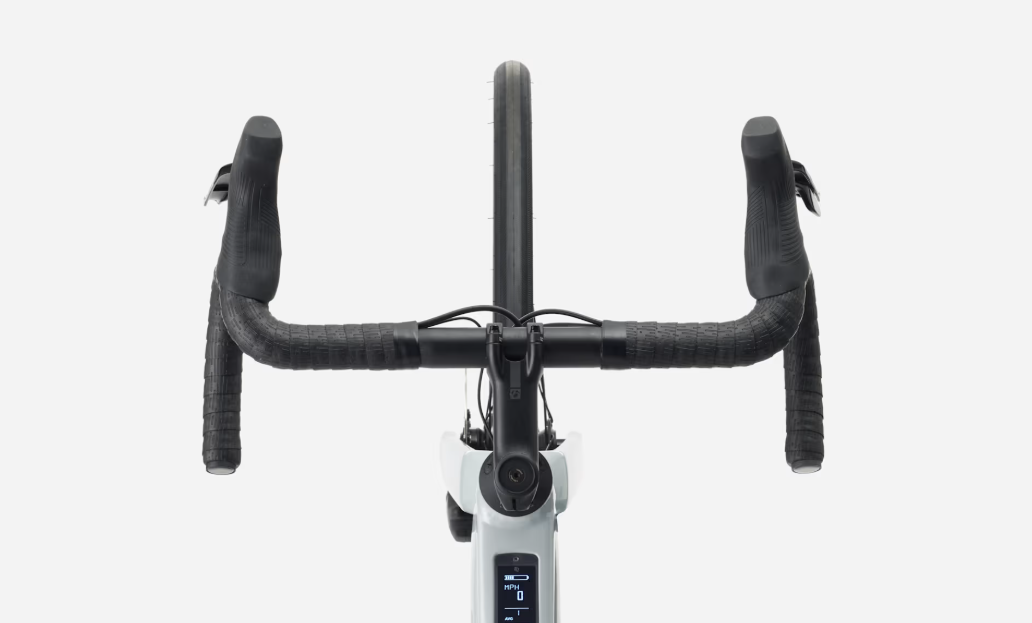

Handlebar |
Bontrager GR Elite IsoZone Gravel, alloy, 31.8mm, 40cm (XS, S), 42cm (M, ML), 44cm (L), 46cm (XL) |
|
Stem |
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm (XS), 80mm (S, M), 90mm (ML, L), 100mm (XL) |
|
Headset |
Integrated, cartridge bearing, sealed |
|
Saddle |
Bontrager Verse Short Comp, steel rails, 145mm width |
|
Seatpost |
Bontrager alloy, 27.2mm, 12mm offset, 330mm length |
|
Grips |
Bontrager Supertack Perf tape |
|
Front Hub |
Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle |
|
Rear Hub |
Bontrager alloy, sealed bearing, centerlock disc, SRAM XD-R freehub, 142x12mm thru axle |
|
Rims |
Bontrager Paradigm 23, tubeless ready, 24-hole, 23mm width, Presta valve |
|
Spokes |
14g stainless steel, black |
|
Exterior Features |
Internal storage, rack and mudguard mounts, IsoSpeed decoupler, tubeless ready wheels |
|
Weight |
14.39 kg / 31.73 lbs (size ML, with TLR sealant, no tubes) |
|

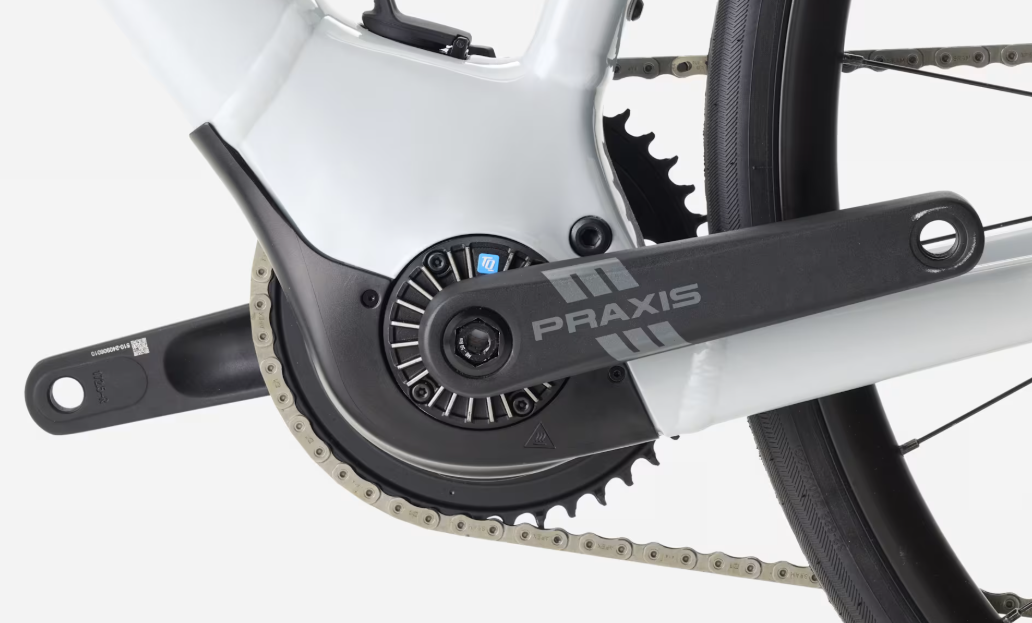

Drive Unit |
TQ HPR60 mid-drive motor, 60 Nm, 300W nominal, 28mph max assist |
|
Battery |
360Wh, integrated in down tube |
|
Charger |
2A, 100-240V, 48V output |
|
Display |
TQ integrated display |
|
Certifications |
UL 2849 compliant |
