Specification

Details

Model

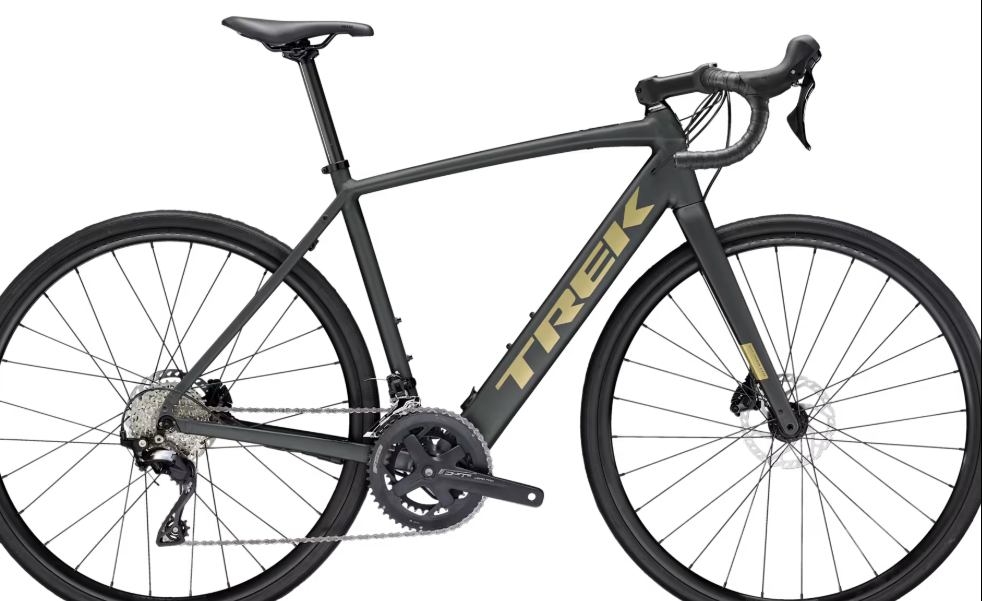

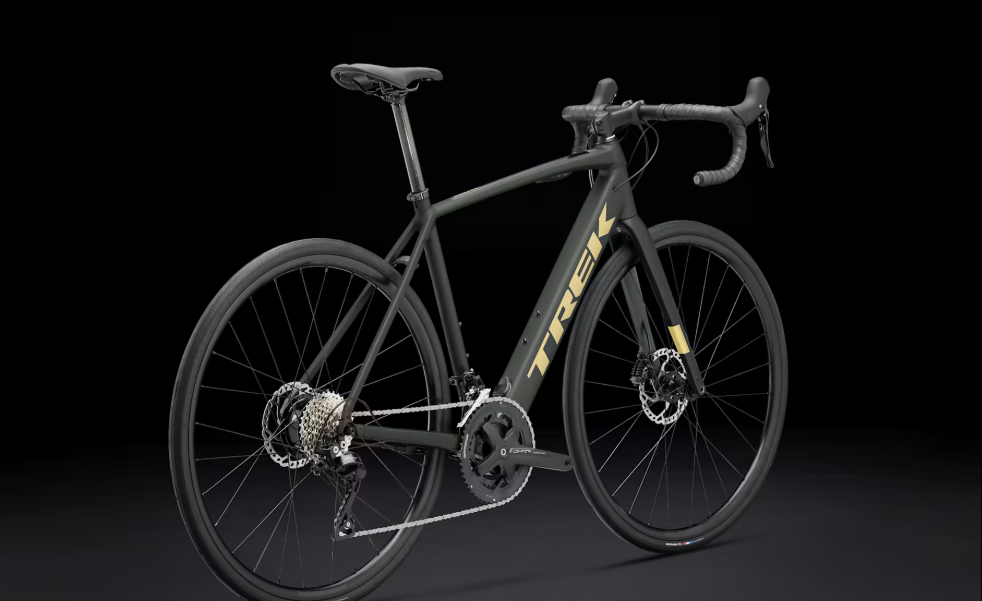

Domane+ AL 5

Vehicle Category

Electric Road Bike

Application

Road riding, training, group rides, hilly terrain

Starting Price (2025)

$3,499.97 USD (sale price)

Color Options

Matte Lithium Grey, Blue

Sizes

49, 52, 54, 56, 58, 61

Specification

Details

Frame

Alpha Aluminum, internal battery, internal cable routing, flat mount disc, rack and mudguard mounts, 142x12mm thru axle

Fork

Domane+ AL carbon, tapered alloy steerer, internal brake routing, flat mount disc, 12x100mm thru axle

Drivetrain Compatibility

Shimano 105 R7000, 2x11-speed

Dropouts

142x12mm thru axle (R), 12x100mm thru axle (F)

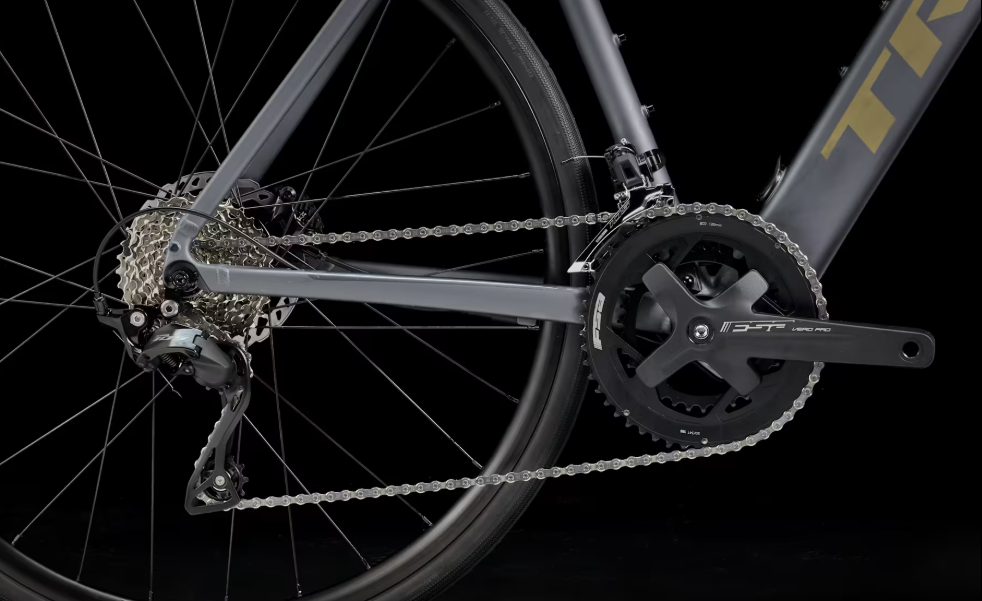

Crank

Shimano 105 R7000, 50/34T, length: 165mm (49-52), 170mm (54-56), 172.5mm (58-61)

Chain

Shimano HG601, 11-speed

Rear Derailleur

Shimano 105 R7000, 11-speed

Front Derailleur

Shimano 105 R7000, braze-on

Shifters

Shimano 105 R7000, 11-speed

Cassette

Shimano HG700, 11-34T, 11-speed

Specification

Details

Seating

Bontrager Verse Comp, steel rails, 145mm width

Fuel Type

Electric (250Wh battery)

Cargo Capacity

Rack and mudguard mounts

Wheels/Tyres

Bontrager Paradigm SL, 700x32c

Wheel Size

700c

Brakes

Shimano 105 hydraulic disc, flat mount

Brake Levers

Shimano 105 hydraulic disc

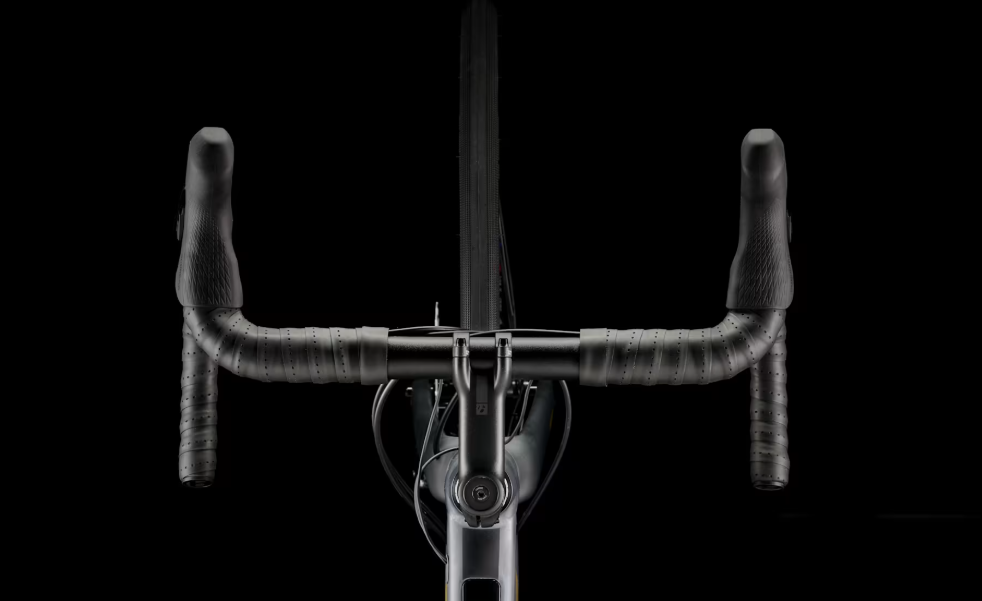

Handlebar

Bontrager Comp VR-C, 31.8mm

Stem

Bontrager Elite, 31.8mm, Blendr compatible

Headset

Integrated, 1-1/8" top, 1.5" lower

Saddle

Bontrager Verse Comp, steel rails, 145mm width

Seatpost

Bontrager Comp, 27.2mm, 8mm offset

Seatpost Clamp

Integrated

Grips

Bontrager Supertack Comp tape

Front Hub

Bontrager alloy, sealed bearing

Rear Hub

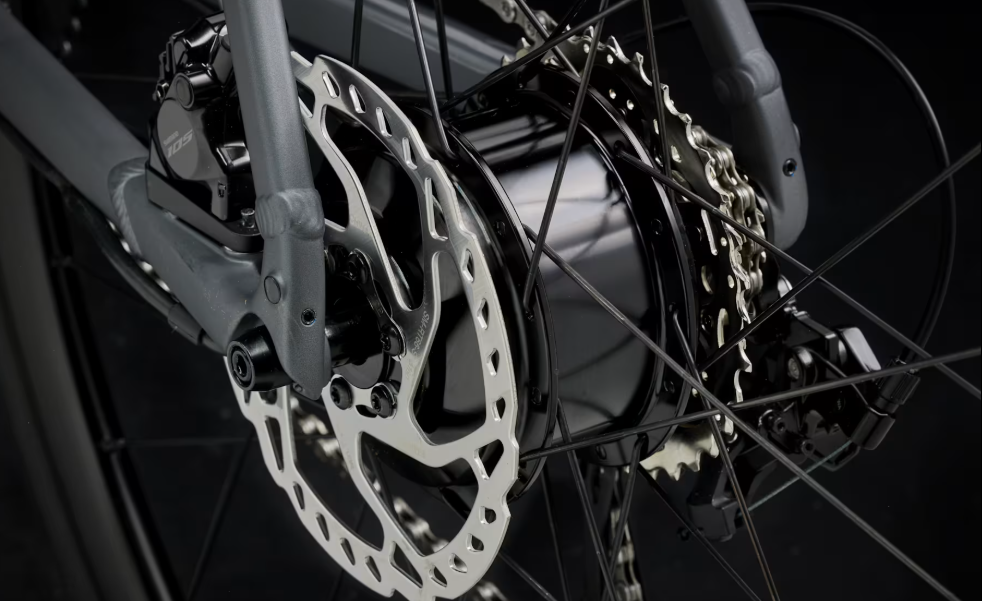

HyDrive rear hub motor, sealed bearing

Rims

Bontrager Paradigm SL, double wall

Spokes

Stainless steel, 14g

Exterior Features

Rack and mudguard mounts, internal battery, HyDrive system

Drive Unit

HyDrive rear hub motor, 40 Nm torque

Battery

250Wh, integrated in down tube

Charger

4A fast charger

Display

HyDrive 4G LCD display with Bluetooth/ANT+ connectivity

Certifications

UL 2849 certified by ACT Labs LLC
