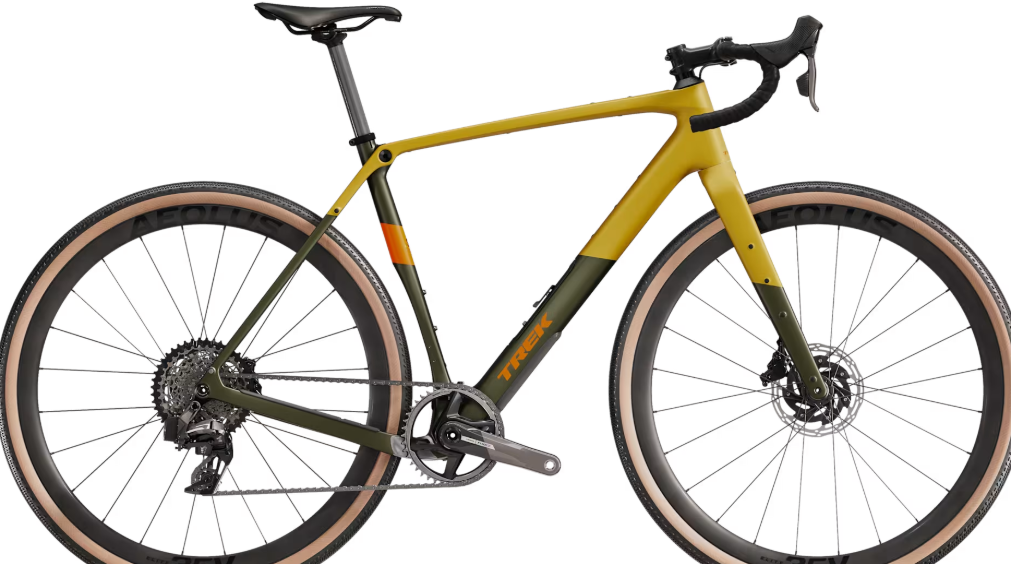

2025 Trek Checkpoint SL 7 AXS Gen 3 – Carbon Gravel Bike
Specifications
|
Specification |
Details |
|
Model |
Checkpoint SL 7 AXS Gen 3 |
|
Vehicle Category |
Carbon Gravel Bike |
|
Application |
Gravel riding, bikepacking, adventure cycling |
|
Starting Price (2025) |
$5,999.97 USD (sale), $6,249.99 USD (original) |
|
Color Options |
Baja Yellow Matte/Drab Olive Matte, Bronze/Grey, Gold/Greendark |
|
Sizes |
XS, S, M, ML, L, XL |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
500 Series OCLV Carbon, IsoSpeed, internal cable routing, downtube storage, 12x142mm thru axle, Gravel Endurance geometry, rack and fender mounts, 50mm tire clearance |
|
Fork |
Checkpoint Carbon, tapered carbon steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle |
|
Drivetrain Compatibility |
SRAM Force AXS D2, 1x12-speed, wireless |
|
Dropouts |
12x142mm thru axle (R), 12x100mm thru axle (F) |
|
Drivetrain Compatibility |
SRAM Force AXS D2, 1x12-speed, wireless |
|
Dropouts |
12x142mm thru axle (R), 12x100mm thru axle (F) |
|
Crank |
SRAM Force AXS D2, 40T, 165mm (XS), 170mm (S, M), 172.5mm (ML, L), 175mm (XL) |
|
Chain |
SRAM Force D2, 12-speed |
|
Rear Derailleur |
SRAM Force AXS D2, wireless, 36T max cog |
|
Shifters |
SRAM Force AXS D2, wireless, 12-speed |
|
Cassette |
SRAM XG-1275, 10-44T, 12-speed |
Components & Features
|
Specification |
Details |
|
Seating |
Bontrager Verse Short, 145mm width |
|
Cargo Capacity |
Downtube storage, rack and fender mounts, multiple bottle cage mounts, frame bag compatibility |
|
Wheels/Tyres |
Bontrager Paradigm Comp 25, tubeless ready, 25mm width, Bontrager Girona RSL GRX, 700x40c (50mm max clearance) |
|
Wheel Size |
700c |
|
Brakes |
SRAM Force AXS D2, hydraulic disc, flat mount, 160mm rotor (F, R) |
|
Brake Levers |
SRAM Force AXS D2, hydraulic |
|
Handlebar |
Bontrager Pro VR-C, OCLV Carbon, 38cm (XS), 40cm (S), 42cm (M, ML), 44cm (L, XL) |
|
Stem |
Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 70mm (XS, S), 80mm (M), 90mm (ML, L), 100mm (XL) |
|
Headset |
FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom |
|
Saddle |
Bontrager Verse Short, 145mm width |
|
Seatpost |
Bontrager Pro, OCLV Carbon, 31.6mm, 8mm offset, 330mm length (XS, S), 400mm length (M, ML, L, XL) |
|
Seatpost Clamp |
Integrated, internal |
|
Grips |
Bontrager Supertack Perf tape |
|
Front Hub |
Bontrager alloy, sealed bearing, 6-bolt, 12x100mm thru axle |
|
Rear Hub |
Bontrager alloy, sealed bearing, 6-bolt, SRAM XD-R freehub, 12x142mm thru axle |
|
Rims |
Bontrager Paradigm Comp 25, tubeless ready, 25mm width, Presta valve |
|
Spokes |
14g stainless steel |
|
Exterior Features |
IsoSpeed decoupler, internal cable routing, downtube storage, rack and fender mounts, multiple bottle cage mounts, frame bag compatibility, 50mm tire clearance |
