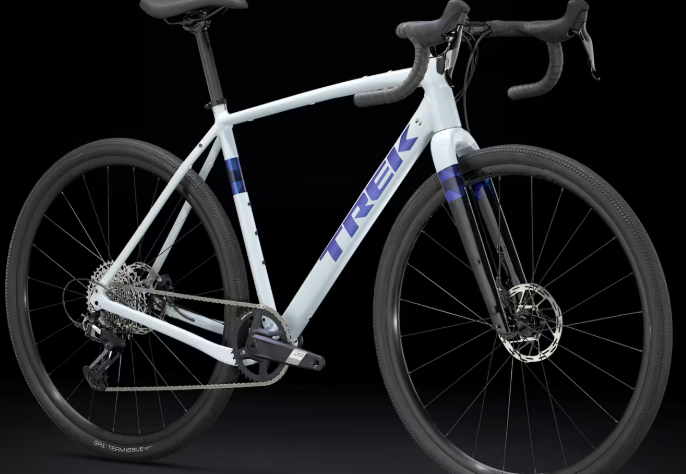

2025 Trek Checkpoint ALR 5 Gen 2 – Gravel Bike
Specifications
|
Specification |
Details |
|
Model |
Checkpoint ALR 5 Gen 2 |
|
Vehicle Category |
Gravel Bike |
|
Application |
Gravel riding, bikepacking, commuting |
|
Starting Price (2025) |
$2,099.97 USD (sale, original $2,499.99) |
|
Color Options |
Plasma Grey Pearl |
|
Sizes |
49, 52, 54, 56, 58, 61 |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |

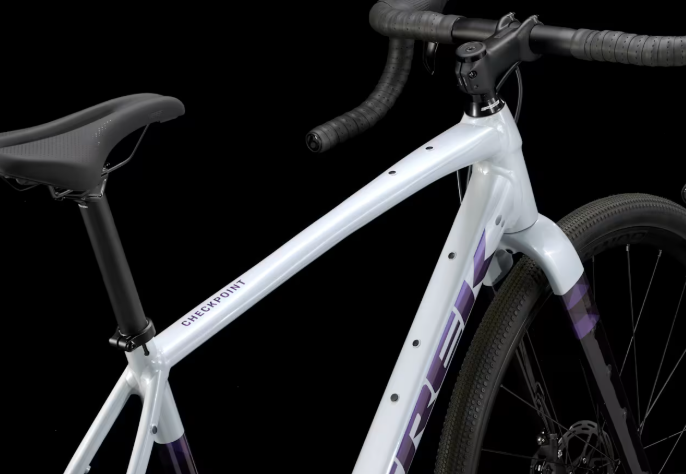

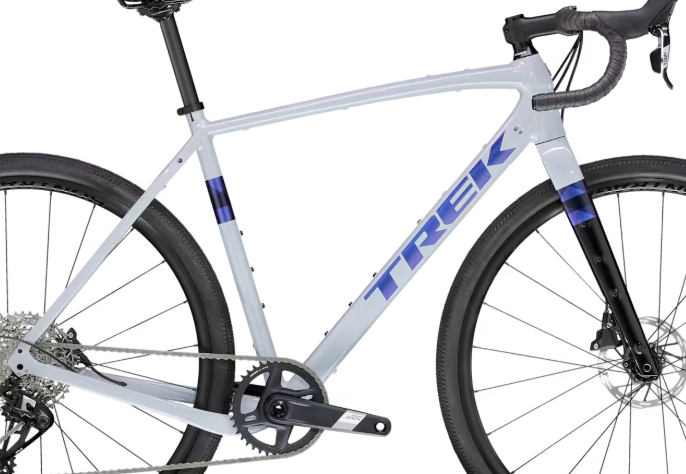

300 Series Alpha Aluminum, gravel endurance geometry, internal cable routing, rack & fender mounts, flat mount disc brake |
|
Fork |
Carbon, internal brake routing, fender mounts, rack mounts |
|
Drivetrain Compatibility |
SRAM Apex XPLR, 12-speed |
|
Dropouts |
142x12mm thru axle (R), 12x100mm thru axle (F) |
|
Crank |
SRAM Apex XPLR, 40T, length: 165mm (49-52), 170mm (54-56), 172.5mm (58-61) |
|
Chain |
SRAM Apex XPLR, 12-speed |
|
Rear Derailleur |
SRAM Apex XPLR, 12-speed |
|
Shifters |
SRAM Apex XPLR, 12-speed |
|
Cassette |
SRAM Apex XPLR XG-1271, 10-44T, 12-speed |
Components & Features
|
Specification |
Details |
|
Seating |
Bontrager Verse Comp, steel rails, width: 155mm (49-52) / 145mm (54-61) |
|
Cargo Capacity |
Rack & fender mounts, multiple bag mounts for bikepacking |
|
Wheels/Tyres |
Bontrager GR1 Team Issue, 700x42c tubeless ready |
|
Wheel Size |
700c |
|
Brakes |
SRAM Apex XPLR hydraulic disc, 160mm rotors |
|
Brake Levers |
SRAM Apex XPLR hydraulic |
|
Handlebar |
Bontrager GR Elite Gravel, alloy, 31.8mm, width: 380mm (49), 400mm (52), 420mm (54-56), 440mm (58-61) |
|
Stem |
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, length: 70mm (49-52), 80mm (54), 90mm (56), 100mm (58-61) |
|
Headset |
Integrated cartridge, 1-1/8" top, 1.5" lower |
|
Saddle |
Bontrager Verse Comp, steel rails, width: 155mm (49-52) / 145mm (54-61) |
|
Seatpost |
Bontrager Comp, 27.2mm, 8mm offset, length: 300mm (49), 330mm (52-54), 350mm (56-58), 380mm (61) |
|
Seatpost Clamp |
Knurled, quick release |
|
Grips |
Bontrager Satellite IsoZone, soft, 130mm width |
|
Front Hub |
Bontrager alloy, sealed bearing, 6-bolt disc |
|
Rear Hub |
Bontrager alloy, sealed bearing, 6-bolt disc, SRAM 12-speed freehub |
|
Rims |
Bontrager Paradigm, double wall, 21mm rim width, tubeless ready |
|
Spokes |
Stainless steel, 14g |
|
Exterior Features |
Rack & fender mounts, multiple bag mounts for bikepacking, tubeless ready wheels |
|
Weight |
9.71 kg (56cm, with TLR sealant, no tubes) |
