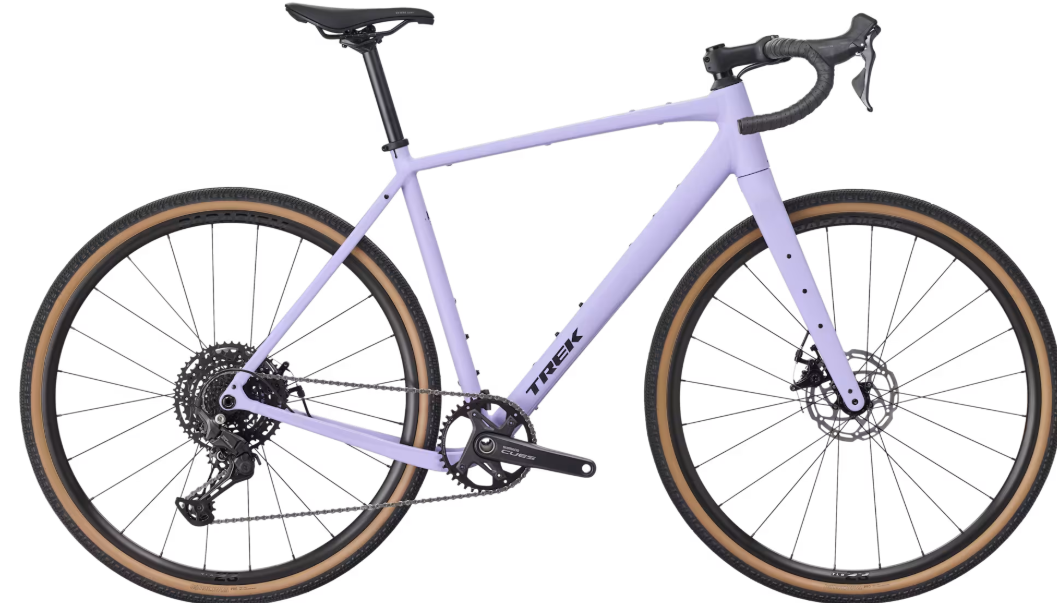

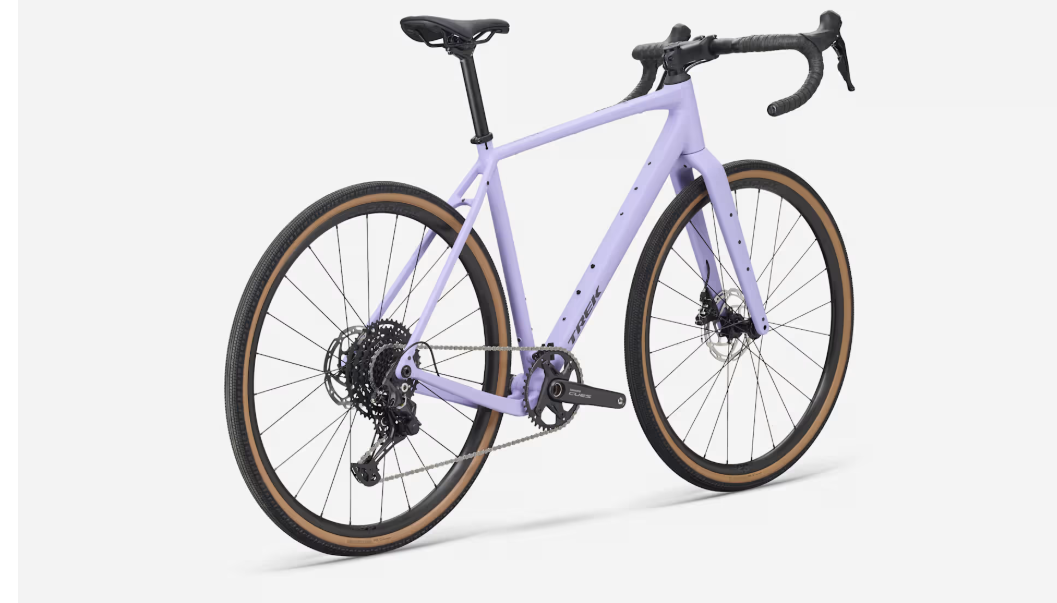

2025 Trek Checkpoint ALR 3 Gen 3 – Gravel Bike
Specifications
|
Specification |
Details |
|
Model |
Checkpoint ALR 3 Gen 3 |
|
Vehicle Category |
Gravel Bike |
|
Application |
Gravel riding, bikepacking, commuting |
|
Starting Price (2025) |
$1,599.99 USD |
|
Color Options |
Matte Lavender Haze, Dark Green/Visibility Green, Light Purple, Dark Red |
|
Sizes |
XS, S, M, ML, L, XL |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
300 Series Alpha Aluminum, gravel endurance geometry, internal cable routing, rack & fender mounts, flat mount disc brake |
|

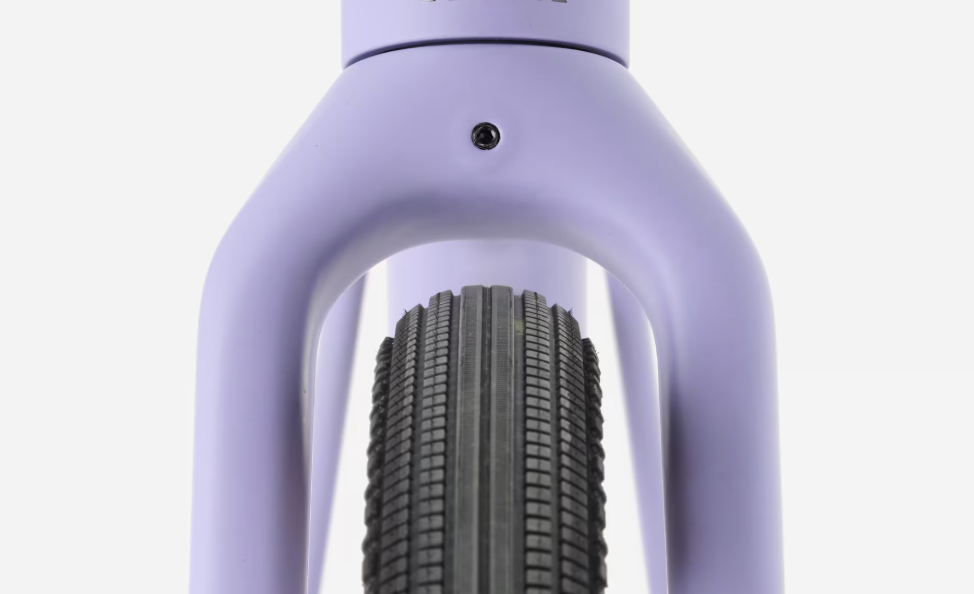

Fork |
Carbon, internal brake routing, fender mounts, rack mounts |
|

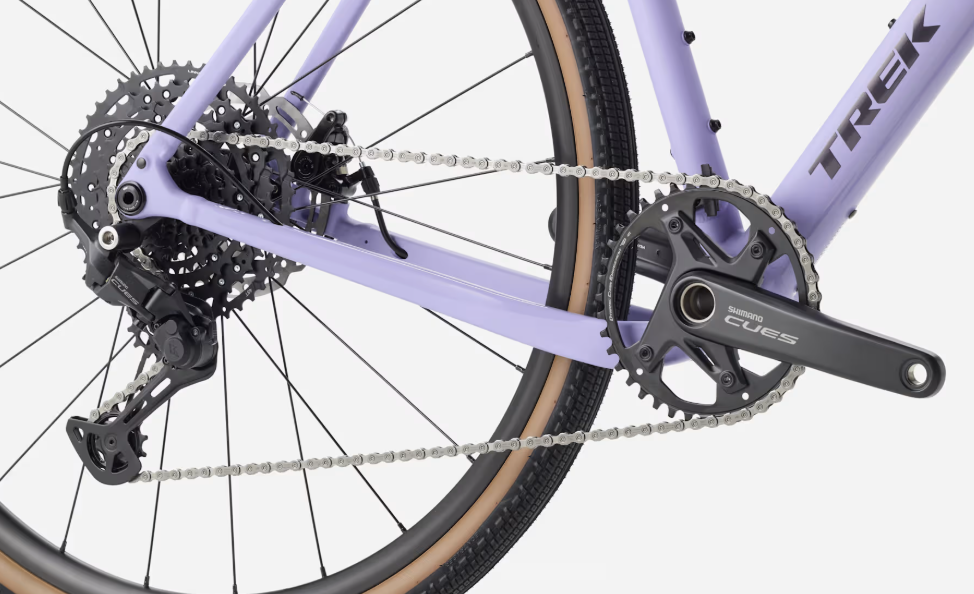

Drivetrain Compatibility |
Shimano CUES 6000, 10-speed |
|
Crank |
Shimano CUES U6000, 46/30T |
|
Chain |
Shimano CUES CN-L610, 10-speed |
|
Rear Derailleur |
Shimano CUES RD-U6000, 10-speed |
|
Front Derailleur |
Shimano CUES FD-U6000, 2-speed |
|
Shifters |
Shimano CUES SL-U6000, 10-speed |
|
Cassette |
Shimano CUES CS-LG600-10, 11-36T, 10-speed |
Components & Features
|
Specification |
Details |
|
Seating |
Bontrager Verse Comp, steel rails, width: 155mm (XS-S) / 145mm (M-XL) |
|
Cargo Capacity |
Rack & fender mounts, multiple bag mounts for bikepacking |
|
Wheels/Tyres |
Bontrager GR1 Team Issue, 700x40c tubeless ready |
|
Wheel Size |
700c |
|
Brakes |
Tektro MD-C550 mechanical disc, 160mm rotor |
|
Brake Levers |
Integrated with shifters |
|

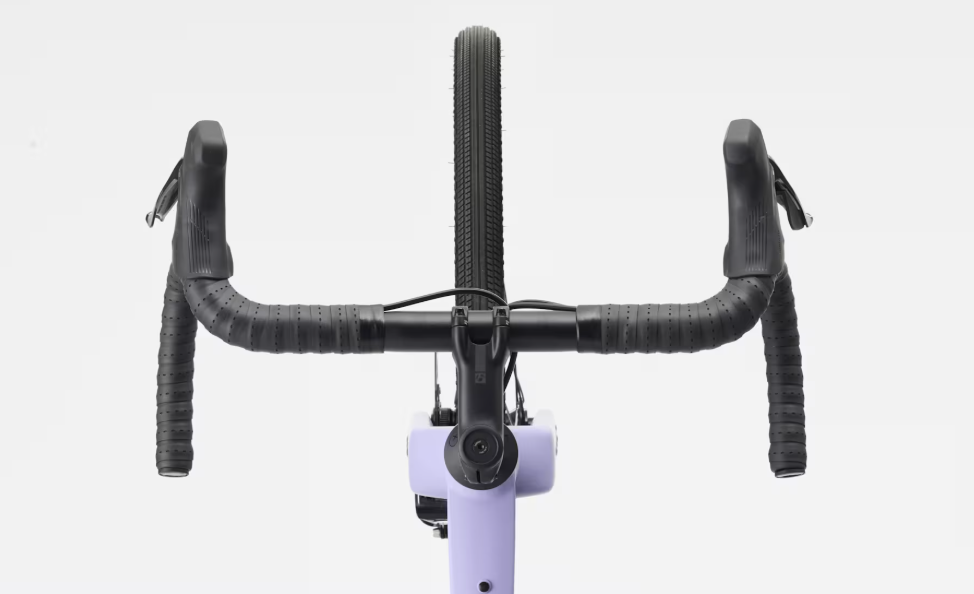

Handlebar |
Bontrager R1 Gravel, 31.8mm, width: 380mm (XS), 400mm (S), 420mm (M), 440mm (ML-L), 460mm (XL) |
|
Stem |
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, length: 70mm (XS-S), 80mm (M), 90mm (ML), 100mm (L-XL) |
|
Headset |
Integrated cartridge, 1-1/8" top, 1.5" lower |
|
Saddle |
Bontrager Verse Comp, steel rails, width: 155mm (XS-S) / 145mm (M-XL) |
|
Seatpost |
Bontrager Comp, 27.2mm, 8mm offset, length: 300mm (XS), 330mm (S-M), 350mm (ML-L), 380mm (XL) |
|
Seatpost Clamp |
Knurled, quick release |
|
Grips |
Bontrager Satellite IsoZone, soft, 130mm width |
|
Front Hub |
Bontrager alloy, sealed bearing, 6-bolt disc |
|
Rear Hub |
Bontrager alloy, sealed bearing, 6-bolt disc, Shimano 10-speed freehub |
|
Rims |
Bontrager Paradigm 23, double wall, 23mm rim width, tubeless ready |
|
Spokes |
Stainless steel, 14g |
|
Exterior Features |
Rack & fender mounts, multiple bag mounts for bikepacking, tubeless ready wheels |
|
Weight |
10.41 kg (ML, with TLR sealant, no tubes) |
