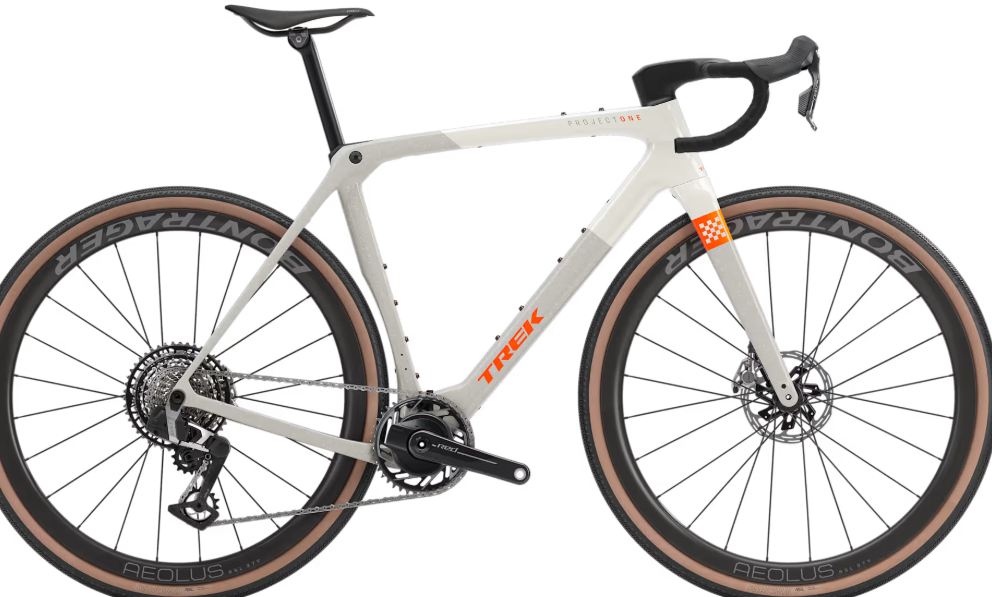

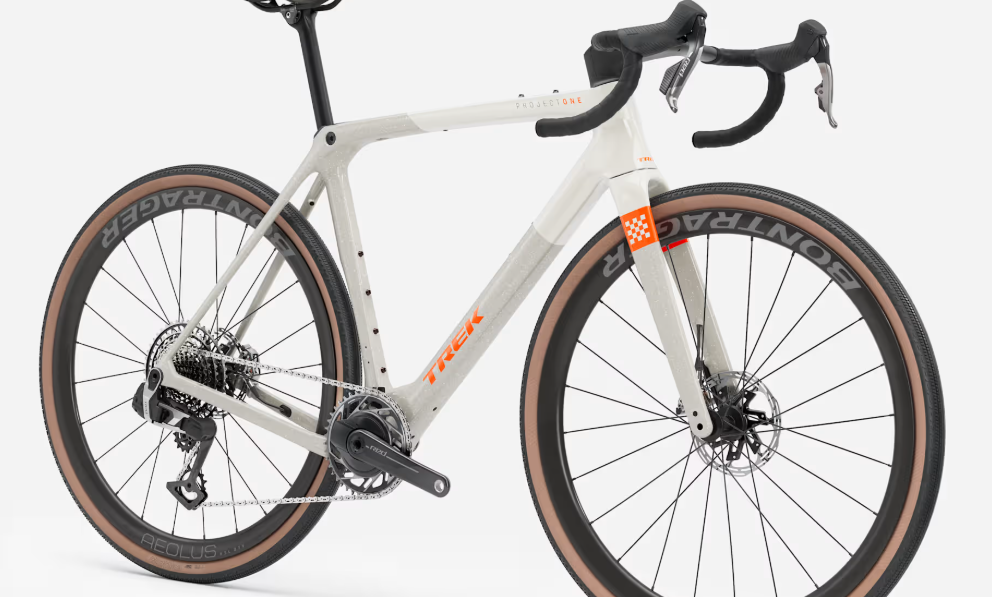

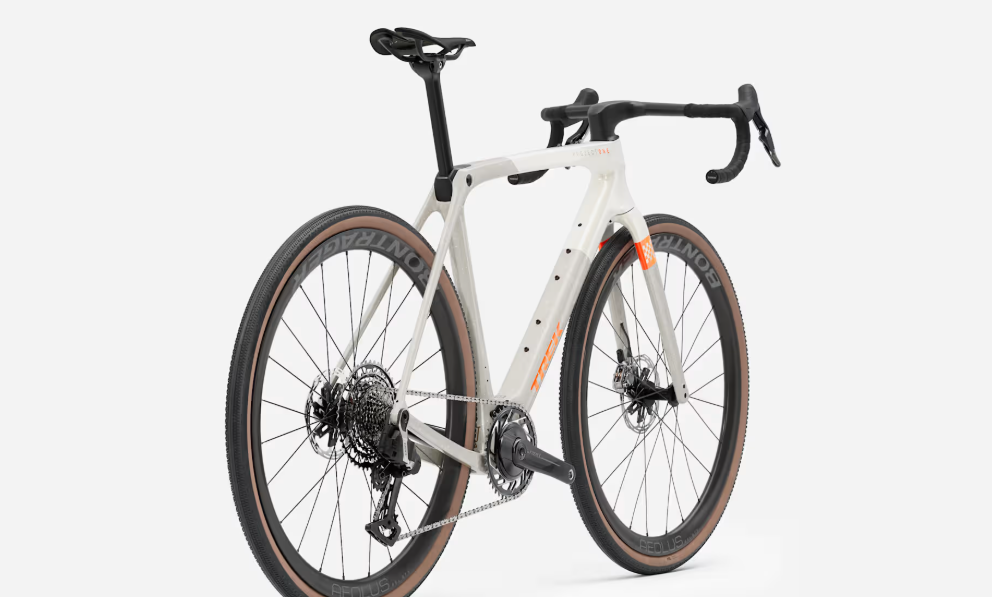

2025 Trek Checkmate SLR 9 AXS – Gravel Bike
Specifications
|
Specification |
Details |
|
Model |
Checkmate SLR 9 AXS |
|
Vehicle Category |
Gravel Bike |
|
Application |
Gravel racing, mixed-terrain riding |
|
Starting Price (2025) |
$11,999.99 USD |
|
Color Options |
Era White/Buff Beige, Gloss Trek Black/Matte Carbon Smoke, Nautical Navy/Teal, Matte Trek Black/Matte Deep Smoke |
|
Sizes |
XS, S, M, ML, L, XL |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
800 Series OCLV Carbon, IsoSpeed, Full System Foil tube shapes, internal cable routing, 142x12mm thru axle |
|

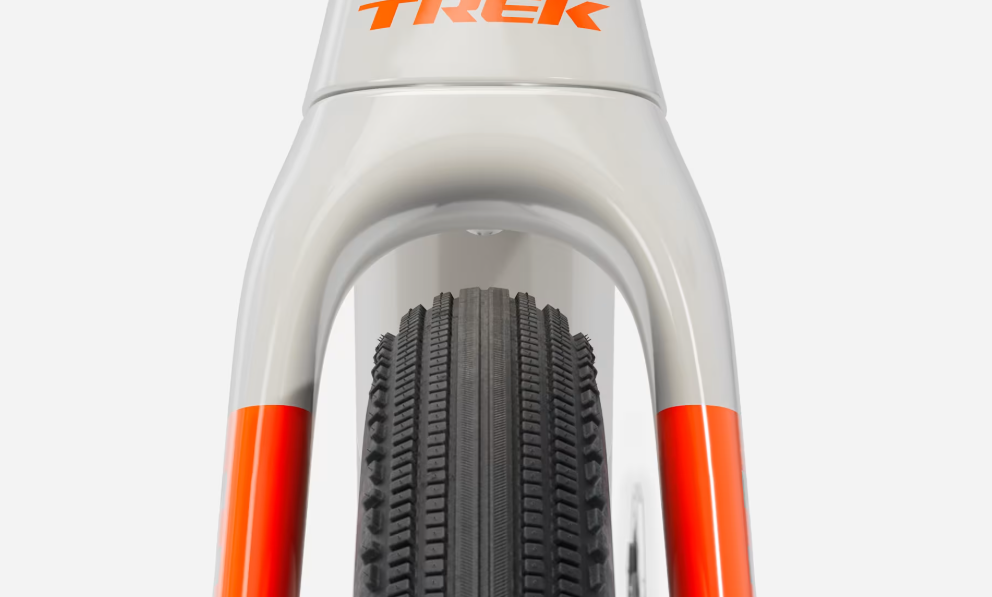

Fork |
Checkmate carbon, 100x12mm thru axle |
|
Drivetrain Compatibility |
SRAM RED XPLR eTAP AXS, 1x13 |
|
Dropouts |
100x12mm thru axle (F), 142x12mm thru axle (R) |
|

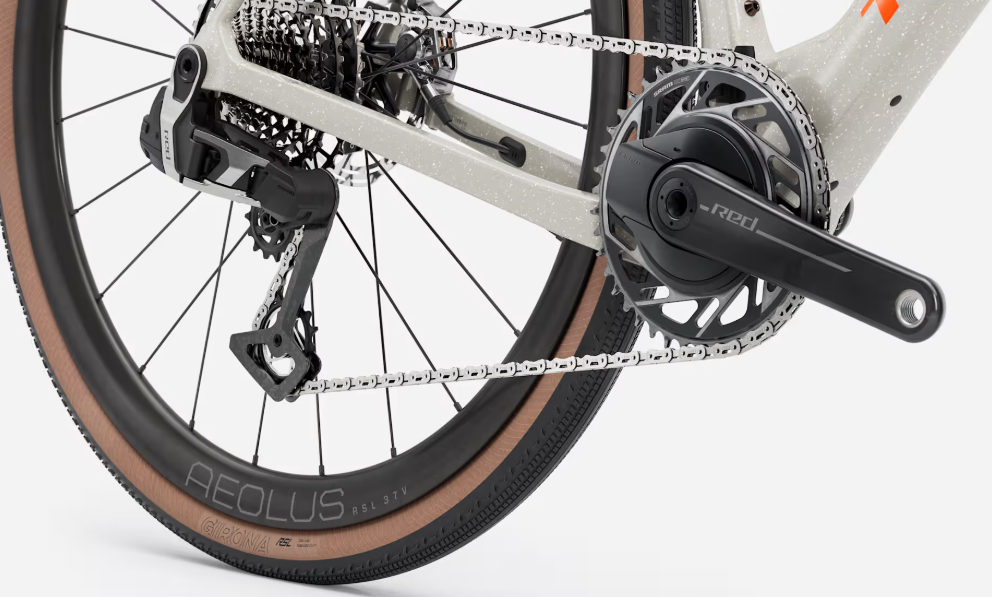

Crank |
SRAM RED 1 AXS, 40T, 165mm (XS), 170mm (S, M), 172.5mm (ML, L), 175mm (XL) |
|
Chain |
SRAM RED, 13-speed |
|
Rear Derailleur |
SRAM RED XPLR eTAP AXS, 44T max cog |
|
Front Derailleur |
N/A (1x drivetrain) |
|
Shifters |
SRAM RED eTAP AXS HRD, 13-speed |
|
Cassette |
SRAM XPLR XG-1391, 10-44, 13-speed |
Components & Features
|
Specification |
Details |
|
Seating |
Bontrager Hilo Pro Carbon |
|
Cargo Capacity |
Mounts for race day gear, capacity for 2 water bottles and nutrition storage |
|
Wheels/Tyres |
Bontrager Aeolus RSL 37V, OCLV Carbon, tubeless ready, 700x40mm |
|
Wheel Size |
700c |
|
Brakes |
SRAM RED AXS hydraulic disc, 160mm rotors |
|
Brake Levers |
SRAM RED eTAP AXS HRD |
|
Handlebar |
Bontrager Pro IsoCore VR-CF, OCLV Carbon, 38cm (XS), 40cm (S, M), 42cm (ML, L), 44cm (XL) |
|
Stem |
Bontrager Pro, 80mm (XS, S), 90mm (M, ML), 100mm (L), 110mm (XL) |
|
Headset |
FSA IS-2, 1-1/8in top, 1.5in bottom, sealed cartridge bearing |
|
Saddle |
Bontrager Hilo Pro Carbon |
|
Seatpost |
Bontrager carbon, 20mm offset |
|
Grips |
Bontrager Supertack Perf tape |
|
Front Hub |
Bontrager alloy, sealed bearing, 6-bolt, 100x12mm thru axle |
|
Rear Hub |
Bontrager alloy, sealed bearing, 6-bolt, SRAM XDR freehub, 142x12mm thru axle |
|
Rims |
Bontrager Aeolus RSL 37V, OCLV Carbon, tubeless ready, 37mm depth |
|
Spokes |
14g stainless steel, black |
|
Exterior Features |
IsoSpeed technology, Full System Foil tube shapes, internal cable routing, mounts for race day gear, Gravel Race geometry |
|
Weight |
7.55 kg / 16.65 lbs (size ML, with TLR sealant, no tubes) |
